Tool management

11.10 Filtering the tool management lists

Turning

Operating Manual, 03/2013, 6FC5398-8CP40-3BA1

617

Procedure

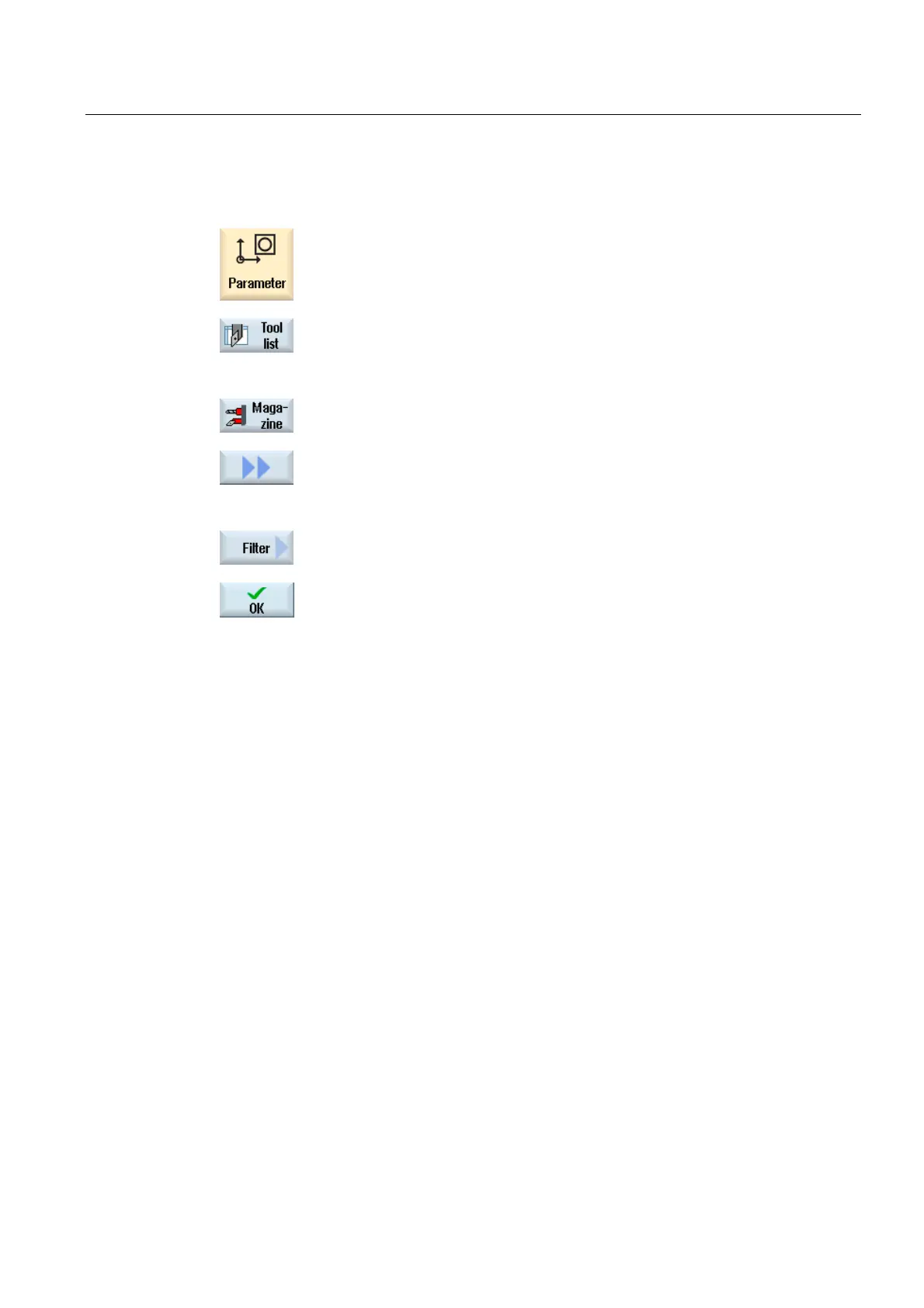

1. Select the "Parameter" operating area.

...

2. Press the "Tool list", "Tool wear" or "Magazine" softkey.

...

3. Press the ">>" and "Filter" softkeys.

The "Filter" window opens.

4. Activate the required filter criterion and press the "OK" softkey.

The tools that correspond to the selection criteria are displayed in the

list.

The active filter is displayed in the window header.
