Creating a ShopTurn program
8.2 Program views
Turning
236 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
Work plan
The work plan in the editor provides an overview of the individual machining steps of a
program.

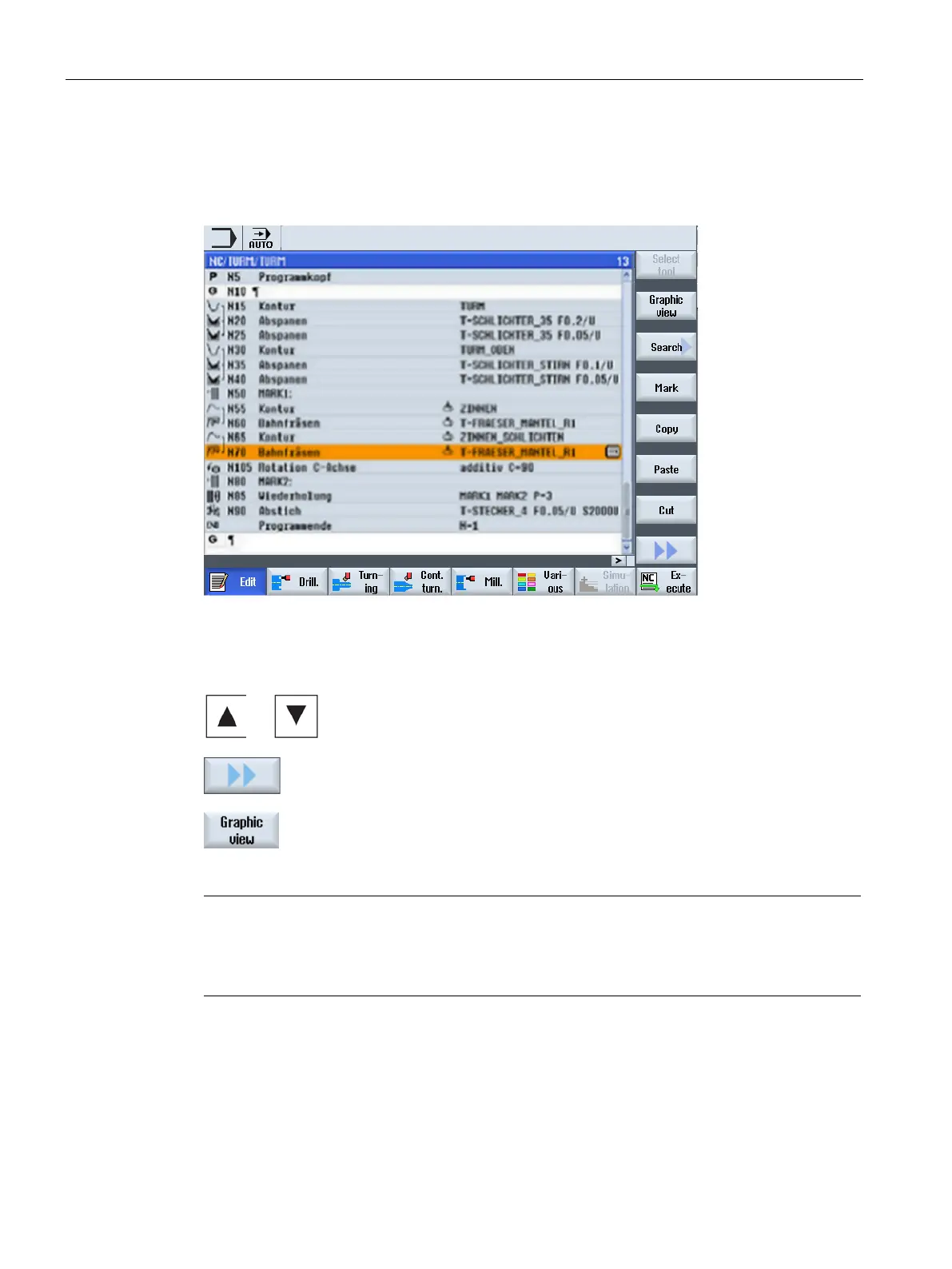

Figure 8-1 Machining schedule of a ShopTurn program
...
1.
You can move between the program blocks in the work plan by
pressing the <Cursor up> and <Cursor down> keys.
2.
Press the ">>" and "Graphic view" softkeys to display the graphic
view.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switcho
ver between the help
screen and the graphic view.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
