Creating a ShopTurn program
8.2 Program views
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
237
Graphic view
The graphic view shows the contour of the workpiece as a dynamic graphic with broken
lines. The program block selected in the work plan is highlighted in color in the graphic view.

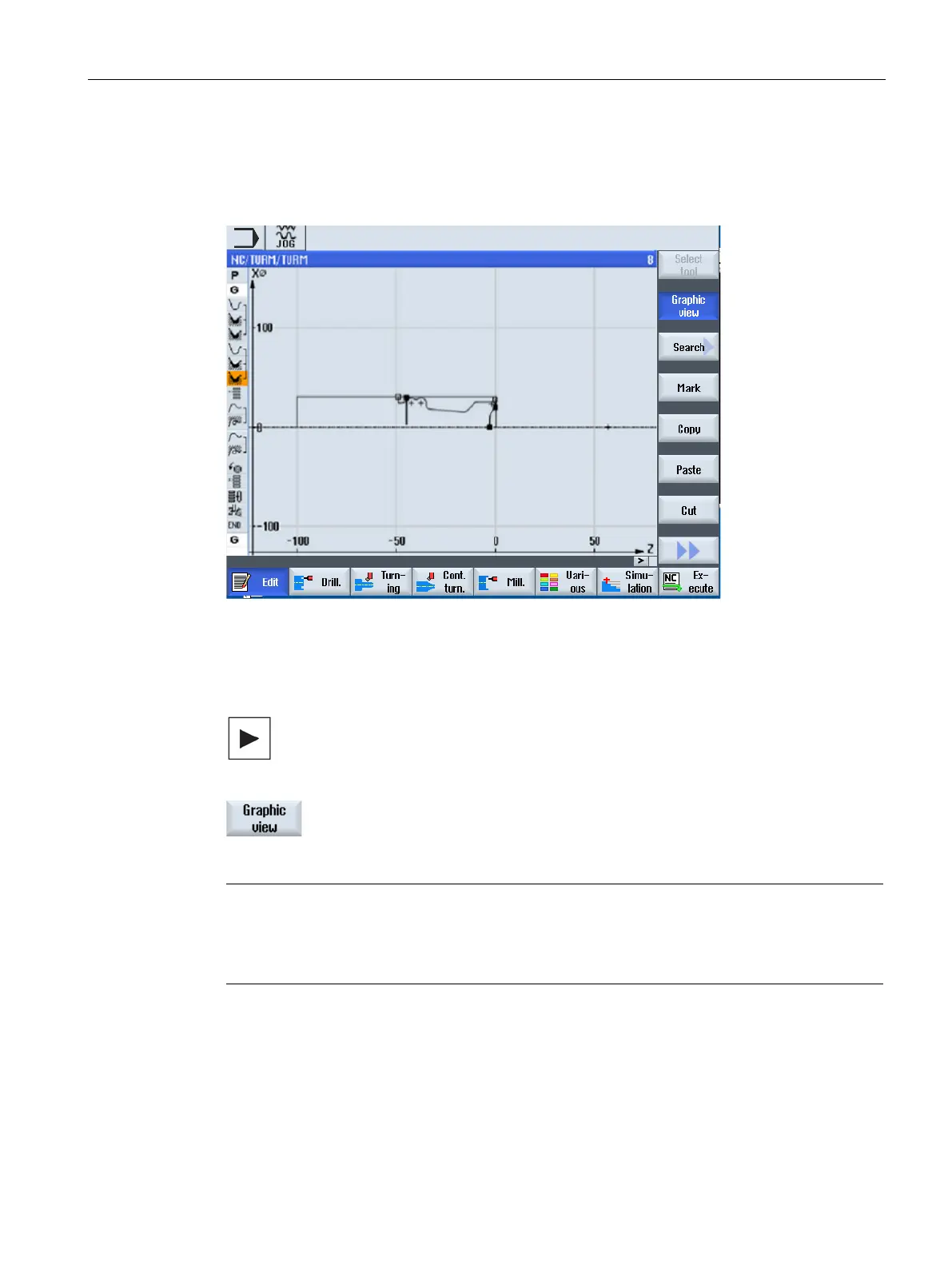

Figure 8-2 Graphic view of a ShopTurn program
Parameter screen with help display and graphic view
1.
Press the <Cursor right> key to open a selected program block or
cycle in the work plan.
The associated parameter screen with help display is then di
s-
played.
2.
Press the "Graphic view" softkey.
The graphic view of the selected program block is displayed.
Note
Switching between the help screen and the graphic view
The key combination <CTRL> + <G> is also available for the switchover between
the help
screen and the graphic view.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
