Siemens SINUMERIK 828D User Manual

Creating a ShopTurn program
8.18 Example: Standard machining
Turning
276 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
6.7
Z
0
abs
6.8
X
60
abs
Z
0
abs
7.
Press the "Ac
cept" softkey.
It is only necessary to enter the blank contour when using a pre
-
machined blank.

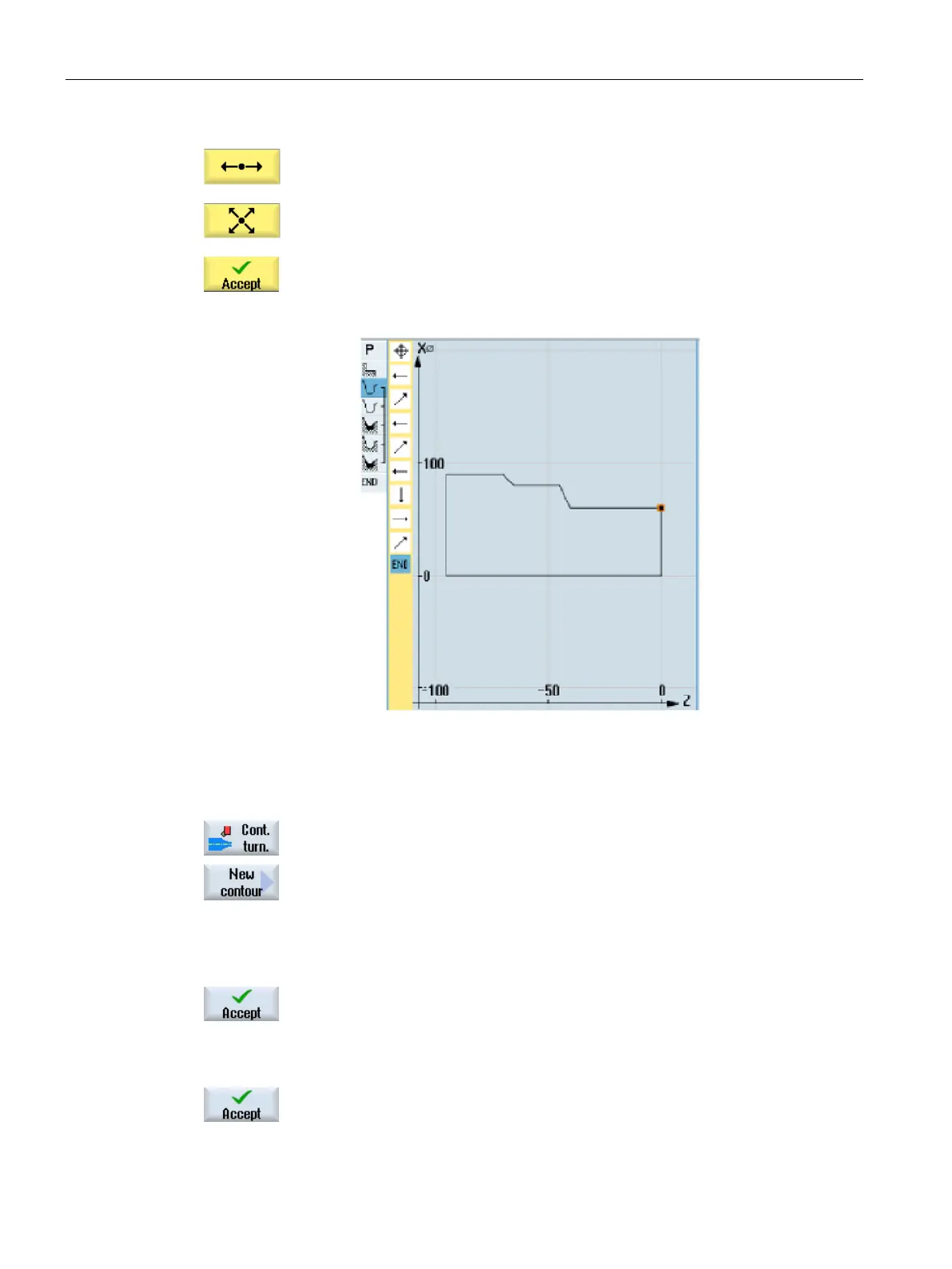

Blank contour
4. Input of finished part with contour computer
1.
Press the "Cont. turn." and "New contour" softkeys.
The "New Contour" input window opens.
2.
Enter the c
ontour name (in this case: Cont_2).
The contour calculated as NC code is written as internal subprogram
between a start and an end marker containing the entered name.
3.
Press the "Accept" softkey.
The "Starting point" entry field opens.
4.
Specify the contour starting point of the contour.
X
0
abs
Z
0
abs
5.
Press the "Accept" softkey.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
