Siemens SINUMERIK 828D User Manual

Creating a ShopTurn program
8.18 Example: Standard machining
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
285
12. Drilling
1.

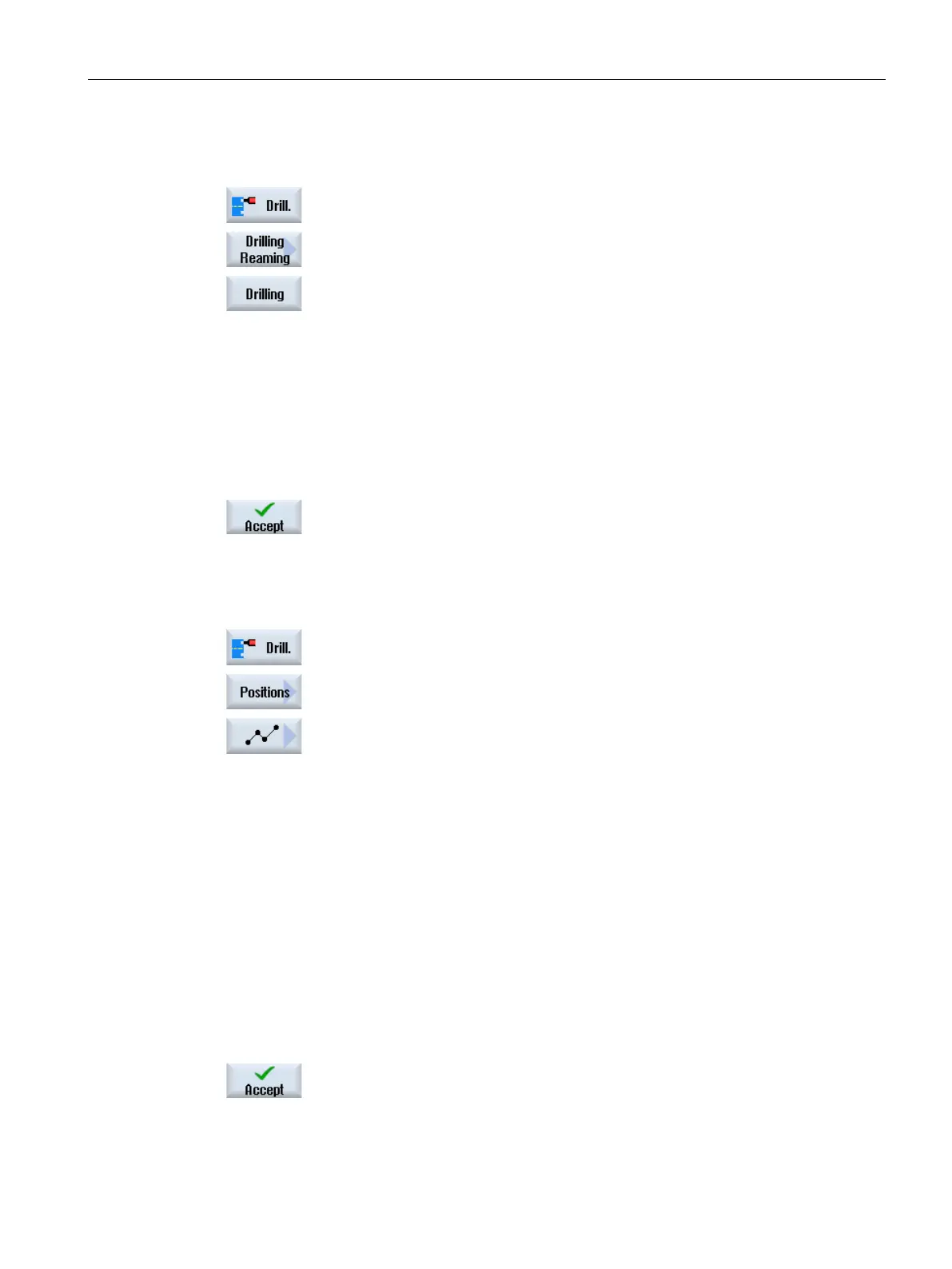

Press the "Drilling"
, "Drilling reaming" and "Drilling" softkeys.
The "Drilling" input window opens.
2.
Enter the following technology parameters:
T Drill_D5
D1
F 0.1 mm/rev
V 50 m/min
3.
Enter the following parameters:
Machined surface
Face C
Drilling depth
Tip
Z1
10
inc
DT
0
s
4.
Press the "Accept" softkey.
13. Positioning
1.
Press the "Drilling", "Posit
ions" and "Freely Programmable Positions"
softkeys.
The "Positions" input window opens.
2.
Enter the following parameters:
Machined surface
Face C
Coordinate system
Polar
Z0
0
abs
C0
0
abs
L0
16
abs
C1
90
abs
L1
16
abs
C2
180
abs
L2
16
abs
C3
270
abs
L3
16
abs
3.
Press the "Accept" softkey.
