Introduction
2.2 Operator panel fronts
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
35

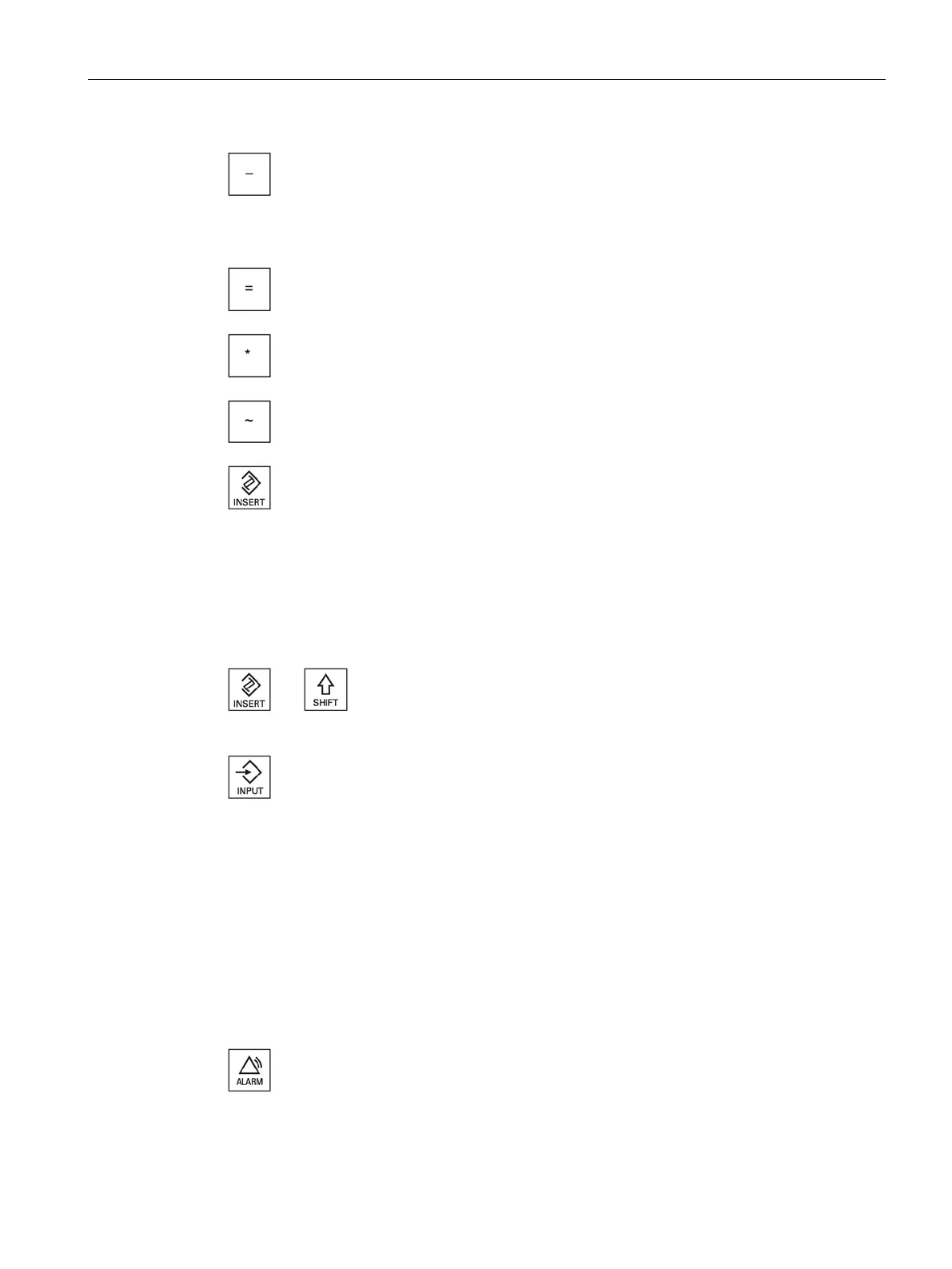

<Minus>
•
Closes a directory which contains the element.
•
Reduces the size of the graphic view for simulation and
traces.
<Equals>
Opens the calculator in the entry fields.
<Asterisk>
Opens a directory with all of the subdirectories.
<Tilde>
Changes the sign of a number between plus and minus.
<INSERT>
•
Opens an editing window in the insert mode. Pressing the
key again, exits the window and the entries are undone.
•
Opens a selection box and shows the selection possibilities.
•
In the machining step program, enters an empty line for G
code.
•
Changes into the double editor or into the multi-
channel view
from the edit mode into the operating mode. You can return
to the edit mode by pressing the key again.
+
<INSERT> + <SHIFT>
For G code programming, for a cycle call
activates or deac-
tivates the edit mode.
<INPUT>
•
Completes input of a value in the entry field.
•
Opens a directory or a program.
•
Inserts an empty program block if the cursor is positioned at
the end of a program block.
•
Inserts a character to select a new line and the program
block is split up into two parts.
•
In the G code, inserts a new line after the program block.
•
In the machining step program, inserts a new line for G code
e
•
Changes into the double editor or into the multi-
channel view
from the edit mode into the operating mode. You can return
to the edit mode by pressing the key again.
<ALARM> - only OP 010 and OP 010C
Calls the "Diagnosis" operating area.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
