Siemens SINUMERIK 828D User Manual

Introduction
2.2 Operator panel fronts
Turning
34 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

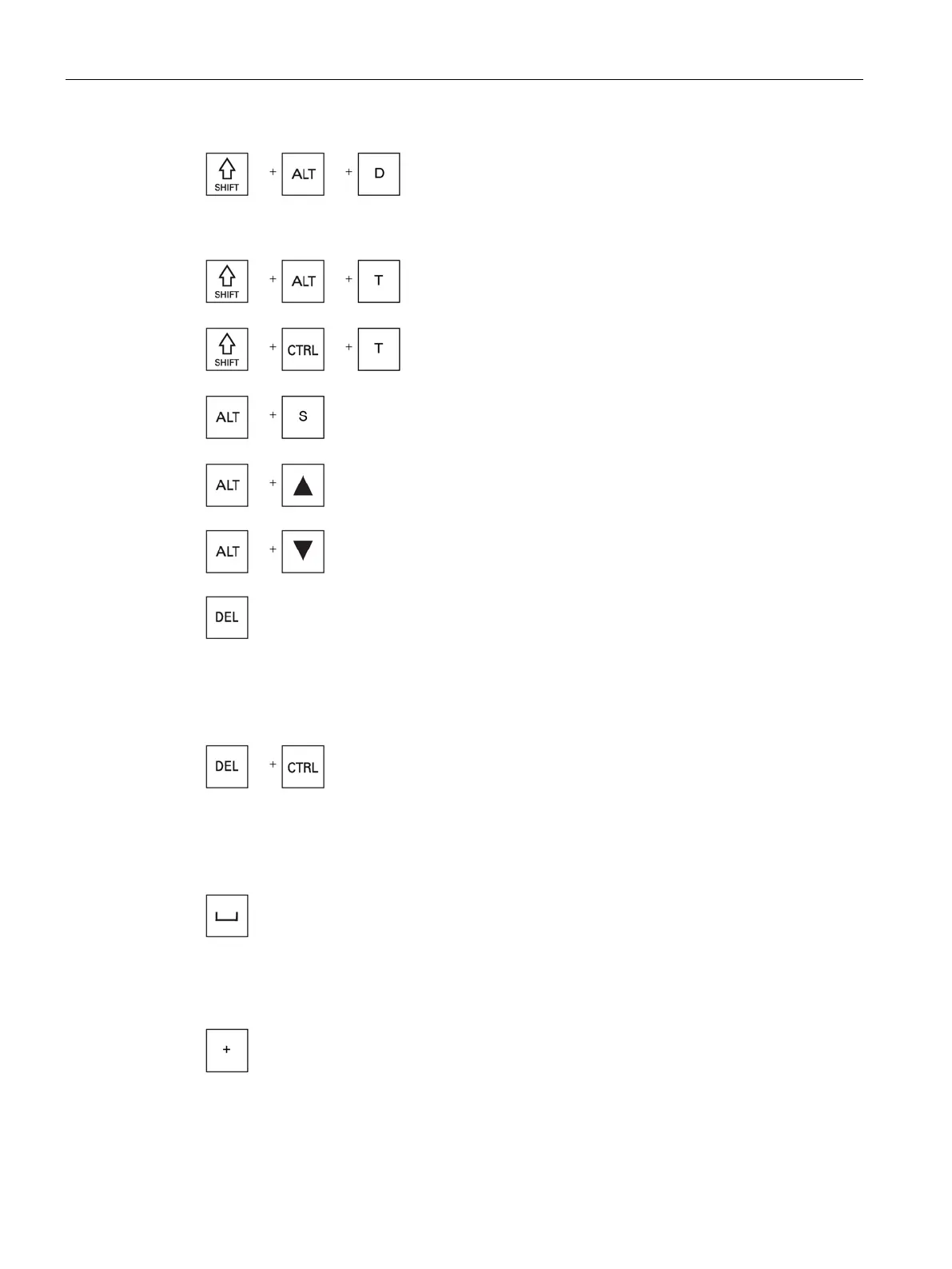

<SHIFT> + <ALT> + <D>
Backs up the log files on the USB
-FlashDrive. If a USB-
FlashDrive is not inser
ted, then the files are backed-up in the
manufacturer's area of the CF card.
<SHIFT> + <ALT> + <T>
Starts "HMI Trace".
<SHIFT> + <ALT> + <T>
Exi
ts "HMI Trace".
<ALT> + <S>
Opens the editor to enter Asian characters.
<ALT> + <Cursor up>
Moves the block start or block end up in the editor.
<ALT> + <Cursor down>
Moves the block start or block end down in the editor.
<DEL>
•
Editing box
Deletes the first character to the right of the cursor.
•
Navigation
Deletes all characters.
<DEL> + <CTRL>
•
Editing box
Deletes the first word to the right of the cursor.
•
Navigation
Deletes all characters.
<Spacebar>
•
Editing box
Inserts a space.
•
Switches between several specified options in selection lists
and in selection boxes.
<Plus>
•
Opens a directory which contains the element.
•
Increases the size of the graphic view for simulation and
traces.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
