Programming technology functions (cycles)
9.4 Milling
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
457

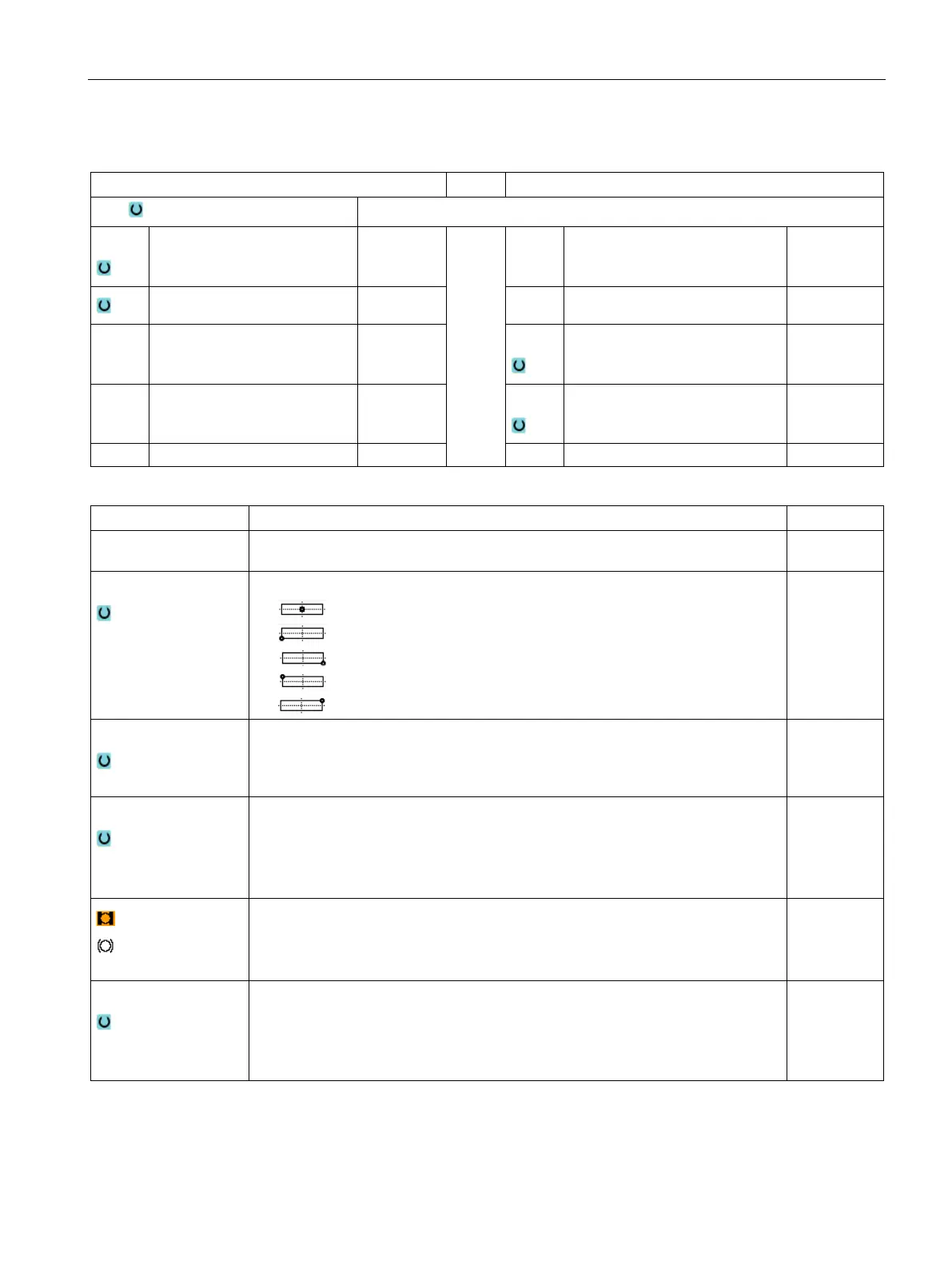

Parameters in the "Input complete" mode
G code program parameters
ShopTurn program parameters
Input
• Complete
PL
Machining plane T Tool name
Milling direction D Cutting edge number
RP Retraction plane mm F
Feedrate mm/min
mm/tooth
SC Safety clearance mm S / V
Spindle speed or constant cut-
ting rate
rpm
m/min
F Feedrate *
FZ
Depth infeed rate (only for ∇ and ∇∇∇) *
Reference point
(only for G code)
The following different reference point positions can be selected:
• (center)
•
(bottom left)
•
(bottom right)
•
(top left)
•
(top right)
Machining surface
• Face C
• Face Y
• Peripheral surface Y
Position
(only for ShopTurn)
• At the front (face)
• At the rear (face)
• Outside (peripheral surface)
• Inside (peripheral surface)
Clamp/release spindle (only for end face Y/peripheral surface Y)
The function must be set up by the machine manufacturer.
Machining
The following machining operations can be selected:
• ∇ (roughing)
• ∇∇∇ (finishing)
• Chamfering
