Programming technology functions (cycles)
9.4 Milling
Turning
476 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

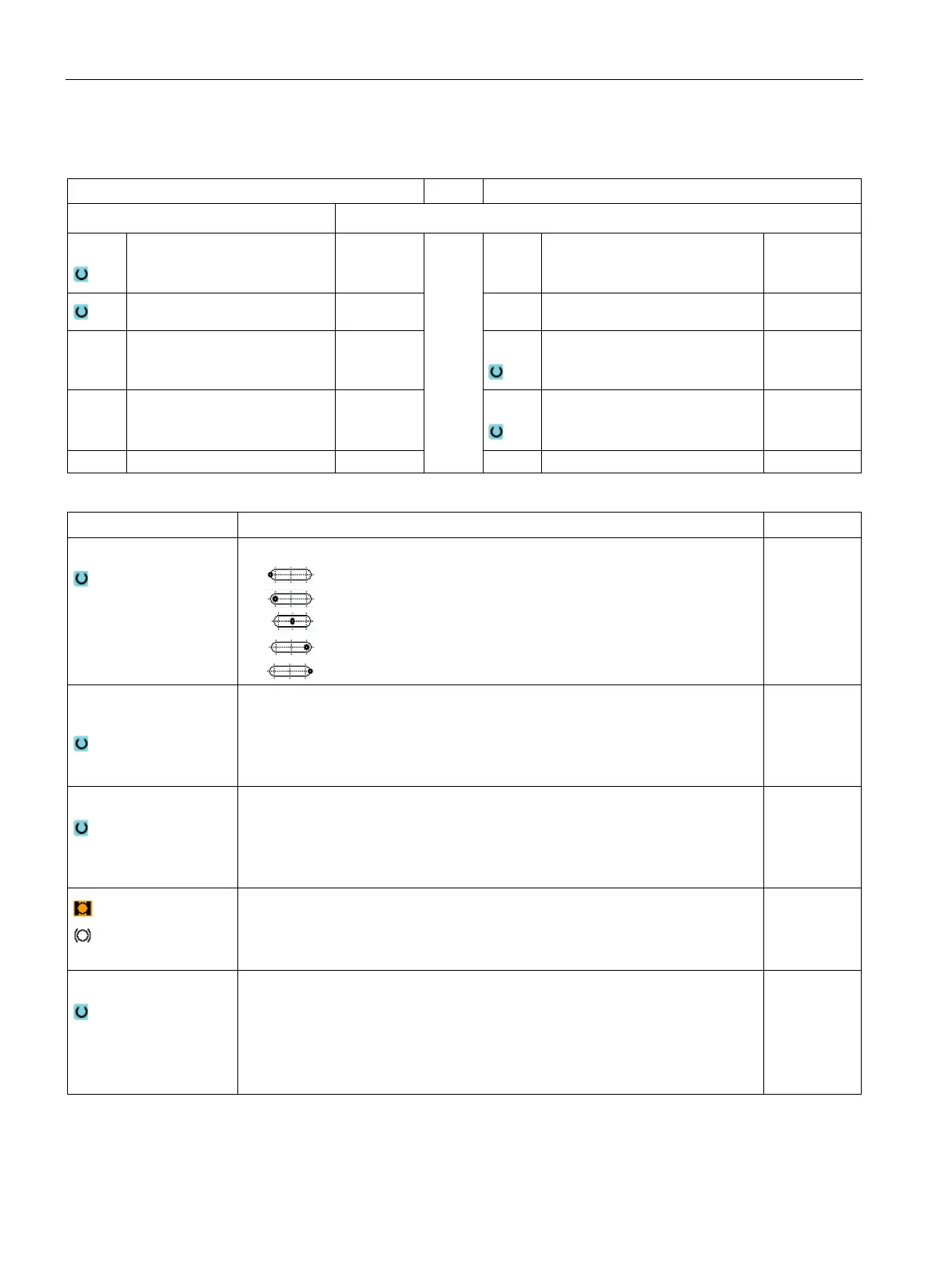

Parameters in the "Input complete" mode
G-code program parameters
Parameters, ShopTurn program
Input
• Complete
PL
Machining plane T Tool name
Milling direction D Cutting edge number
RP Retraction plane mm F
Feedrate mm/min
mm/tooth
SC Safety clearance mm S / V
Spindle speed or constant cut-
ting rate
rpm
m/min
F Feedrate *
Reference point
(only for G code)
Position of the reference point:
• (lefthand edge)
•
(inside left)
•
(center)
•
(inside right)
•
(righthand edge)
Machining
surface
(only for ShopTurn)
• Face C
• Face Y
• Peripheral surface C
• Peripheral surface Y
Position
(only for ShopTurn)
• At the front (face)
• At the rear (face)
• Outside (peripheral surface)
• Inside (peripheral surface)
Clamp/release spindle (only for end face Y/peripheral surface Y)
The function must be set up by the machine manufacturer.
Machining
The following machining operations can be selected:
• ∇ (roughing)
• ∇∇∇ (finishing)
• ∇∇∇ edge (edge finishing)
• Chamfering
