Programming technology functions (cycles)
9.4 Milling
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
509

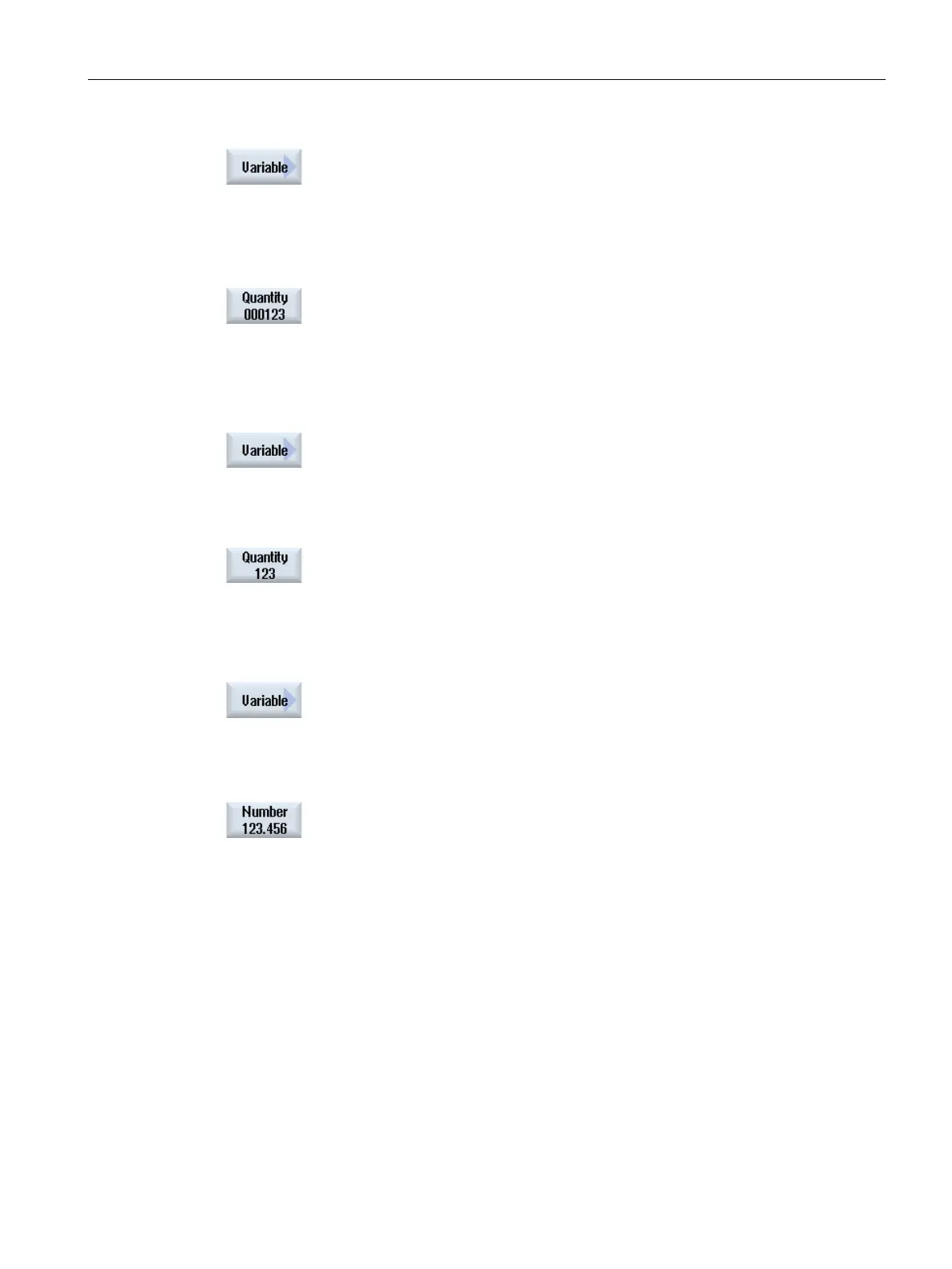

Press the "Variable" and "Workpiece count 000123" softkeys to
engrave a workpiece count with a fixed number of digits and leading
zeroes.
The format text <######,_$AC_ACTUAL_PARTS> is inserted and
you return to the engraving field with the softkey bar.
Define the number of digits by adjusting the number of place holders
(#) in the engraving field.
If the specified number of positions (e.g. ##) is not sufficient to
represent the unit quantity, then the cycle automatically increases
Press the "Variable" and "Workpiece count 123" softkeys if you want
to engrave a workpiece count without leading zeroes.
The format text <#,_$AC_ACTUAL_PARTS> is inserted and you
return to the engraving field with the softkey bar.
Define the number of digits by adjusting the number of place holders
in the engraving field.
If the specified number of digits is not enough to display the
workpiece count (e.g. 123), the cycle will automatically increase the
number digits.
Press the "Variable" and "Number 123.456" softkeys if you want to
engrave a any number in a certain format.
The format text <#.###,_VAR_NUM> is inserted and you return to
the engraving field with the softkey bar.
The place holders #.### define the digit format in which the number
defined in _VAR_NUM will be engraved.
For example, if you have stored 12.35 in _VAR_NUM, you can
format the variable as follows.
efore decimal point un-
formatted, no places after the
decimal point
4 places before decimal point,
leading zeros, no places after the
decimal point
