Programming technology functions (cycles)
9.6 Further cycles and functions
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
565
The cutting edge position is calculated using the CUTMOD function.
If milling is to be possible on any swiveled machining plane, then the "swivel plane" function
must be used.
Please refer to the machine manufacturer's specificatio
ns.
The part program to be executed has been created and you are in the
editor.

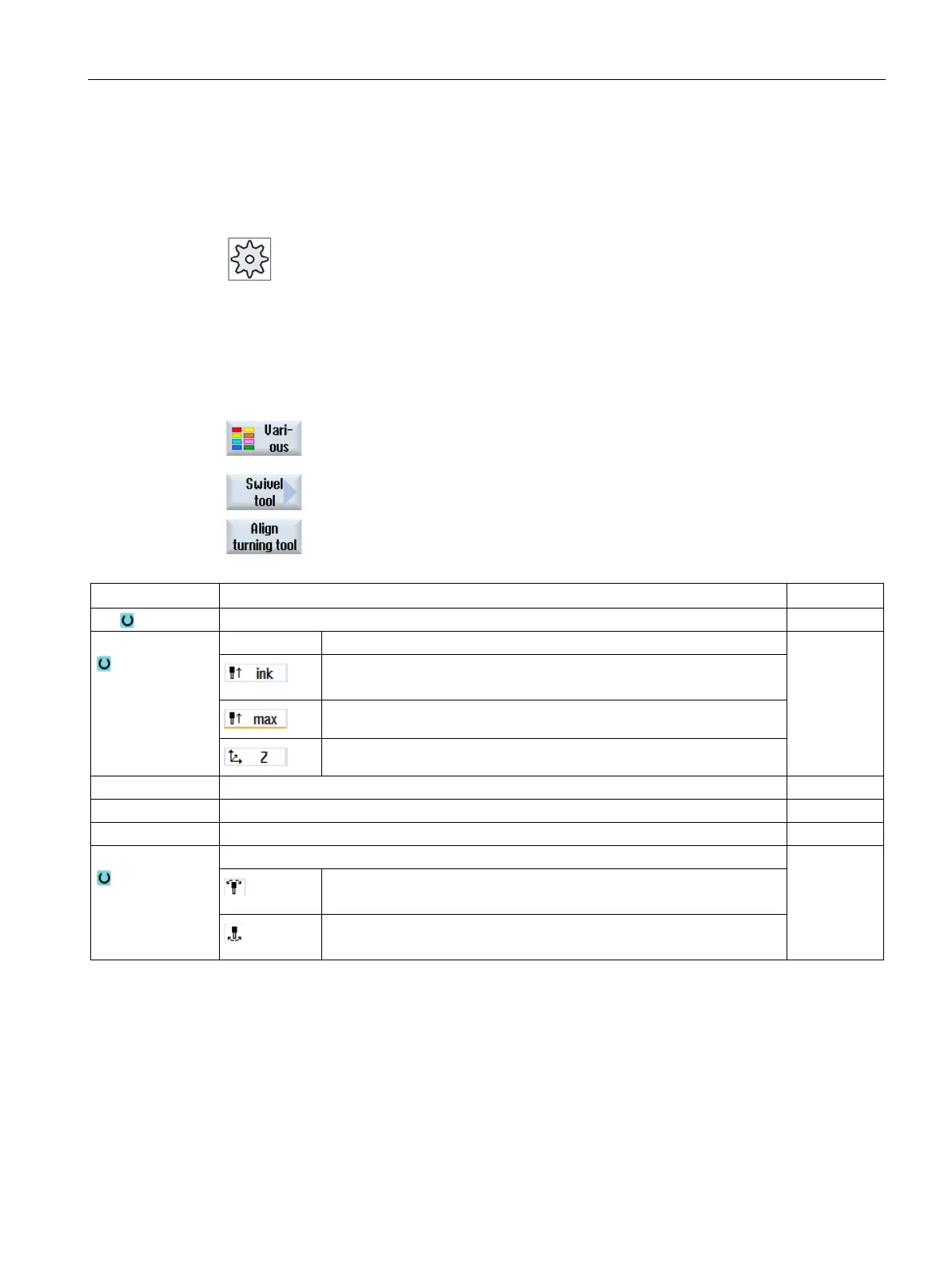

Select the "Miscellaneous" softkey.
Press the "Swivel tool" and "Align turning tool" softkeys.
The "Align turning tool" input window opens.
Retract
No retraction before swiveling
Incremental retraction in tool direction
The retraction path is entered into parameter ZR.
Maximum retraction in tool direction
Retraction in the direction of machine axis Z
Retraction path - (only for incremental retraction in the tool direction)
Rotation around the 3rd geometry axis (for G18 Y)
Rotation around the turning tool
Tool
Tool tip position when swiveling
Follow up
The position of the tool tip is maintained during swiveling.
No follow up
The position of the tool tip changes during swiveling.
