Siemens SINUMERIK 828D User Manual

Managing programs
13.17 Setup data
Turning
778 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

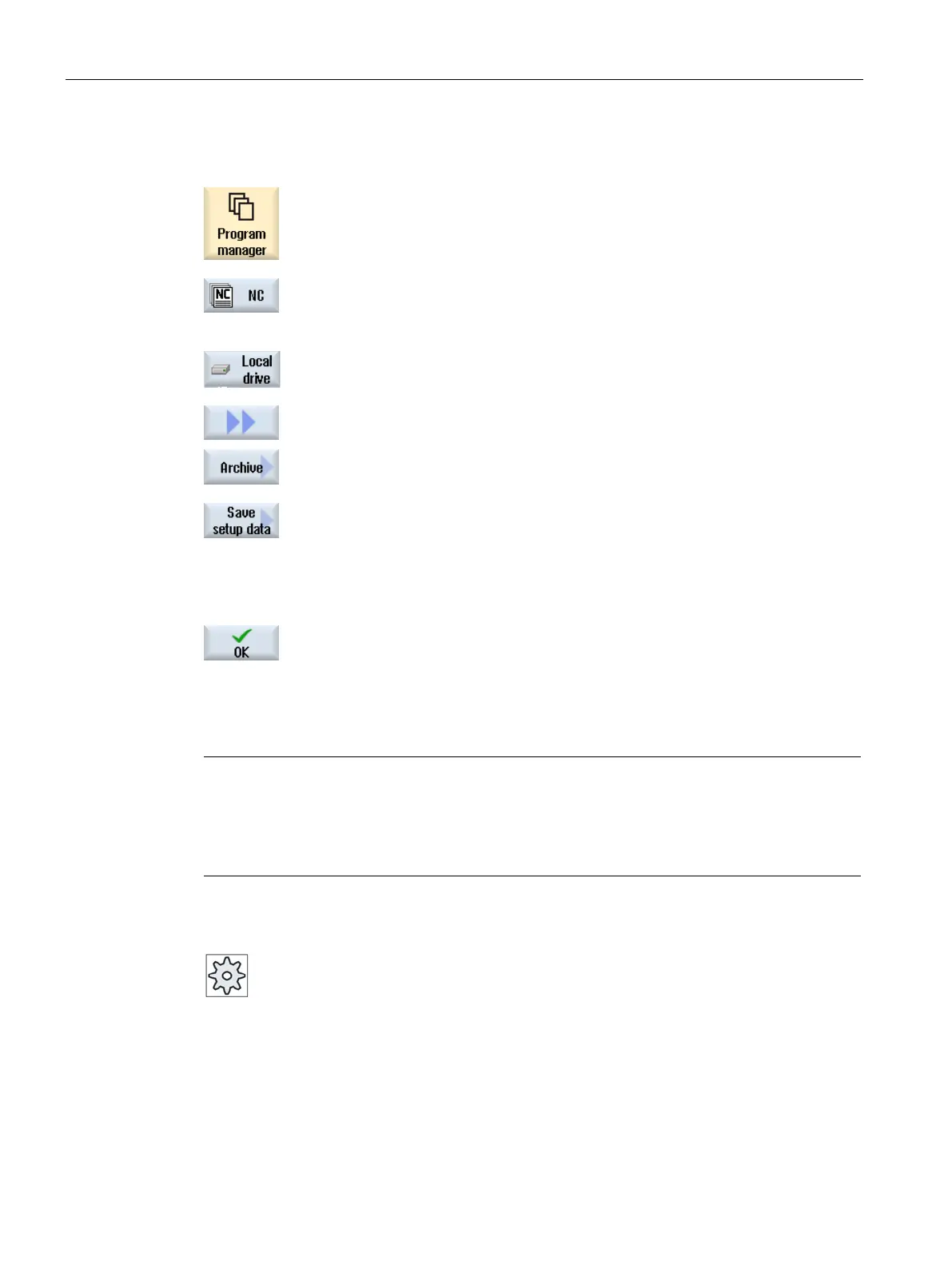

Procedure
1.
Select the "Program Manager" operating area.
...
2.
Po
sition the cursor on the program whose tool and zero point
data you wish to back up.
3.
Press the ">>" and "Archive" softkeys.
4.
Press the "Setup data" softkey.
The "Backup setup data" window opens.
5.
Select the data you want to back up.
6.
When required, change
the specified name of the originally se-
lected program here in the "File name" field.
7.
Press the "OK" softkey.
The setup data will be set up in the same directory in which the
selected program is stored.
The file is automatically saved as INI file.
Note
Program selection
If a main program as well as an INI file with the same name are in
a directory, when
selecting the main program, initially, the INI file is automatically started. In this way,
unwanted tool data can be changed.
Machine manufacturer
Please refer to the machine manufacturer's specifications.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
