Color Corrector Functions 243
Knob
Parameter
Adjustment
Setting values
1
Red
Red signal
adjustment
–100.00 to +100.00
2
Green
Green signal
adjustment
–100.00 to +100.00
3
Blue
Blue signal
adjustment
–100.00 to +100.00
4
All
Simultaneous
RGB
adjustment
Red value is shown
Knob
Parameter
Adjustment
Setting values
1
Red
Red signal
adjustment
0.00 to 200.00
2
Green
Green signal
adjustment
0.00 to 200.00
3
Blue
Blue signal
adjustment
0.00 to 200.00
4
All
Simultaneous
RGB
adjustment
Red value is shown
Knob
Parameter
Adjustment
Setting values
1
Red
Red signal
adjustment
20.00 to 75.00
2
Green
Green signal
gain
20.00 to 75.00
3
Blue
Blue signal
gain
20.00 to 75.00
4
All
Simultaneous
RGB
adjustment
Red value is shown
Chapter
9
Color
Corrector
Black balance adjustment: setting the output level for a
0% level input signal.
White balance adjustment: setting the output level for a
100% level input signal.
Gamma correction: adjusting the curvature of the gamma
curve.
Knee correction: adjusting the position of the maximum
point of the gamma curve.

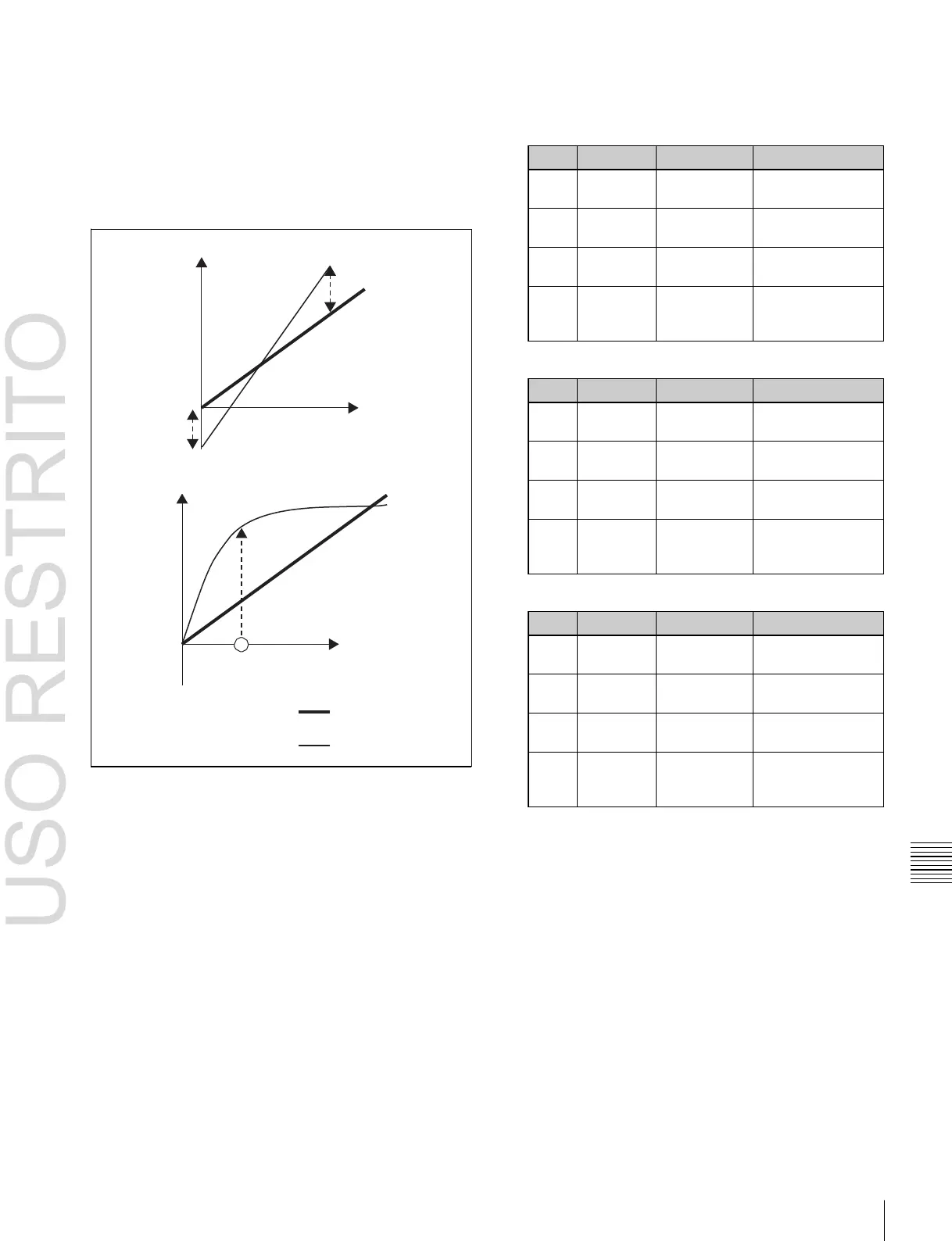

4 Depending on the selection in step 3, adjust the
following parameters.
When Black or Gamma is selected
Output level
White balance
adjustment
When White is selected
Black balance
adjustment
Input level
Output level
Gamma
correction
When Knee is selected
Knee correction
Input level
Unadjusted signal
Adjusted signal
It is also possible to mask part of the region to be corrected.
Applying primary color correction
1 In the CCR menu, press VF1 ‘CCR1’ and HF2
‘Primary CCR.’
The Primary CCR menu appears.
2 In the <Primary CCR> group, press [Primary CCR],
turning it on.
3 In the <Primary CCR Adjust> group, select the setting
item.
Black: black balance adjustment
White: white balance adjustment
Gamma: gamma correction
Knee: knee correction
To return the parameters to their default settings
In the <Primary CCR> group, press [Unity].
Masking a part of the primary color
correction
Here the procedure for mask 1 operation is described by
way of example. You can carry out mask 2 operation in a
similar way.
1 In the Primary CCR menu, press [Mask1].
2 In the < Primary/Secondary Mask > group, press
[Mask1], turning it on.
