11. Click IP Catalog on the Project Manager window to open the Vivado IP catalog
window. The IP catalog window appears on the right side panel (see Figure 2-12,
highlighted in a red circle).
12. The MIG tool exists in the Memories & Storage Elements > Memory Interface
Generators section of the IP catalog window (Figure 2-12) or you can search from the
Search tool bar for the string “MIG.”
13. Select MIG 7 Series to open the MIG tool (Figure 2-13).
X-Ref Target - Figure 2-12

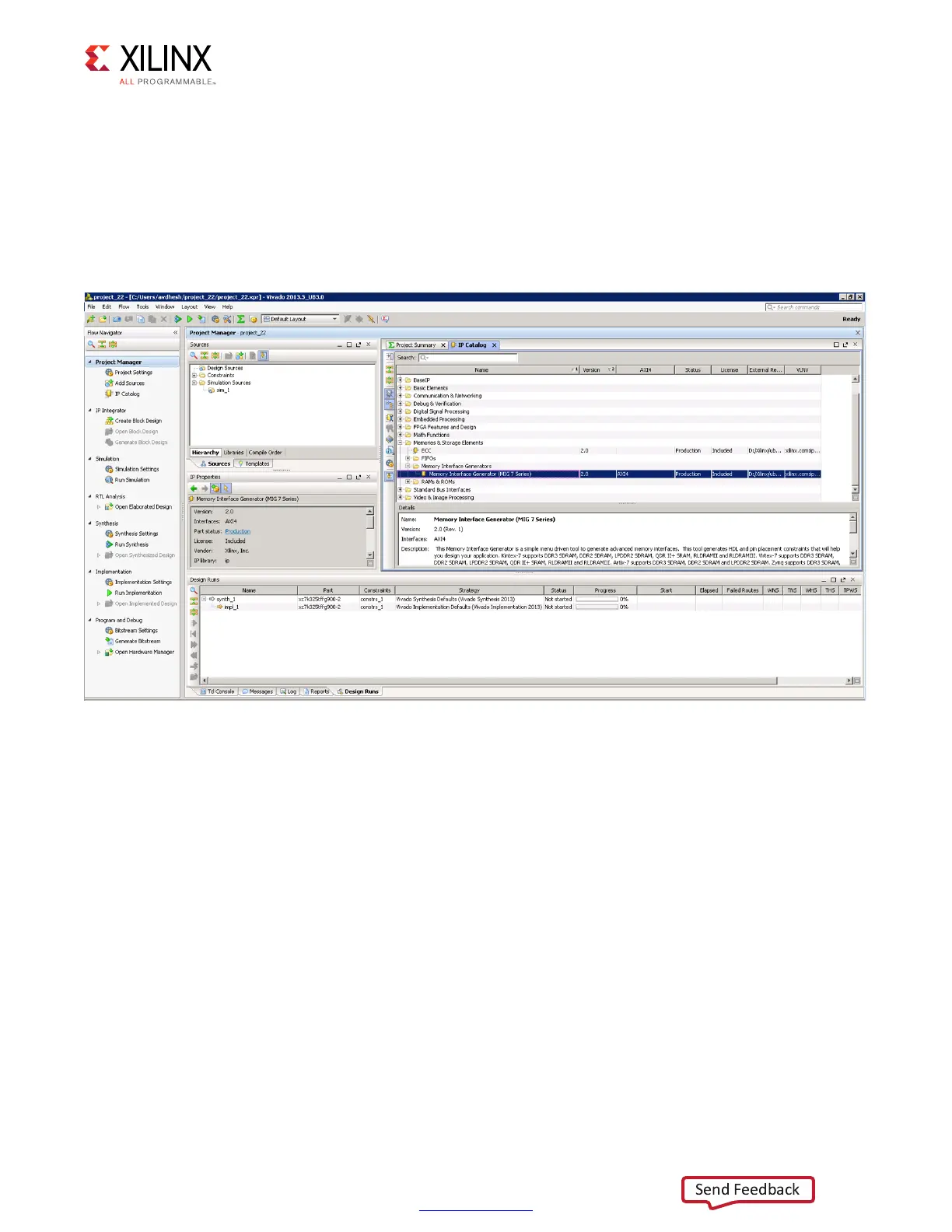

Figure 2-12: IP Catalog Window – Memory Interface Generator
