Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions
3. Apply the settings and select OK.
4. In the Flow Navigator window, select Run Simulation and select Run Behavioral
Simulation as shown in Figure 3-65.
5. Vivado invokes IES and simulations are run in the IES tool. For more information, see the
Vivado Design Suite User Guide: Logic Simulation (UG900) [Ref 8].
For detailed information on setting up Xilinx libraries, see COMPXLIB in the Command Line
Tools User Guide (UG628) [Ref 17] and the Synthesis and Simulation Design Guide (UG626)
[Ref 18]. For simulator tool support, see the Zynq-7000 AP SoC and 7 Series Devices Memory
Interface Solutions Data Sheet (DS176) [Ref 1].

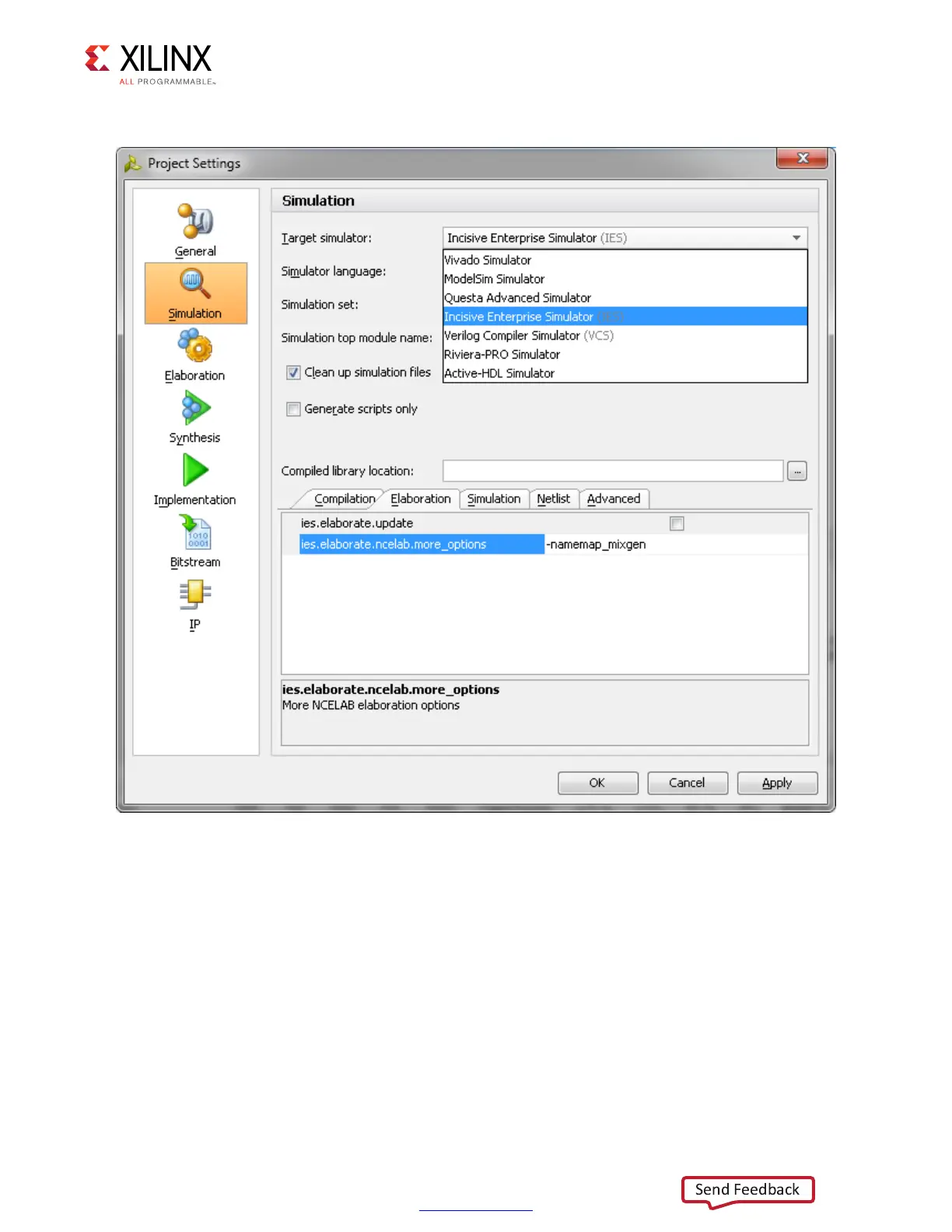

X-Ref Target - Figure 3-68
Figure 3-68: Simulation with IES
Send Feedback

Xilinx Zynq-7000 Specifications

General

Series	Zynq-7000
Number of Cores	Dual-core
Processor Speed	Up to 1 GHz
Device Type	SoC
Logic Cells	Up to 350K
DSP Slices	Up to 900
External Memory Interfaces	DDR3, DDR2, LPDDR2
I/O Standards	LVCMOS, HSTL, SSTL
Operating Temperature	-40°C to +100°C (Industrial), 0°C to +85°C (Commercial)
Package Options	Various BGA packages
I/O Voltage	3.3V
