Xilinx Zynq-7000 User Manual

Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1 86
UG586 November 30, 2016
www.xilinx.com
Chapter 1: DDR3 and DDR2 SDRAM Memory Interface Solution
a. Browse to the Compiled libraries location and set the path on Compiles libraries
location option.
b. Under the Compilation tab, set the vcs.compile.vlogan.more_options to
-sverilog.
c. Under the Simulation tab, set the vcs.simulate.runtime to 1 ms (there are
simulation RTL directives which stop the simulation after a certain period of time
which is less than 1 ms) as shown in Figure 1-49.
3. Apply the settings and select OK.
4. In the Flow Navigator window, select Run Simulation and select Run Behavioral
Simulation as shown in Figure 1-47.

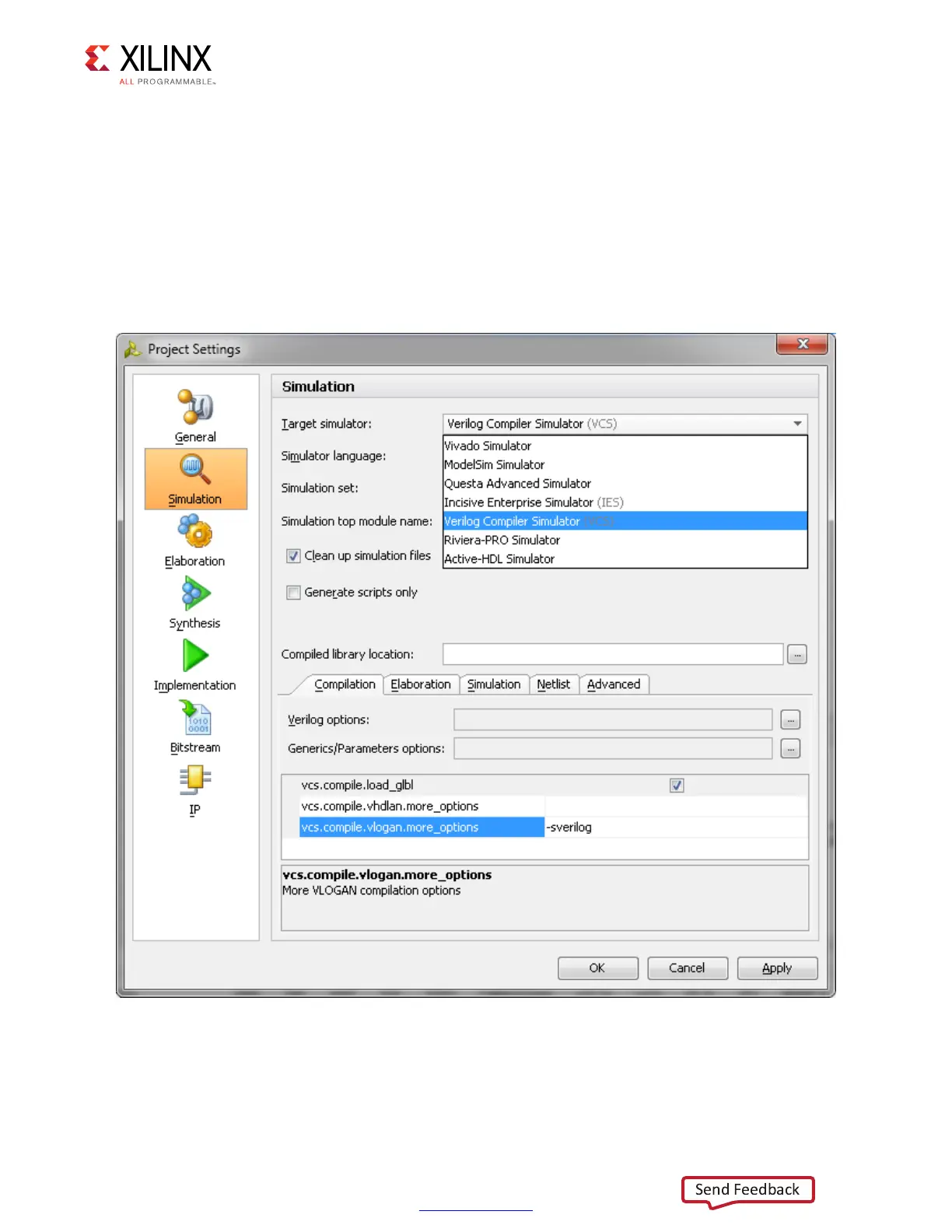

X-Ref Target - Figure 1-49
Figure 1-49: Simulation with VCS
