4-1
YDIS
YDIS
The Yamaha Diagnostic System uses precision fault diagnosis to offer better serviceability at a time
when there is increasing demand for service tools for electronically controlled products. It provides
quick, reliable, safe, and reasonable service, and is intended to obtain customer satisfaction. The
Yamaha Diagnostic System features updated software and expanded tool functions that allow it to
respond to new models and technologies, maintaining compatibility with regulations. See YDIS (Ver.
2.49 or later) instruction manual for detailed information.

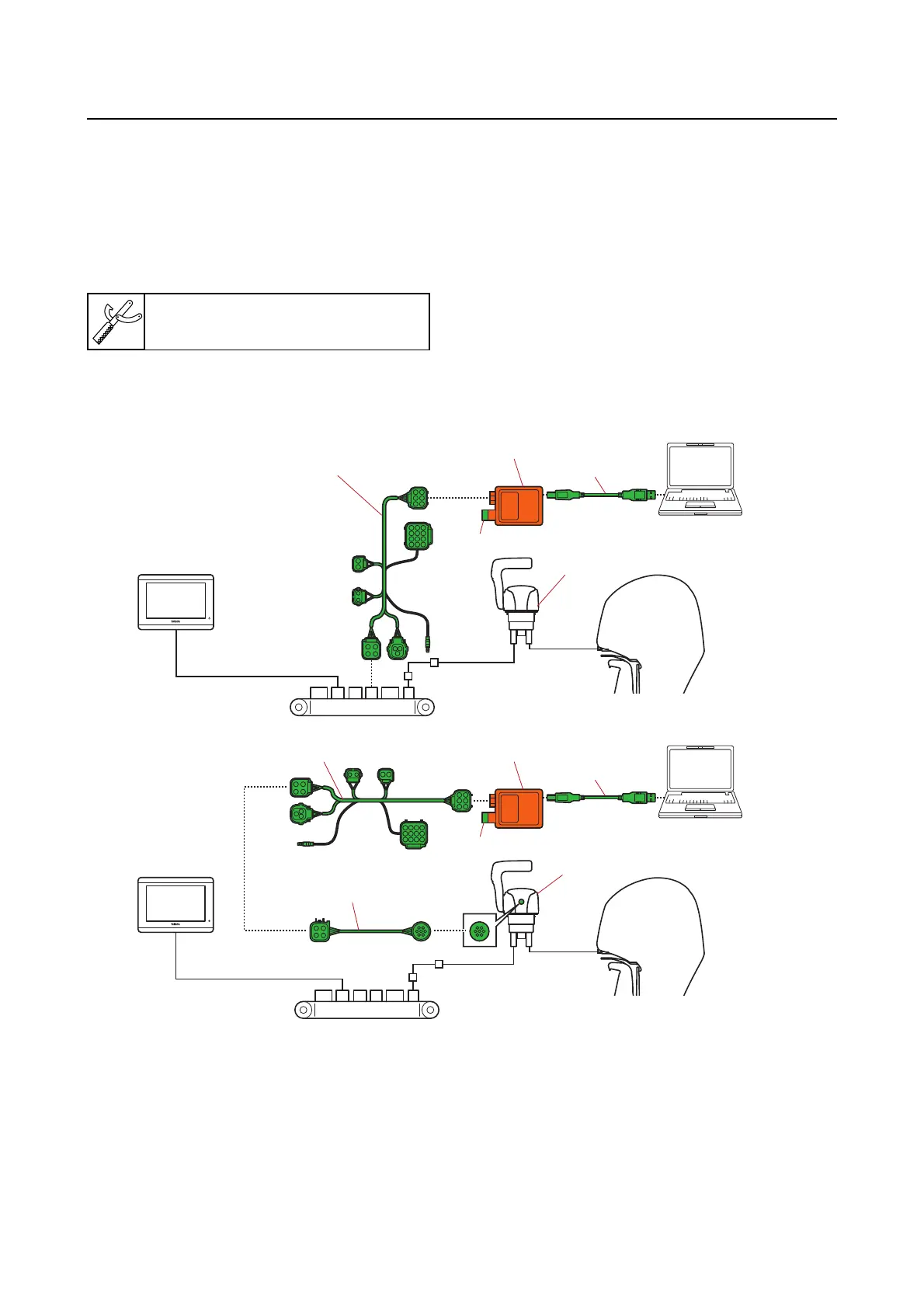

Connecting the communication cable
CAN-Line
YDIS 2 HARDWARE KIT III
90890-06980
3. Adapter interface
4. USB cable
5. Multi-hub
2. Adapter cap
2. Adapter cap
1. K and CAN harness
1. K and CAN harness 3. Adapter interface
4. USB cable
5. Multi-hub
6. YDIS CAN conversion
harness
7. 6X9 Digital Electronic Control
7. 6X9 Digital Electronic Control
A
B
1. K and CAN harness
2. Adapter cap
3. Adapter interface
4. USB cable
5. Multi-hub
6. YDIS CAN conversion harness
7. 6X9 Digital Electronic Control
A. When connecting to multi-hub
B. When connecting to 6X9 Digital
Electronic Control
