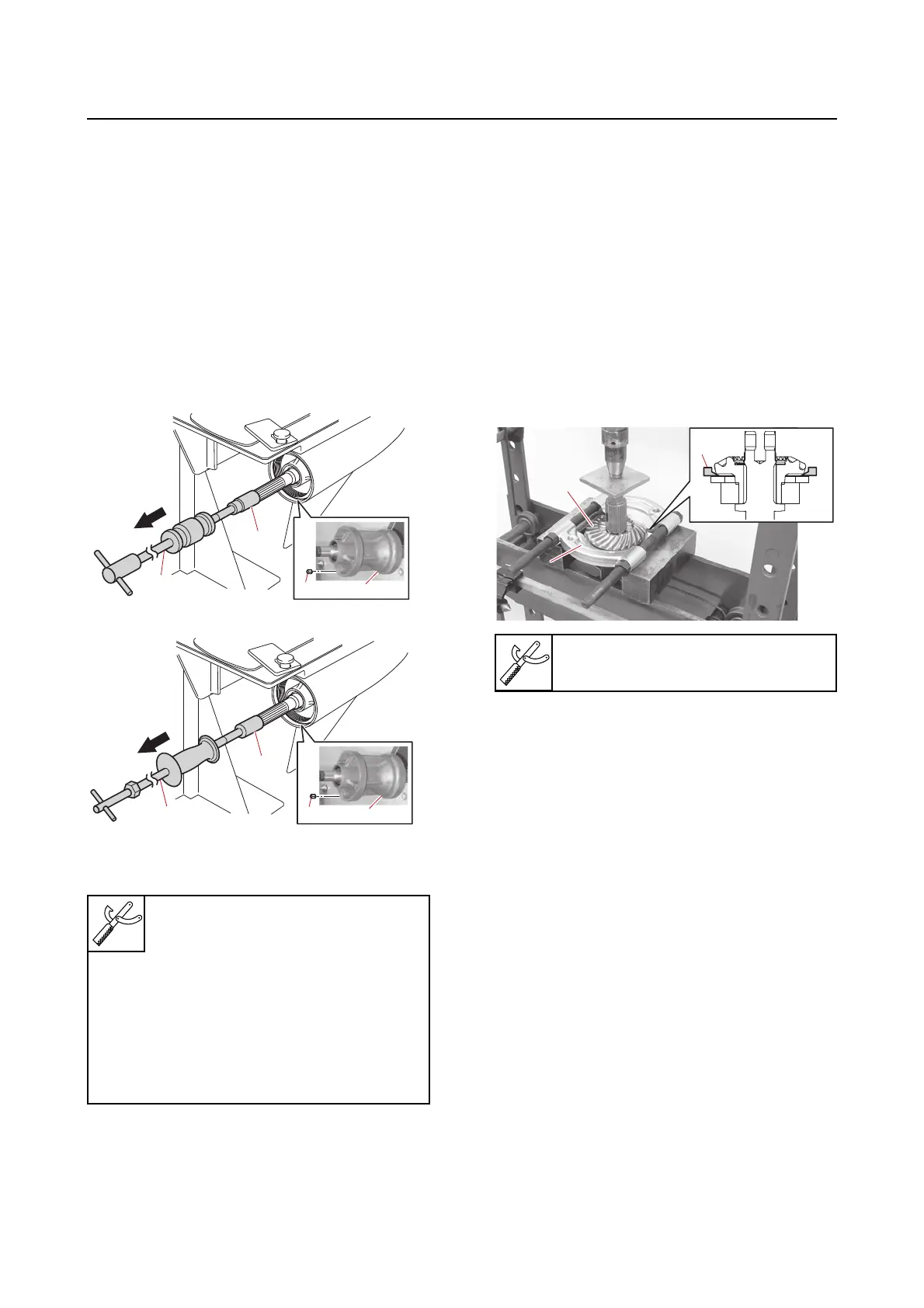

Yamaha F400A 2022 - Removing the Propeller Shaft Housing Assembly; Disassembling the Propeller Shaft Housing Assembly

8-49
Propeller shaft housing (counter rotation model)
Removing the propeller shaft housing
assembly
1. Remove:
• Ring nut
• Claw washer
See step 1 in “Removing the propeller
shaft housing assembly” (8-19).
2. Remove:
• Propeller shaft/propeller shaft housing as-
sembly “a”
•Key “1”
A
B
3. Remove:
• Forward gear shim
•O-ring
Disassembling the propeller shaft
housing assembly
1. Remove:
• Spring
• Cross pin
• Dog clutch
•Slider
•Balls
• Shift plunger
See “Disassembling the propeller shaft
assembly” (8-20).
2. Remove:
• Forward gear assembly “a”
3. Remove:
• Propeller shaft
• Thrust bearing
• Propeller shaft shims
• Circlip
•Washer
• Roller bearing (inner race) “a”
A. Worldwide
B. USA and Canada
Slide hammer handle “2”
90890-06531
Puller head “3”
90890-06514
Slide hammer “4”
YB-06096
Propeller shaft and bearing hous-
ing remover “5”
YB-06335
1a
2
3
1a
4
5
Bearing splitter plate “1”
(commercially available)
1
a
1
a
1
