Yamaha F400A 2022 - ECM Coupler Layout

5-15

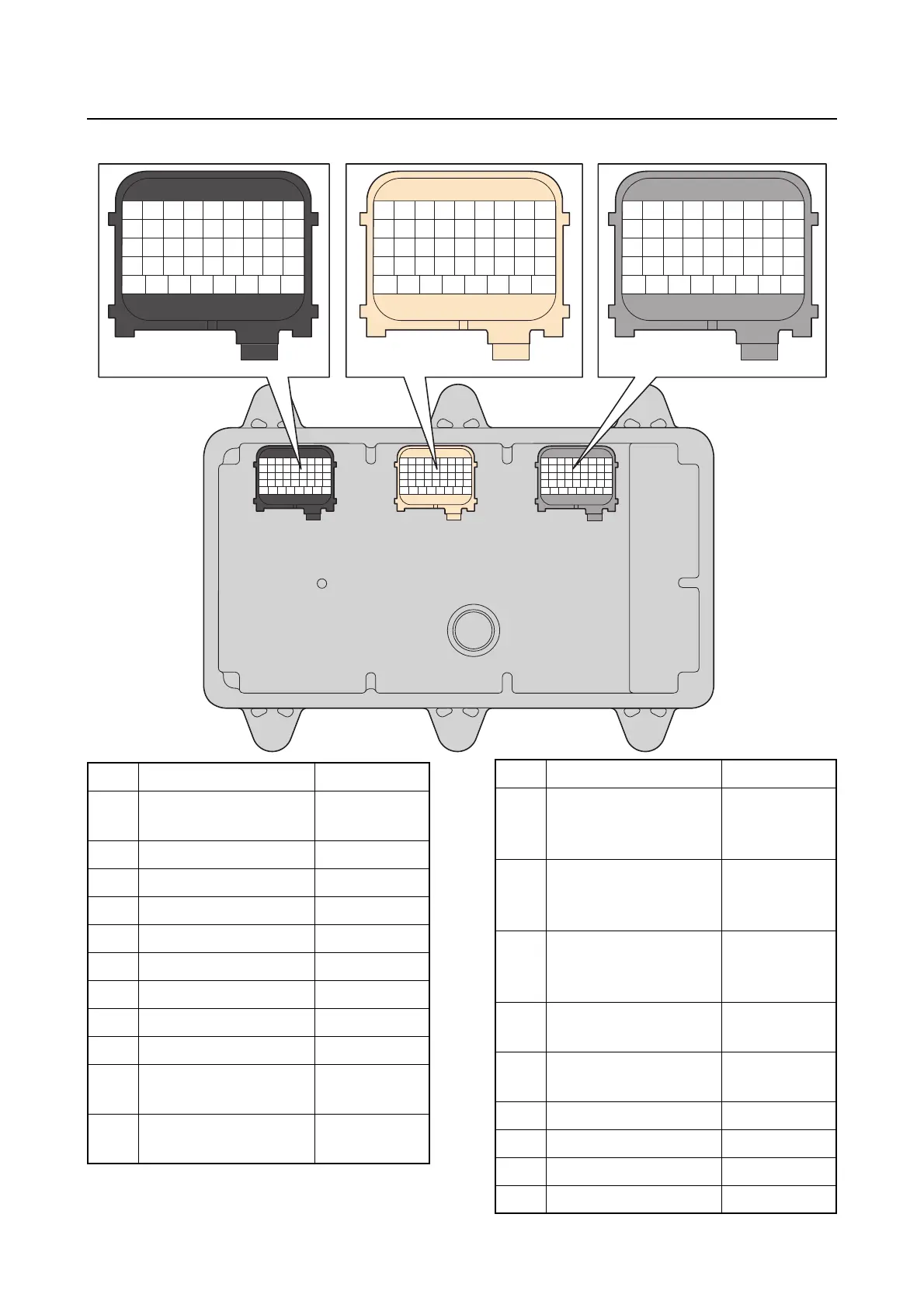

ECM coupler layout
ECM coupler layout
<B> <C>
1
9 1011121314151617
18 19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34 35
36 37 38 39 40 41 42 43 44
2345678 1
9 1011121314151617
18 19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34 35
36 37 38 39 40 41 42 43 44
2345678 1
9 1011121314151617
18 19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34 35
36 37 38 39 40 41 42 43 44
2345678
<A>
No. Connecting part Color
A-1 Shift actuator +
Green/Yel-
low
A-2 — —
A-3 Shift actuator – Green/Black
A-4 — —
A-5 Shift ground Black
A-6 Shift ground Black
A-7 Shift power source Red/Blue
A-8 Shift power source Red/Blue
A-9 OCV (STBD) Purple
A-10
Injector driver (fuel
injector #2)
Black
A-11
Injector driver (fuel
injector #3)
White
A-12
Injector driver (direct
injection pump
[PORT])
Red
A-13
Injector driver (direct
injection pump
[STBD])
Red
A-14
Injector driver (direct
injection pump fail
[STBD])
Green
A-15
Injector driver (fuel
injector fail #3, #8)
Green
A-16
Injector driver (fuel
injector fail #2, #5)
Red
A-17 Starter relay Brown/White
A-18 OCV (PORT) Purple
A-19 Fuel injector #5 White
A-20 Fuel injector #8 Black
No. Connecting part Color
