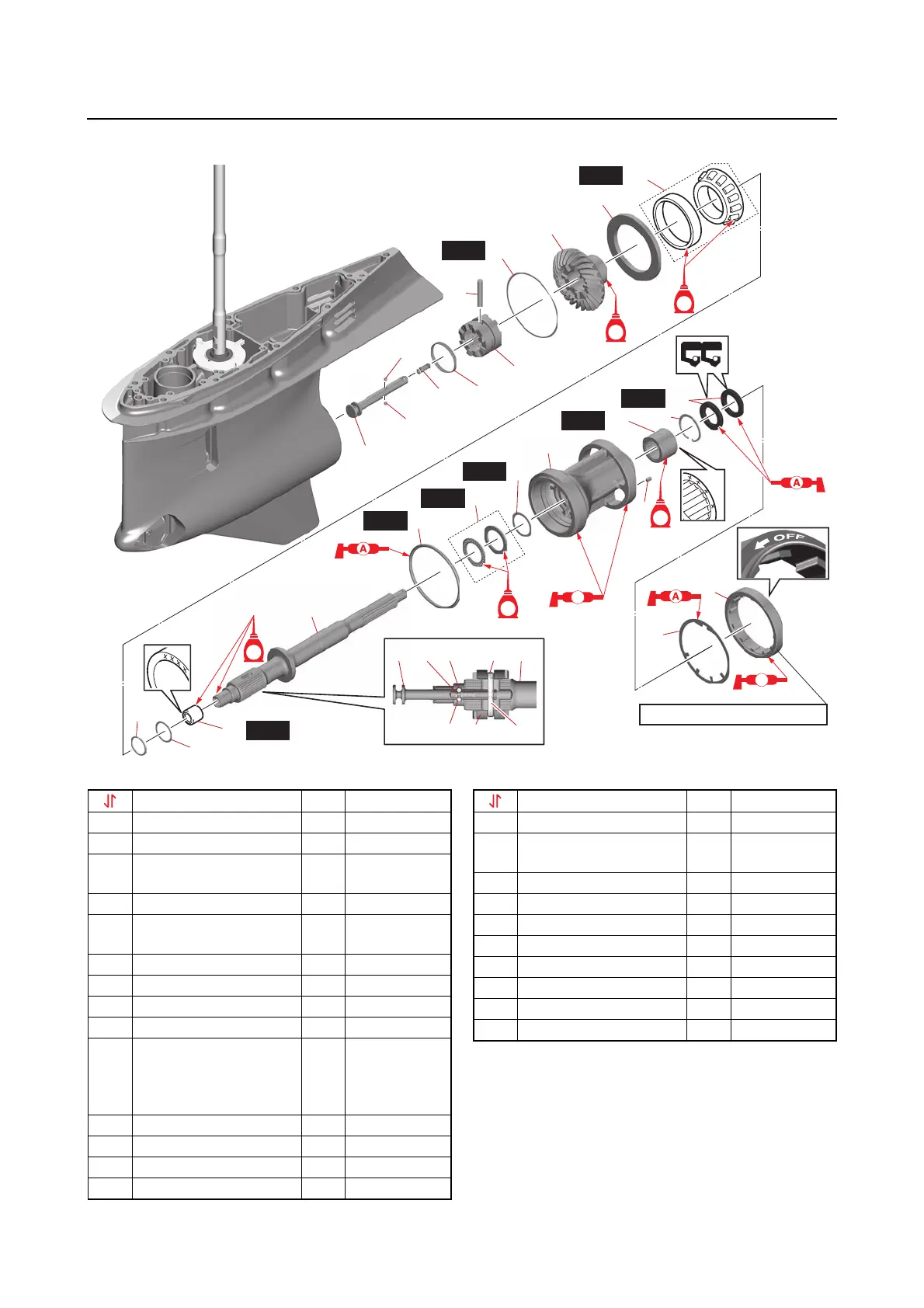

Propeller shaft housing (counter rotation model)
8-48
Propeller shaft housing (counter rotation model)
DD
DD
GG
GG
GG
GG
GG
9
10
6
7
8
10
11
14
5
13
24
23
New
12
15
16
3
2
1
22
21
20
New
New
New
New
9 1011
10 8
7
6 14
17
18
19
New
4
New
New
250 N
·
m (25 kgf
·
m, 184 lb
·ft
)
Part name
Q
’ty
Remarks
1 Ring nut M142 1
2 Claw washer 1
3
Propeller shaft hous-
ing
1
4Key 1
5
Forward gear shim
(T2)
—
6Spring 1
7 Cross pin 1
8 Dog clutch 1
9Slider 1
10 Ball 2
6.33 mm
(0.25 in)
(reference
data)
11 Shift plunger 2
12 O-ring 1
13 Forward gear 1
14 Propeller shaft 1
15 Thrust bearing 1
16
Propeller shaft shim
(T4)
—
17 Circlip 1
18 Washer 1
19 Roller bearing 1 Inner race
20 Oil seal 2
21 Circlip 1
22 Needle bearing 1
23 Tapered roller bearing 1
24 Thrust washer 1
Part name
Q
’ty
Remarks
