Yamaha F400A 2022 - Checking the Steering Arm and Steering Arm Joint; Installing the Steering Arm

9-36
Steering actuator and steering arm
A
B
Checking the steering arm and
steering arm joint
1. Check:
• Steering arm
Worn → Replace.
• Steering arm joint
Cracked/worn → Replace the steering ac-
tuator.

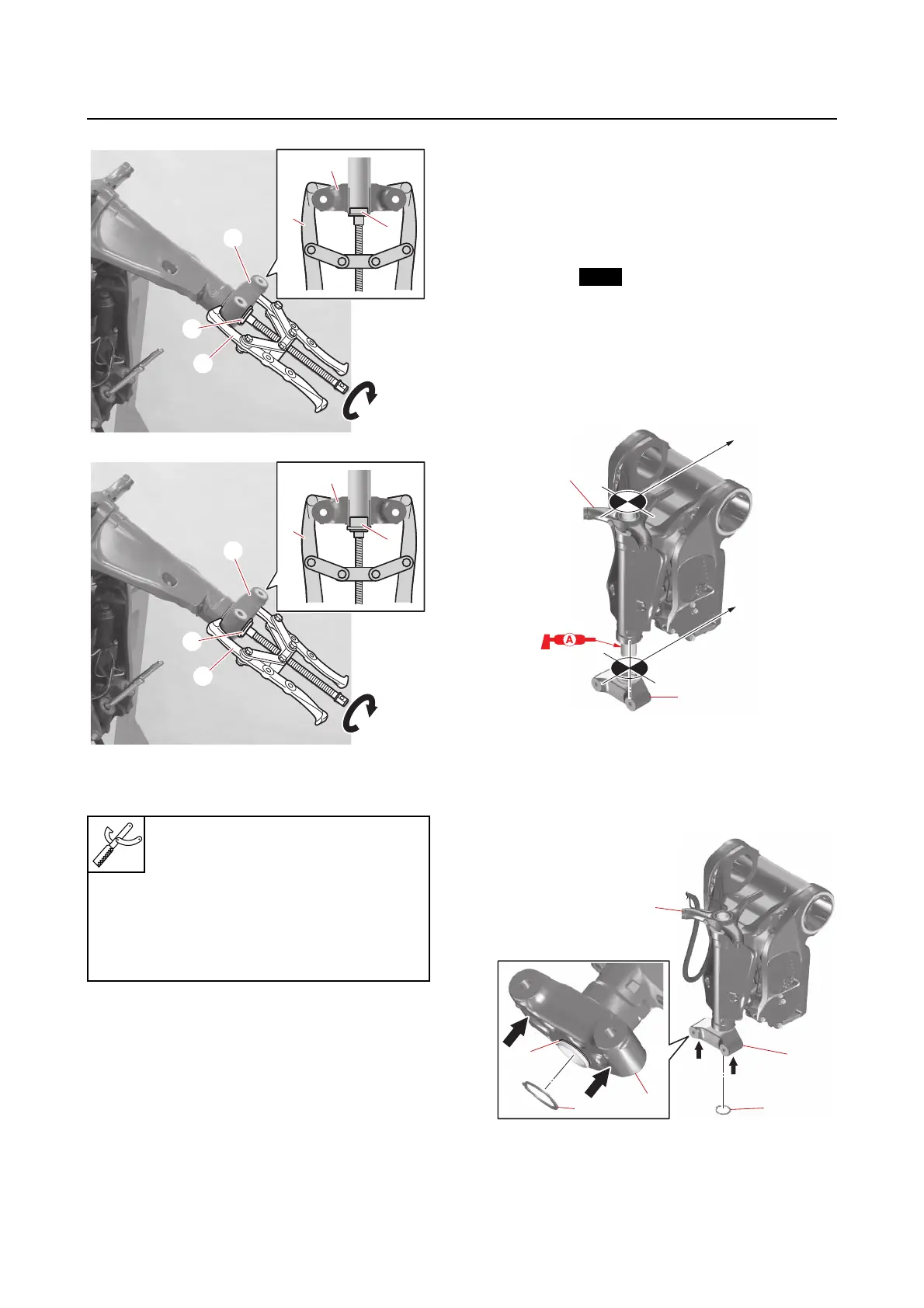

Installing the steering arm
1. Install:
• Steering arm bushings
(into the swivel bracket)
•Washers
•Steering arm
•O-ring
•Steering yoke
• Circlip
• Ground lead
a. Install the steering yoke “1” so that it
faces the same direction as the steer-
ing arm “2” (aligning “a” with “b”).
b. Hold the steering arm “1”, and then
strike the steering yoke “2” using a
copper hammer until the groove “a” for
installing the circlip is visible.
c. Install the circlip “3”
2. Inject:
• Grease
A. Worldwide
B. USA and Canada
Needle bearing attachment “2”
90890-06608
Driveshaft needle bearing installer
“3”
YB-06231
Gear puller “4”
(commercially available)
2
1
1
4
2
4
3
1
1
4
3
4
New
2
b
a
1
2
3
2
1
3
a
