Yamaha F400A 2022 - Checking the Start;Stop Button (EKS)

5-43
Starting unit and component
c. Connect the power switch coupler.
Checking the start/stop button (EKS)
1. Check:
• Start/stop button continuity
Out of specification → Replace the power
switch, all start/stop button, or start/stop
button.
a. Disconnect the power switch, all start/
stop button, or start/stop button cou-
pler.

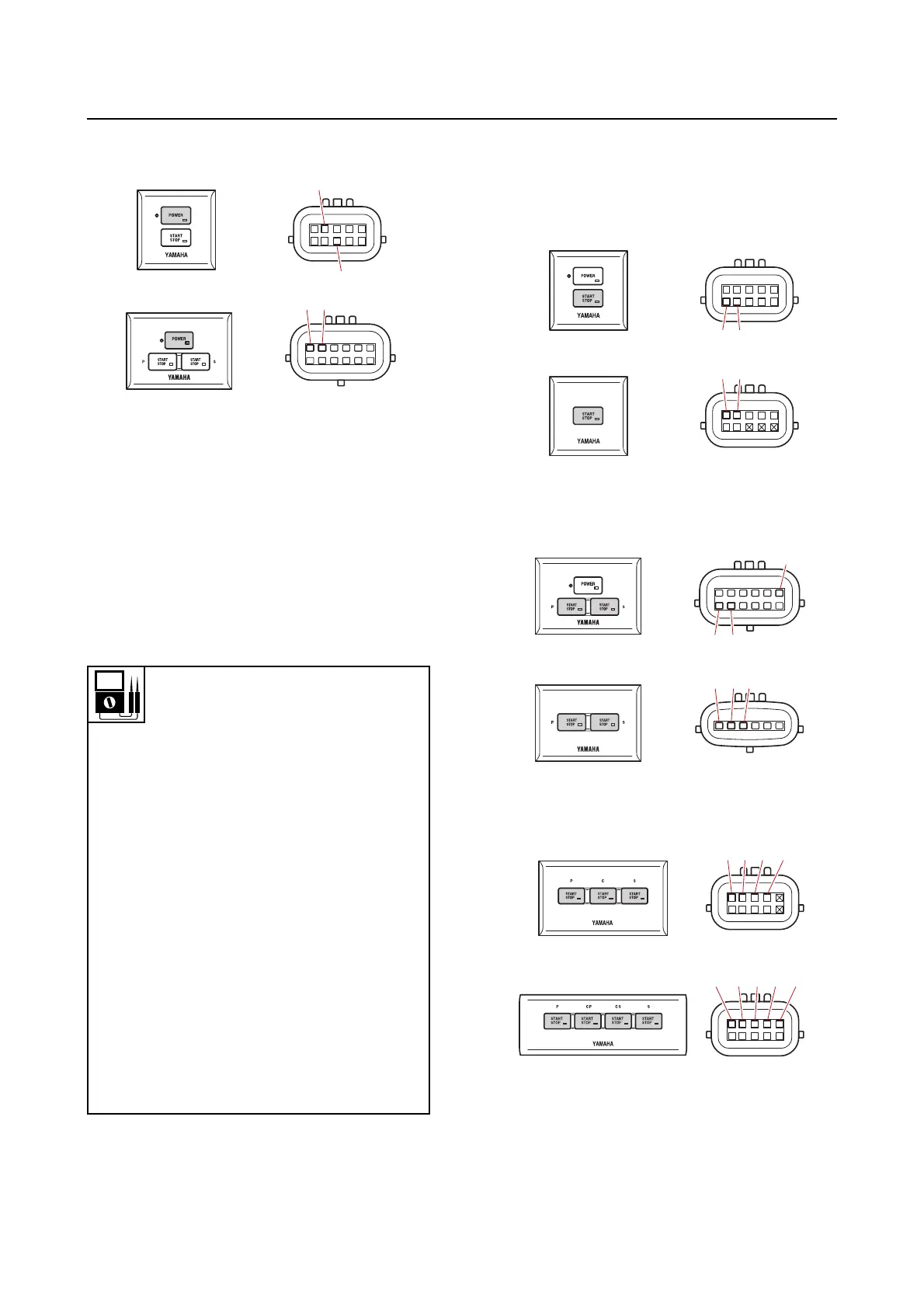

b. Check the engine start/stop button for
continuity at the engine start/stop but-
ton coupler.
A. Single/triple/quad/quint type
B. Twin type
Start/stop button continuity
Button pushed in:
Terminal “a”–Terminal “b”
Terminal “c”–Terminal “d”
Terminal “e”–Terminal “f”
Terminal “e”–Terminal “g”
Terminal “h”–Terminal “i”
Terminal “h”–Terminal “j”
Terminal “k”–Terminal “l”
Terminal “k”–Terminal “m”
Terminal “k”–Terminal “n”
Terminal “o”–Terminal “p”
Terminal “o”–Terminal “q”
Terminal “o”–Terminal “r”
Terminal “o”–Terminal “s”
Terminal “t”–Terminal “u”
Terminal “t”–Terminal “v”
Terminal “t”–Terminal “w”
Terminal “t”–Terminal “x”
Terminal “t”–Terminal “y”
