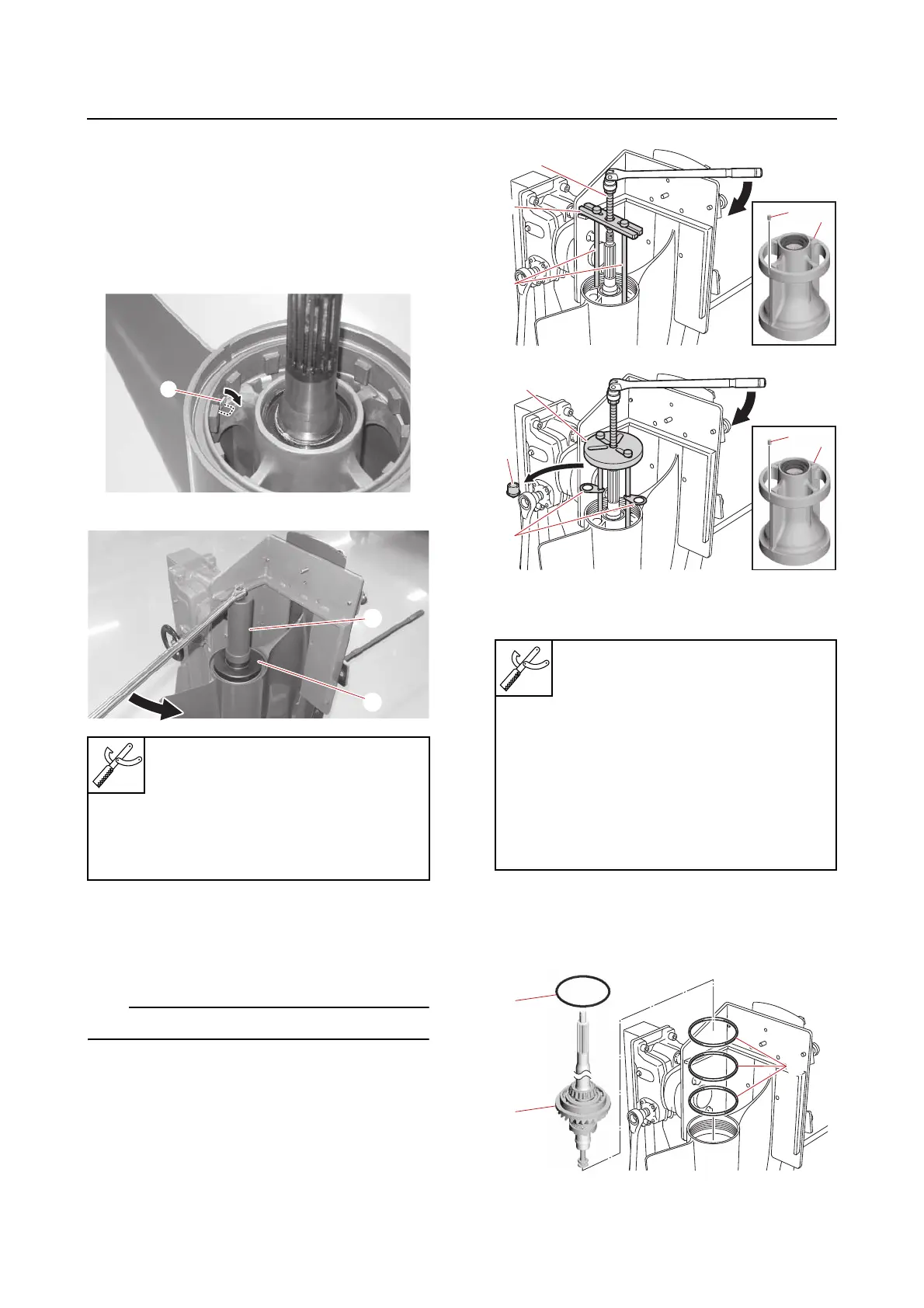

Yamaha F400A 2022 - Removing the Propeller Shaft Housing Assembly

8-19
Propeller shaft housing (regular rotation model)
Removing the propeller shaft housing
assembly
1. Remove:
• Ring nut
• Claw washer
a. Straighten the bent tab “a” on the claw
washer.
b. Loosen the ring nut.
c. Remove the ring nut and claw washer.
2. Remove:
• Propeller shaft housing assembly “a”
•Key “1”
TIP:
Without the attachment “b”.
A
B
3. Remove:
•O-ring “1”
• Propeller shaft assembly “a”
• Reverse gear shims “2”
Ring nut wrench “1”
90890-06932
Ring nut wrench extention 2 “2”
90890-06784
Ring nut wrench extension “2”
YB-06784
a
2
1
A. Worldwide
B. USA and Canada
Stopper guide plate “2”
90890-06501
Bearing housing puller claw L “3”
90890-06502
Center bolt “4”
90890-06504
Universal Puller “5”
YB-06117
Bearing housing puller “6”
YB-06207
4
3
2
1
a
5
6
b
1
a
1
a
2
