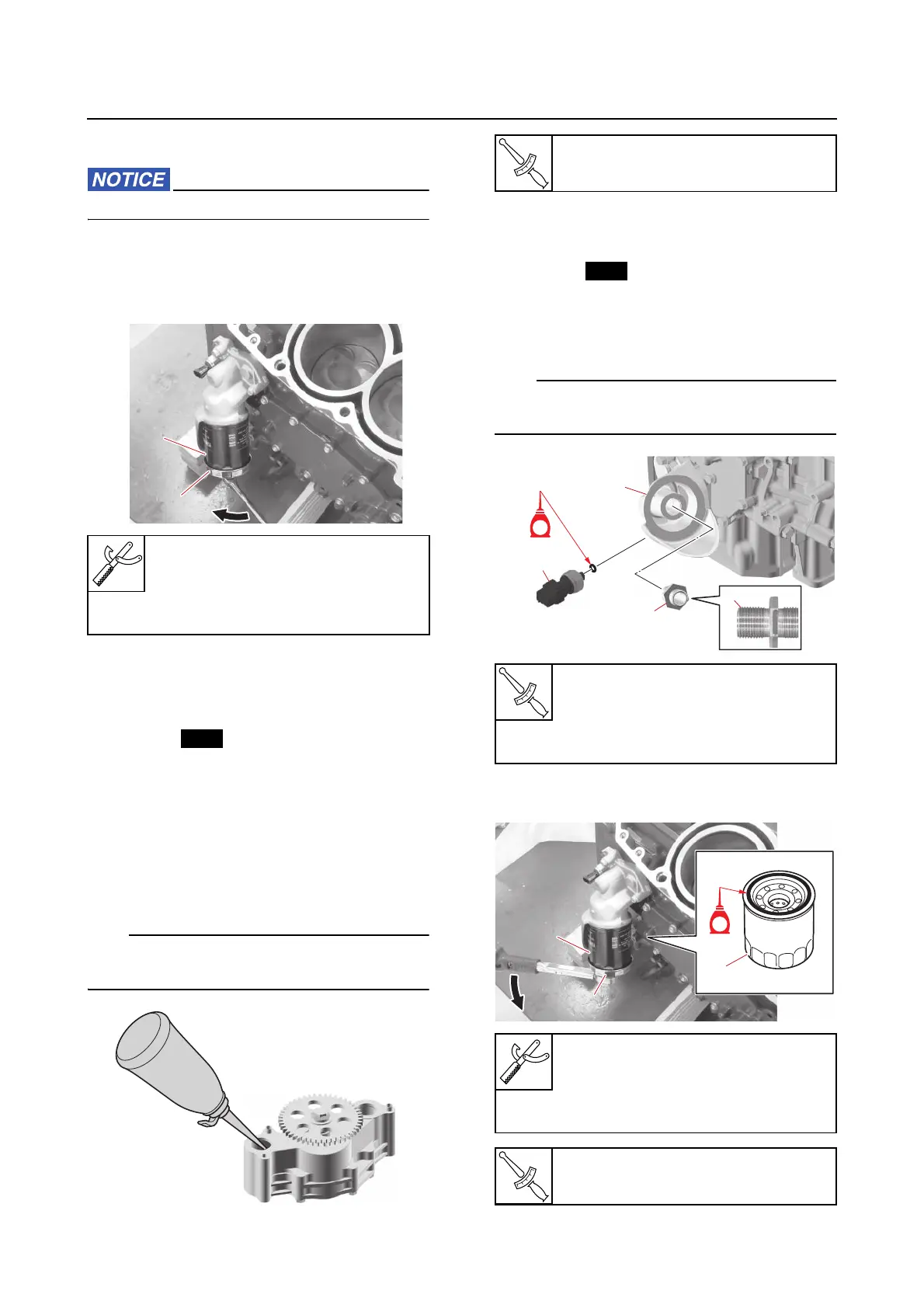

Oil pump assembly
7-71
Removing the oil pump assembly
Do not disassemble the oil pump assembly.
Removing the oil filter
1. Remove:
• Oil filter “1”
Installing the oil filler neck and relief
valve
1. Install:
•O-rings
• Oil filler neck
• Oil filler cap
• Relief valve
Installing the oil pump assembly
1. Install:
• Oil pump assembly
TIP:
Fill the oil pump assembly with engine oil
through both the inlet hole and outlet hole.
Installing the oil filter
1. Install:
•Gasket
• Oil filter bracket
•Union bolt “1”
• Oil pressure sensor “2”
TIP:
Install the longer threaded portion “a” of the
union bolt “1” into the oil filter bracket “3”.
2. Install:
• Oil filter “1”
Oil filter wrench “2”
90890-06874
Oil filter wrench “2”
YB-06874
11
22
New
T
R
.
.
Oil pump assembly bolt
11 N·m (1.1 kgf·m, 8.1 lb·ft)
T
R
.
.
Union bolt “1”
49 N·m (4.9 kgf·m, 36 lb·ft)
Oil pressure sensor “2”
13 N·m (1.3 kgf·m, 9.6 lb·ft)
Oil filter wrench “2”
90890-06874
Oil filter wrench “2”
YB-06874
T
R
.
.
Oil filter
18 N·m (1.8 kgf·m, 13 lb·ft)
New
3
a
1
2
EE
11
2
1
2
1
EE
