Yamaha F400A 2022 - Oil Pump Assembly

7-70

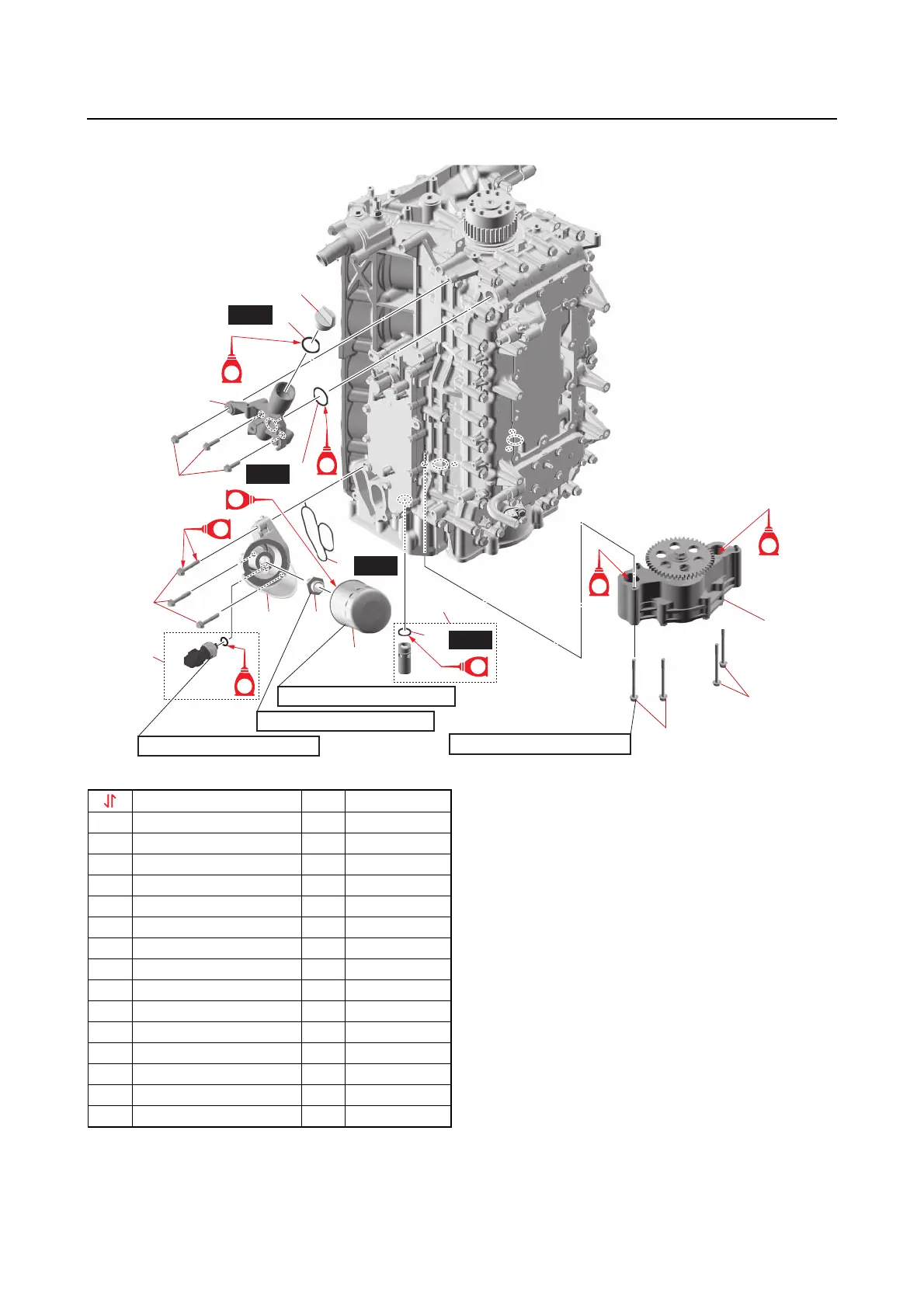

Oil pump assembly
Oil pump assembly
1
3
2
14
15
5
6
4
12
12
13
New
8
9
10
New
11
New
New
7
EE
EE
EE
EE
EE
EE
EE
EE
11 N
·
m (1.1 kgf
·
m, 8.1 lb
·ft
)
18 N
·
m (1.8 kgf
·
m, 13 lb
·ft
)
49 N
·
m (4.9 kgf
·
m, 36 lb
·ft
)
13 N
·
m (1.3 kgf
·
m, 9.6 lb
·ft
)
Part name
Q
’ty
Remarks
1 Oil filter 1
2Union bolt 1
3 Sensor 1 Oil pressure
4Bolt M6
× 40 mm 3
5 Bracket 1
6Gasket 1
7 Oil filler cap 1
8O-ring 1
9Bolt M6
× 25 mm 3
10 Oil filler neck 1
11 O-ring 1
12 Bolt M6
× 75 mm 4
13 Oil pump assembly 1
14 Relief valve 1
15 O-ring 1
