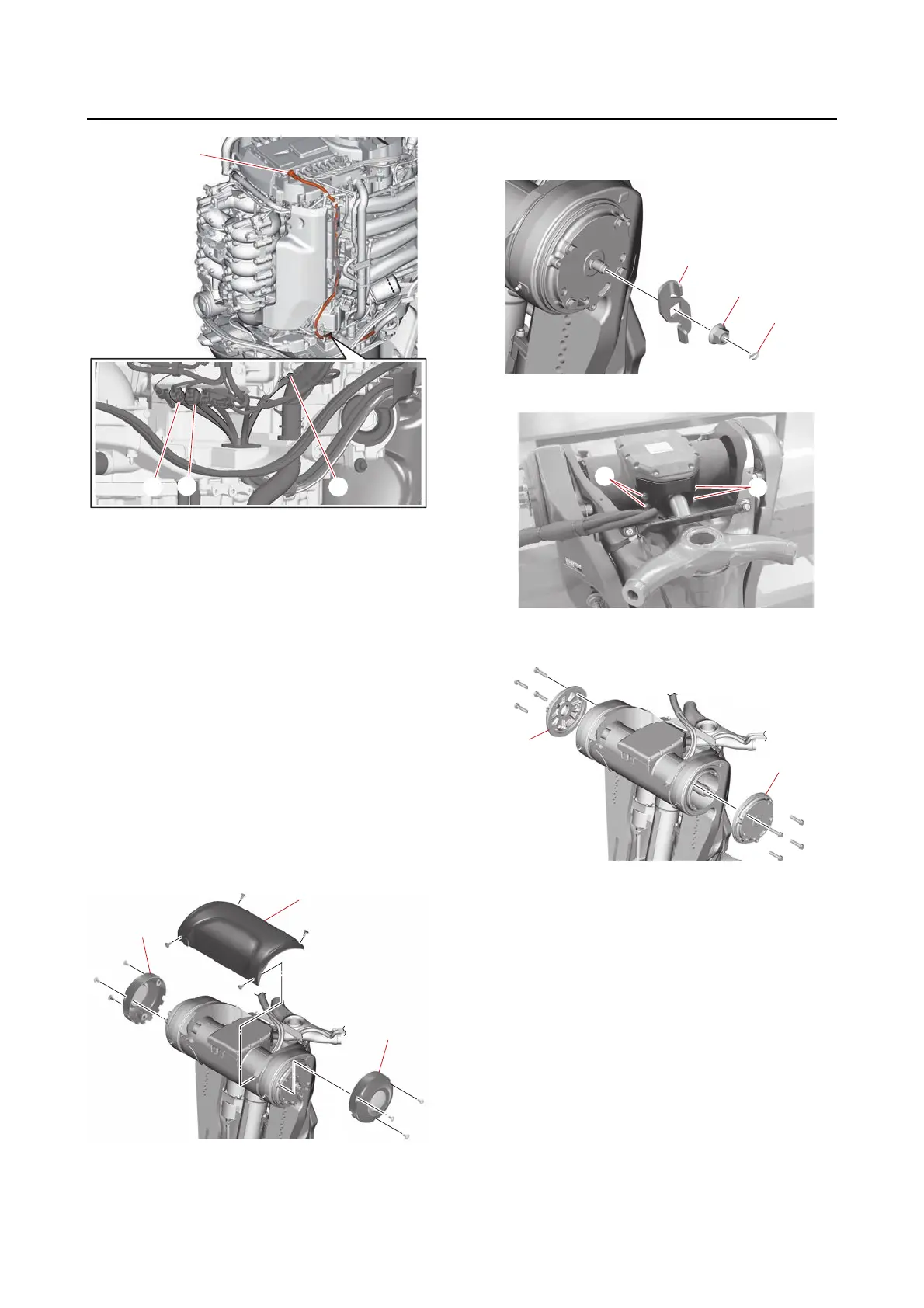

Yamaha F400A 2022 - Removing the Power Steering Unit (with the Power Unit Removed)

9-34
Steering actuator and steering arm
11. Remove:
• Protector cover
• SCU lead
(from the holders and exhaust guide)
See “Upper case assembly and mount”
(9-20).
12. Remove:
• Steering actuator
See “Removing the power steering unit
(with the power unit removed)” (9-34).
Removing the power steering unit
(with the power unit removed)
1. Remove:
• Clamp bracket side covers “1”
• Swivel bracket top cover “2”
2. Remove:
• Steering actuator
a. Remove the cotter pin “1”, nut “2”, and
manual steering lever “3”.
b. Remove the bolts “1”.
c. Remove the steering actuator brackets
“1” and “2”.
d. Turn the shaft “a” of the steering actu-
ator “1” clockwise until the starboard
end of the shaft is the specified length
“b”, and then move the steering actua-
tor to the starboard side as shown.
b
c
d
a
2
1
1
3
2
1
1
1
1
2
