Electronic control system
2-34

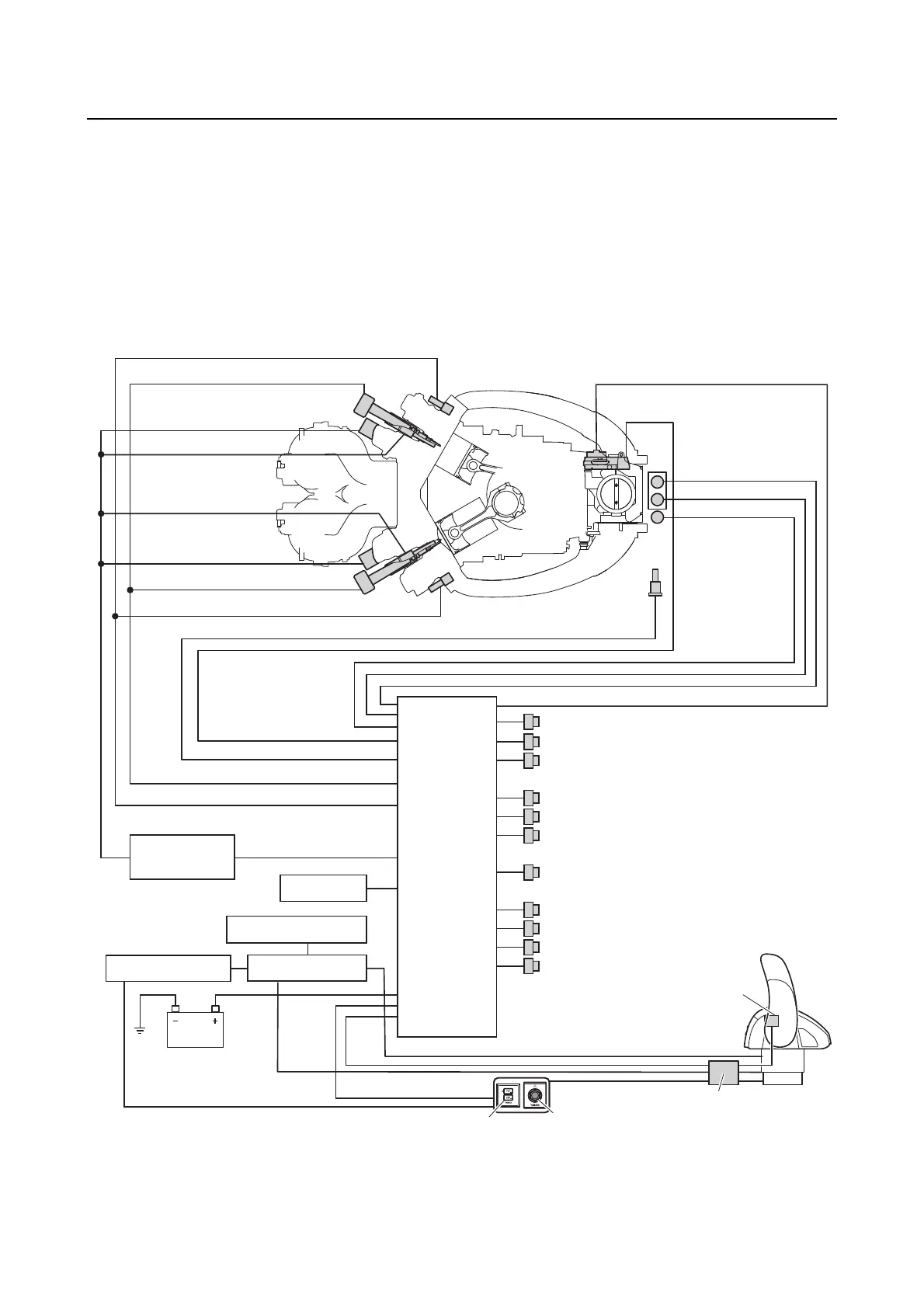

Electronic control system
This model uses an electronic direct injection control, digital ignition control, Digital Electronic Control,
electronic shift control, ETV control, VCT control, knock control, over-revolution control, alert control,
and fail-safe control.
The engine ECM performs these controls based on data received from each sensor and switch.
The engine ECM is equipped with a self-diagnosis function. This function can be used to check trouble
codes on the YDIS.
It is also equipped with Y-COP as an anti-theft measure (optional).
18. High-
pressure
fuel pump
19. Low-
pressure
fuel pump
20. Shift actuator
26. Shift control
21. OCV
21. OCV
24. Fuel injector
24. Fuel injector
16. TPS
17. ETV
22. Ignition coil
22. Ignition coil
23. Direct injection
pump
23. Direct injection
pump
25. ETV control
28. Valve control
29. Fuel injection
control
27. Digital ignition control
36. Engine
ECM
5. Cam position sensor
6. Crankshaft position sensor
7. Intake air pressure
/ temperature sensor
8. Oil pressure sensor
9. Engine temperature sensor
10. Fuel pressure sensor
(high-pressure fuel pump)
12. Knock sensor
11. Fuel pressure sensor
(direct injection pump)
13. Thermo sensor
15. Water pressure sensor
14. Water detection switch
35. Battery
34. Multi-hub33. Y-COP *1
32. CL5 display
31. YDIS
30. Injector
driver
4. Engine start switch 3. Engine shut-off switch
1. LPS
2. Digital Electronic Control ECM
