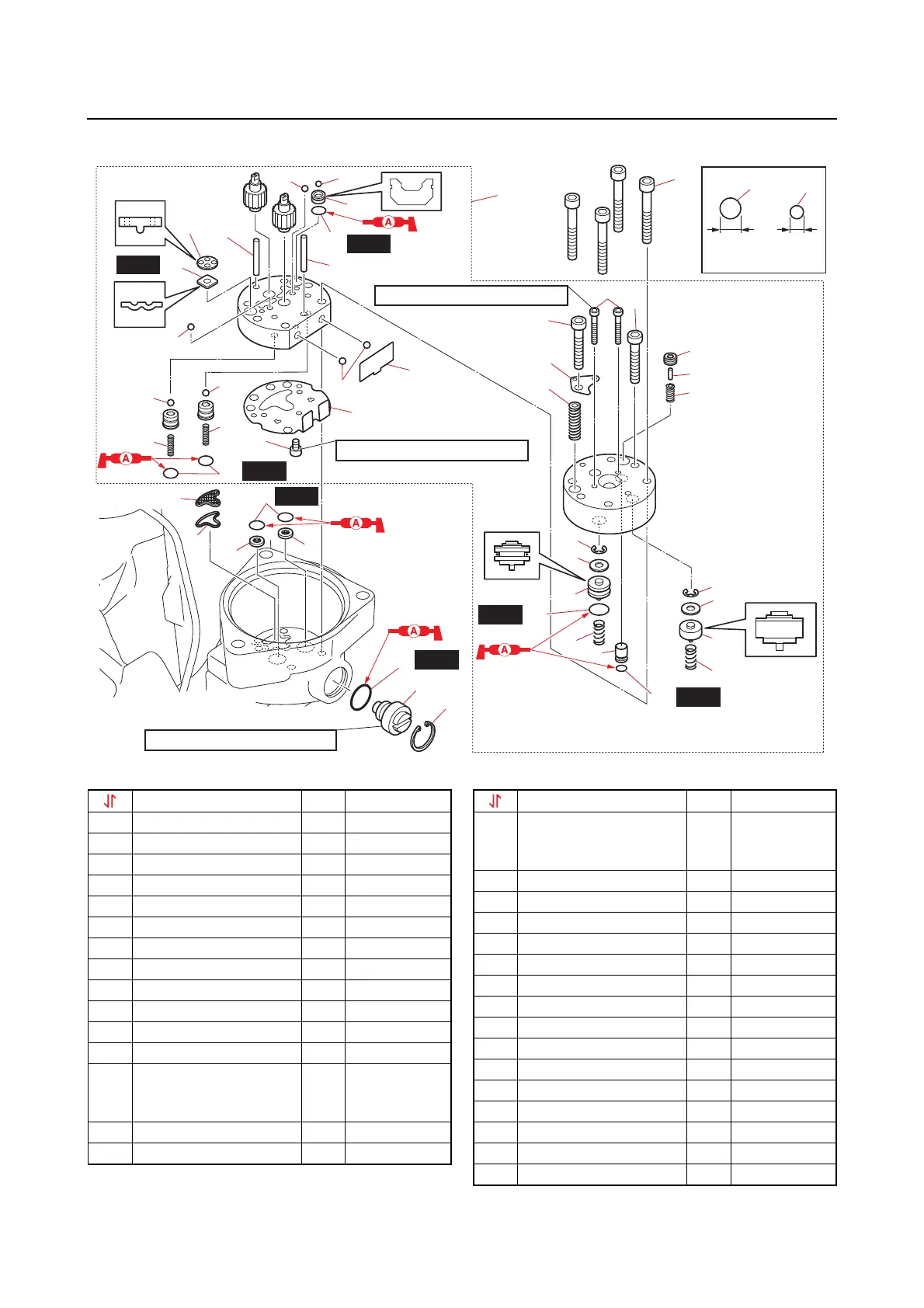

Yamaha F400A 2022 - PTT Gear Pump

PTT gear pump
9-57
PTT gear pump
New
New
New
New
New
New
New
2.0 N
·
m (0.20 kgf
·
m, 1.5 lb
·ft
)
1.8 N
·
m (0.18 kgf
·
m, 1.3 lb
·ft
)
1.8 N
·
m (0.18 kgf
·
m, 1.3 lb
·ft
)
36
38
38
35
34
33
32
12
13
11
10
14
6
15
8
9
7
7
2
3
1
16
15
16
4
5
18
18
17
25
19
20
30
32
37
31
27
29
26
30
31
28
26
23
21
22
24
13,16,32
33
a
a>b
b
Part name
Q
’ty
Remarks
1Circlip 1
2 Manual valve 1
3O-ring 1
4Bolt M5
× 45 mm 4
5 Gear pump assembly 1
6O-ring 2
7Filter 2
8Filter 1
9Plate 1
10 Bolt M3
× 5 mm 1
11 Relief valve seat 1
12 Manual release plate 1
13 Ball 2
3.92 mm
(0.15 in) (ref-
erence data)
14 O-ring 2
15 Spring 2
16 Ball 2
3.92 mm
(0.15 in) (ref-
erence data)
17 Bolt M3
× 25 mm 2
18 Bolt M5
× 30 mm 2
19 Cap 1
20 Spring 1
21 Valve lock screw 1
22 Spring 1
23 Pin 1
24 Valve support pin 1
25 O-ring 1
26 Spring 2
27 Down-main valve 1
28 Up-main valve 1
29 O-ring 1
30 E-clip 2
31 Main valve seal 2
Part name
Q
’ty
Remarks
