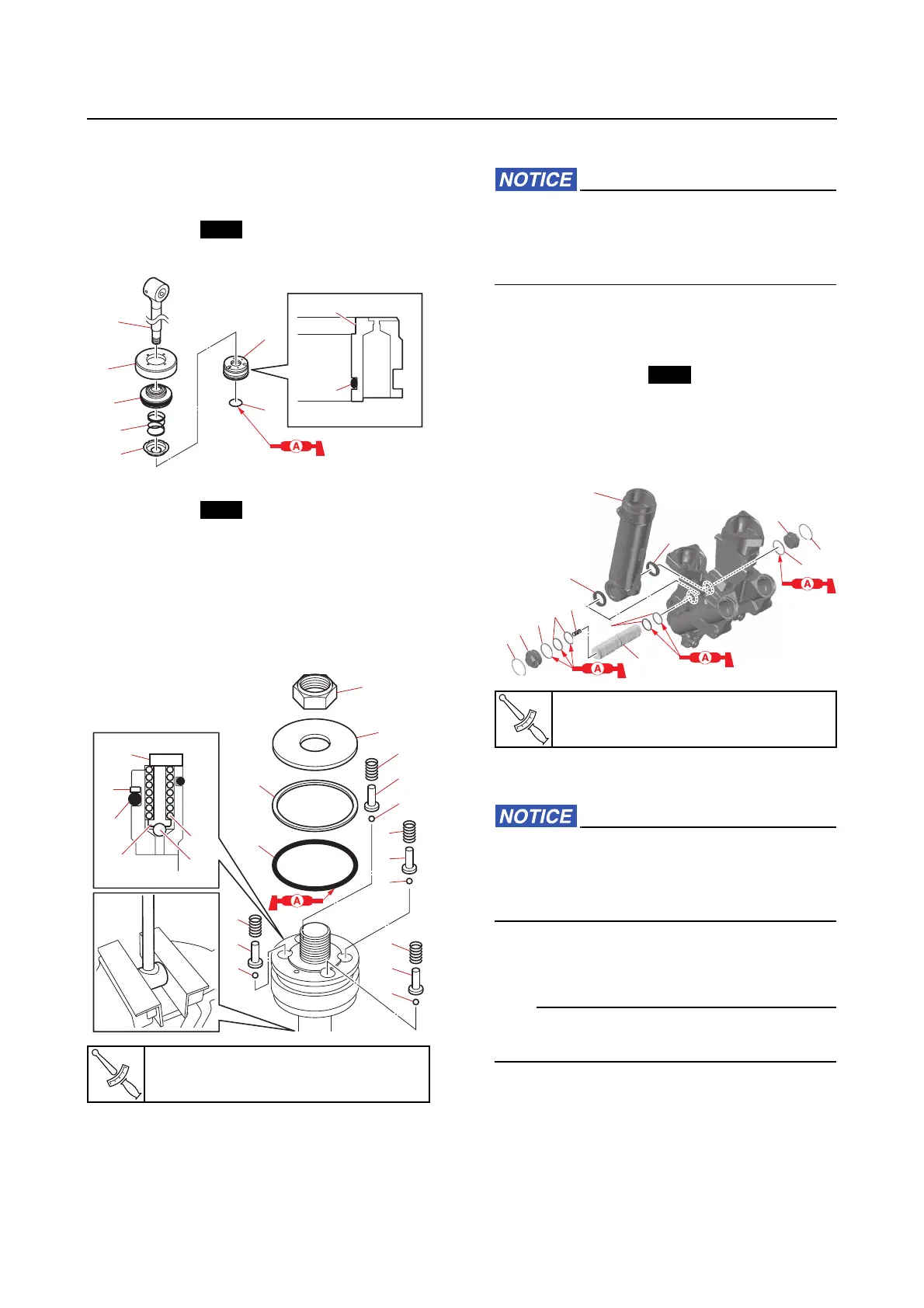

Yamaha F400A 2022 - Installing the Tilt Cylinder; Installing the Trim Ram

9-66
PTT cylinder
• Tilt cylinder end screw “1”
• Tilt cylinder end “2”
• Spring “3”
• Adapter “4”
• O-ring “5”
•Tilt piston “6”
3. Install:
• O-ring “1”
• Backup ring “2”
• Balls “3”
• Absorber valve pins “a”
• Springs “b”
•Washer “4”
• Tilt piston nut “5”
Installing the tilt cylinder
When assembling the PTT unit, do not use
a rag. Otherwise, dust and particles could
get on the PTT unit components, causing
poor performance.
1. Install:
• Spacers “1”
• Tilt cylinder “a”
• O-rings “2”, “3”
• Lower mounting shaft “4”
• Spring “5”
• Lower mounting shaft caps “6”
• Circlips “7”
Installing the trim ram
When assembling the PTT unit, do not use
a rag. Otherwise, dust and particles could
get on the PTT unit components, causing
poor performance.
1. Fill:
•PTT fluid
TIP:
Fill the trim cylinders with the recommended
fluid up to the proper level “a”.
T
R
.
.
Tilt piston nut “5”
65 N·m (6.5 kgf·m, 48 lb·ft)
New
2
3
6
6
5
5
4
1
a
New
5
4
2
1
3
4
2
1
3
b
b
a
a
3
b
a
3
b
a
3
b
a
T
R
.
.
Lower mounting shaft cap “6”
65 N·m (6.5 kgf·m, 48 lb·ft)
New
a
1
1
2
3
7
6
4
2
3
6
5
7
