Yamaha F400A 2022 - Checking the Intake Manifold; Installing the Intake Manifold

Intake manifold
6-26

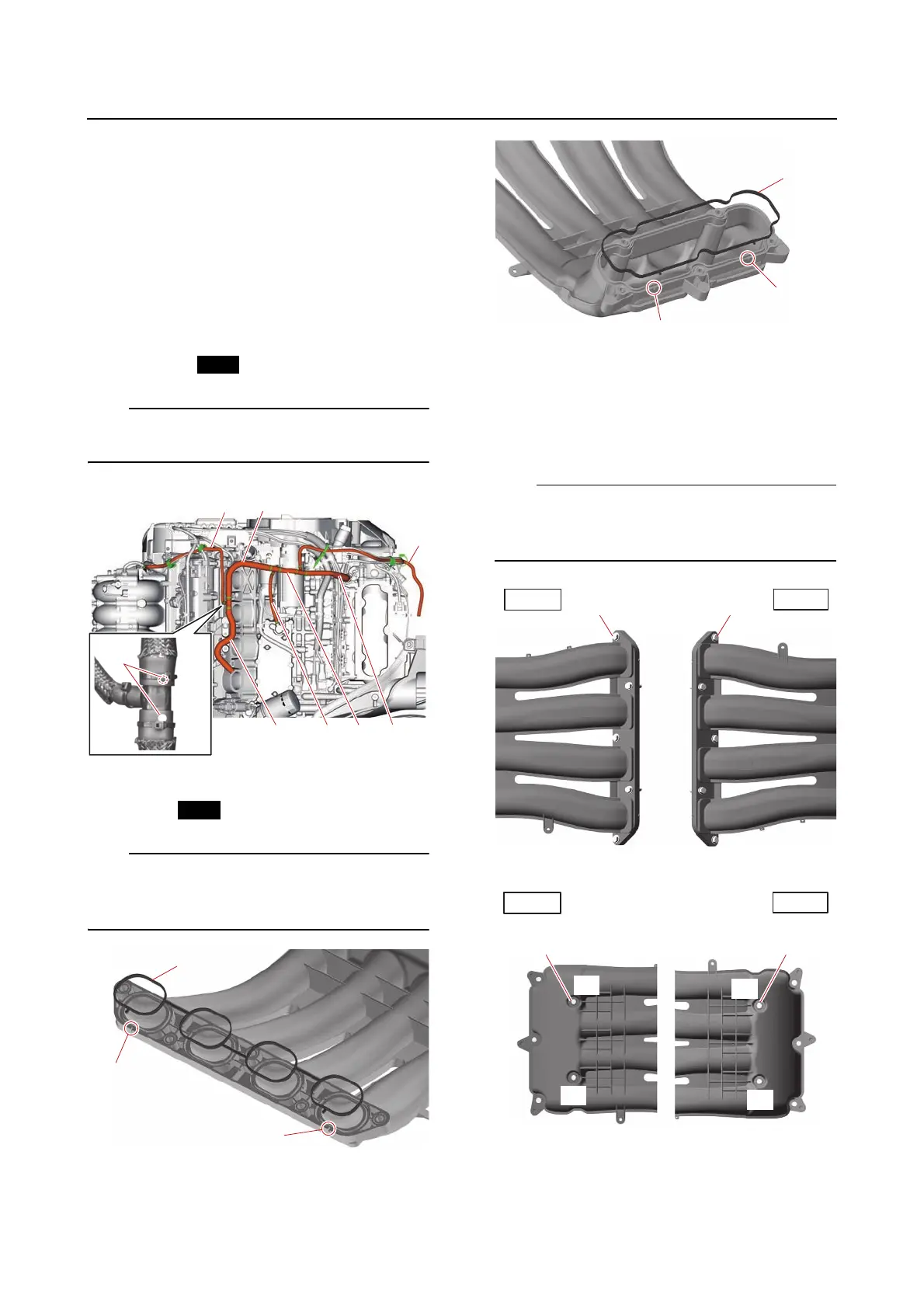

Checking the intake manifold
1. Check:
• Intake manifold
Cracked/damaged → Replace.
Installing the intake manifold
1. Install:
• Cooling water hose “1”, “2”, “3”, “4”, “5”,
“6”, “7”
•Joint
•Plastic tie
TIP:
Make sure that the paint marks “a” on the
cooling water hoses face outward.
2. Install:
•Gasket
TIP:
Make sure to fit the tabs on the gaskets “1”
and “2” properly and firmly with the grooves
“a” and “b” in the intake manifold.
3. Install:
• Intake manifold
(temporarily)
4. Tighten:
• Intake manifold bolt
TIP:
Tighten the intake manifold bolts “1” and “2”
to the specified torque in the order [1], [2], and
so on.
New
1
57
2346
a
New
1
a
a
2
b
b
[3][3]
[4][4]
[1][1]
[2][2]
[5][5]
[3][3]
[4][4]
[1][1]
[2][2]
[5][5]
PORT
STBD
11
[4][4]
[1][1]
[2][2]
[3][3]
[2][2]
[3][3]
[6][6]
[5][5]
[4][4]
[1][1]
[6][6]
[5][5]
PORT
STBD
22
