Yamaha F400A 2022 - Checking the Exhaust Guide; Installing the Exhaust Guide

9-26
Exhaust guide
Checking the exhaust guide
1. Clean:
• Removed parts
2. Check:
•Exhaust guide
Corroded/cracked → Replace.

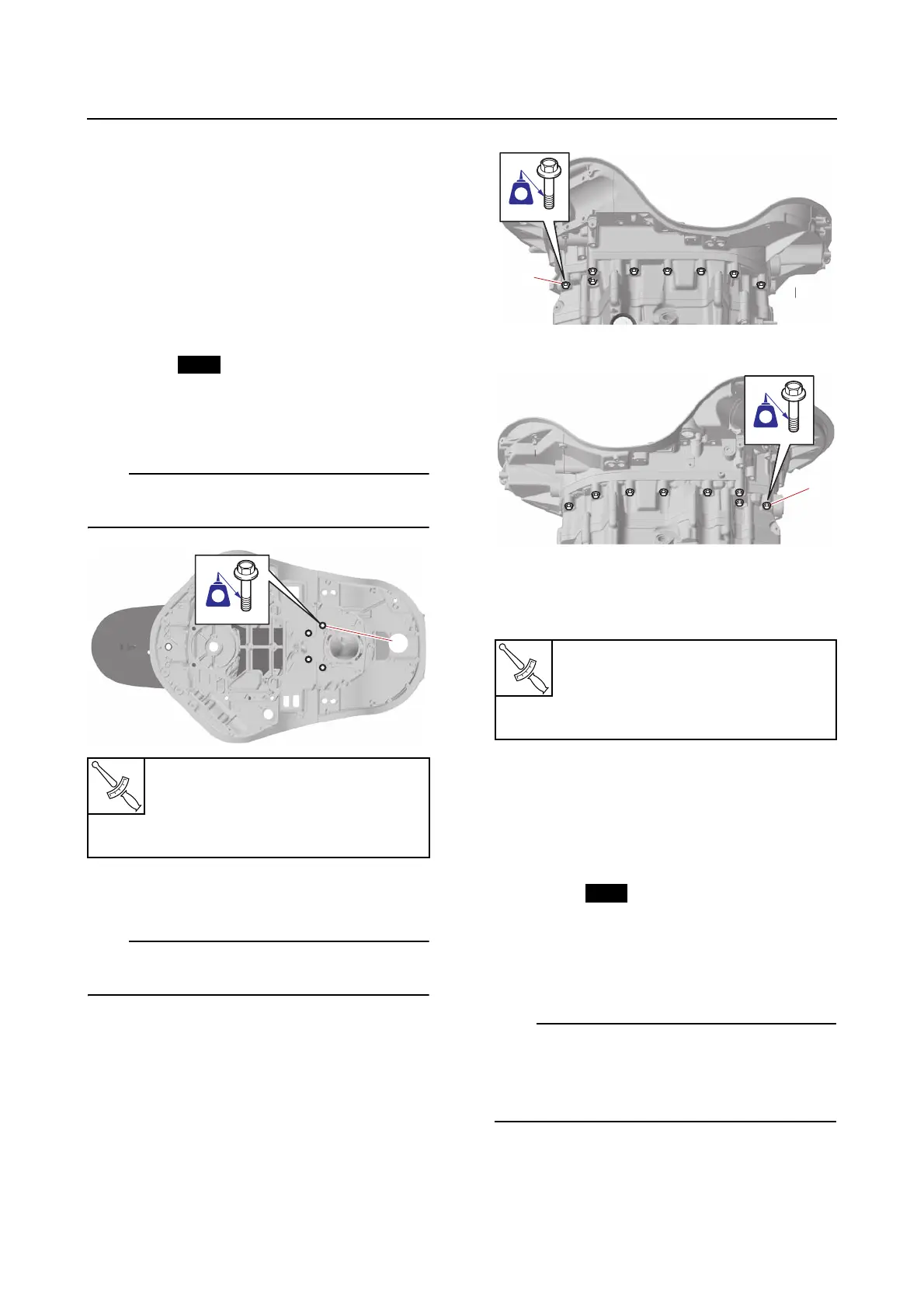

Installing the exhaust guide
1. Install:
•Dowels
•Gasket
•Exhaust guide
2. Tighten:
• Exhaust guide bolts (M10 × 80 mm) “1”
TIP:
Tighten the bolts “1” to the specified torques
in 2 stages and in the order [1], [2], and so on.
3. Tighten:
• Exhaust guide bolts (M10 × 70 mm) “1”
TIP:
Tighten the bolts “1” to the specified torques
in 2 stages and in the order [1], [2], and so on.
A
B
4. Install:
•Bracket
•Grommets
• Cap seals
•Bracket
•Holder
•Gasket
•Nipple
• Silencer
•Clamps “1”
•Hose “2”
TIP:
• Face the mark “a” on the hose “2” to star-
board.
• Install each clamp “1” in the direction
shown.
T
R
.
.
Exhaust guide bolt (M10 × 80
mm) “1”
1st: 42 N·m (4.2 kgf·m, 31 lb·ft)
2nd: 42 N·m (4.2 kgf·m, 31 lb·ft)
New
1
[2][2][2]
[1][1][1]
[4][4][4]
[3][3][3]
[2][2]
[1][1]
[4][4]
[3][3]
572572
LTLT
A. PORT
B. STBD
T
R
.
.
Exhaust guide bolt (M10 × 70
mm) “1”
1st: 42 N·m (4.2 kgf·m, 31 lb·ft)
2nd: 42 N·m (4.2 kgf·m, 31 lb·ft)
1
[6][6][6]
[5][5][5]
[4][4][4]
[3][3][3] [2][2][2]
[16][16][16]
[14][14][14]
[6][6]
[5][5]
[4][4]
[3][3]
[2][2]
[16][16]
[15][15][15][15][15]
[14][14]
572572
LTLT
1
[7][7][7]
[8][8][8]
[9][9][9]
[1][1][1]
[10][10][10]
[11][11][11]
[12][12][12]
[13][13][13]
[7][7]
[8][8]
[9][9]
[1][1]
[10][10]
[11][11]
[12][12]
[13][13]
572572
LTLT
New
