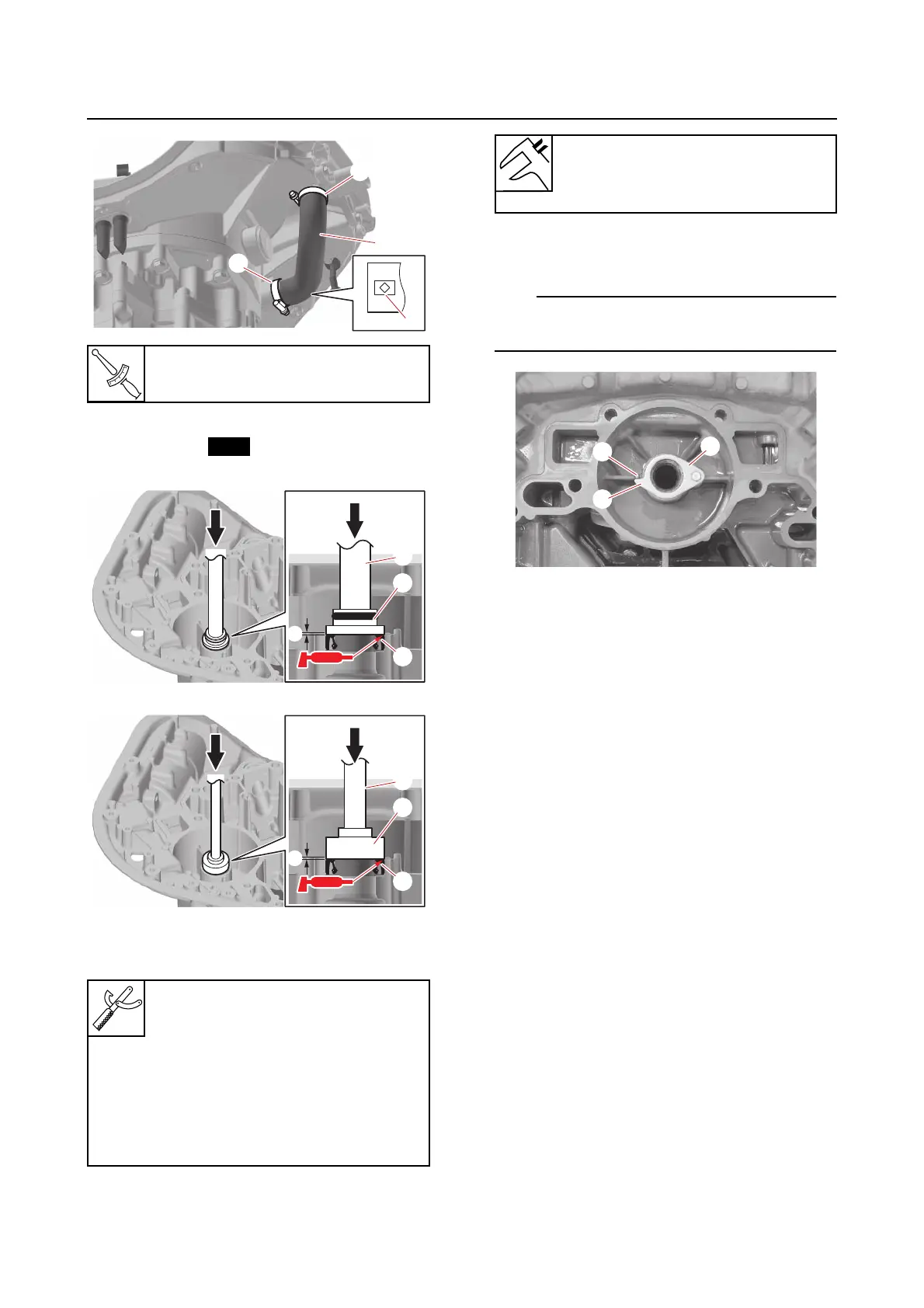

Yamaha F400A 2022 - Page 495

Exhaust guide
9-27
5. Install:
• Oil seal “1”
A
B
6. Install:
•Plate “1”
TIP:
Install the plate “1” so that the portion “a” of
the plate contacts the protrusion “b”.
T
R
.
.
Clamp screw
1.3 N·m (0.13 kgf·m, 0.95 lb·ft)
A. Worldwide
B. USA and Canada
Driver rod LL “2”
90890-06605
Ball bearing attachment “3”
90890-06636
Driver handle (small) “4”
YB-06229
Driveshaft seal installer “5”
YB-06348
1
2
a
1
New
2
1
a
3
WR-No.2WR-No.2WR-No.2WR-No.2WR-No.2
4
1
5
a
WR-No.2WR-No.2WR-No.2WR-No.2WR-No.2
Installation depth “a”
0.30–0.90 mm (0.0118–0.0354
in)
1
b
a
