5-49
Starter motor

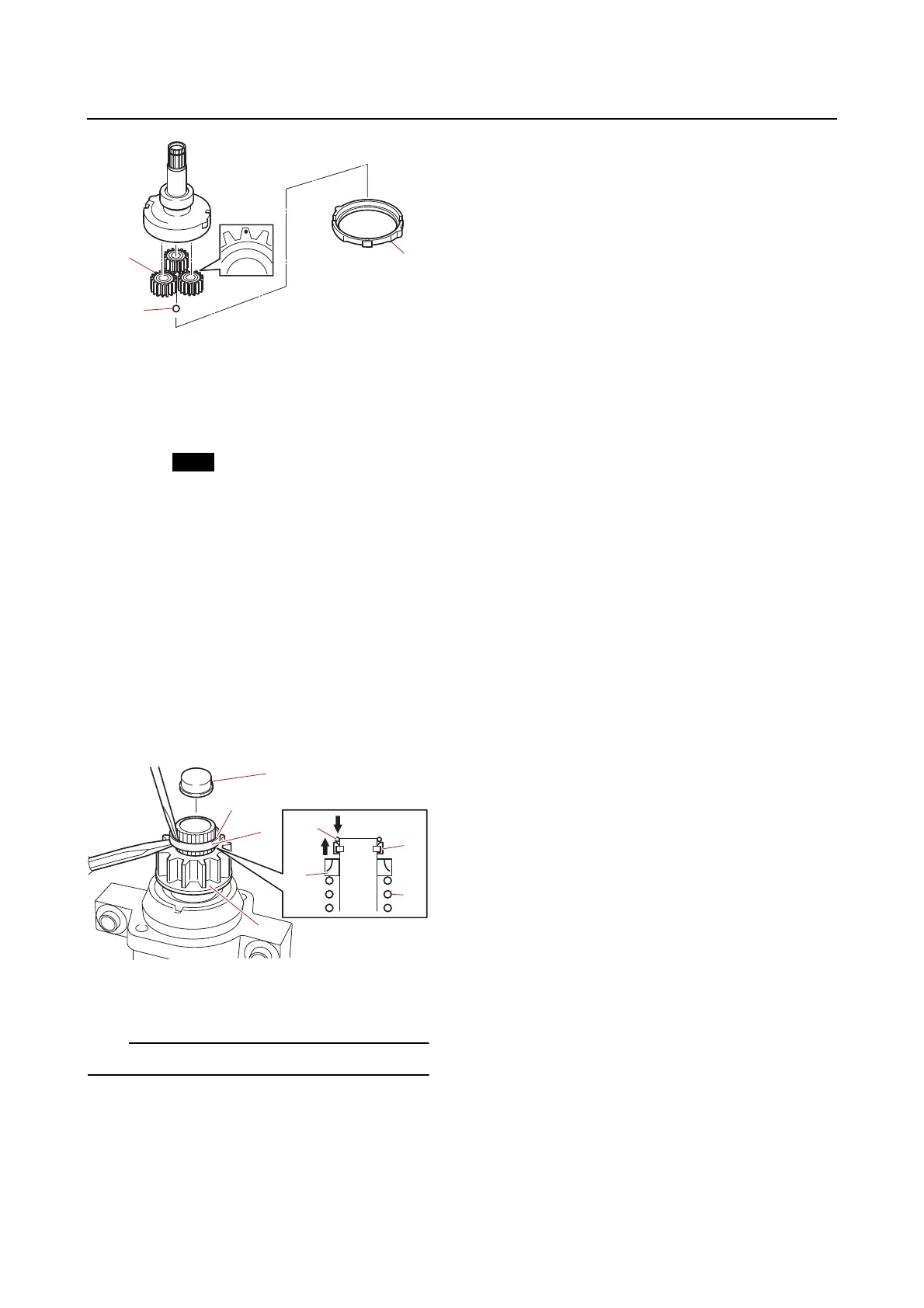

3. Assemble:
• Starting motor gear assembly
• Lever assembly
•Cover
• Starting motor body
•O-ring
4. Install:
• Spring
•Pinion
•Pinion stopper
•Clip
•Cap
a. Install the spring “1”, pinion “2”, pinion
stopper “3”, and clip “4”.
b. Insert a flat-head screwdriver between
the pinion “2” and the pinion stopper
“3” to raise the pinion stopper “3” and
push in the clip “4”.
c. Install the cap “5”.
5. Install:
• Magnet switch assembly
TIP:
Some starter motors do not have a shim.
Installing the starter motor
1. Install:
• Starter motor
See “Installing the starter motor” (7-29).
2. Install:
• Intake manifolds
See “Intake manifold” (6-24).
3
2
1
New
1
4
2
3
2
3
4
5
