Hose routing
2-60
Hose routing

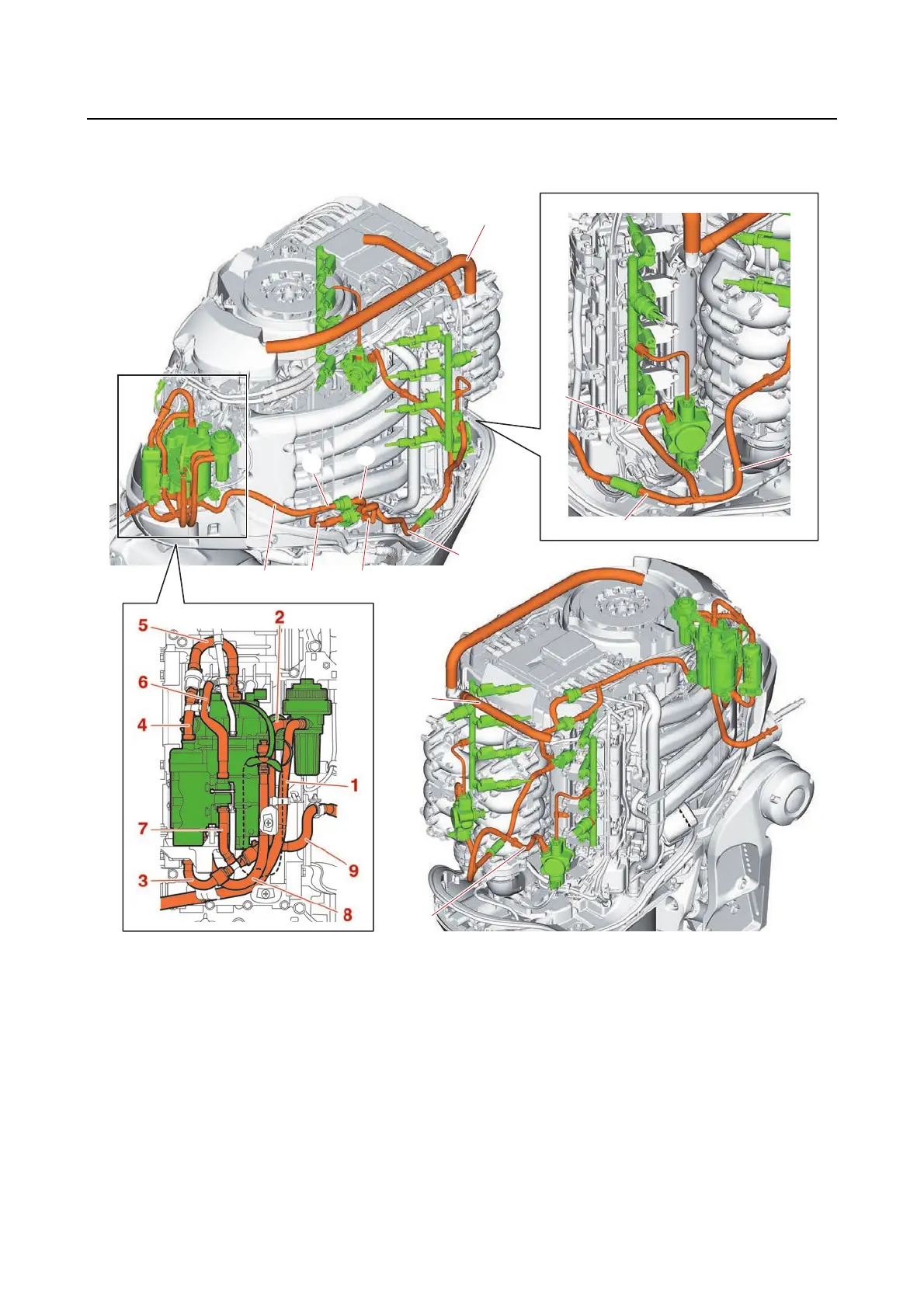

Fuel hose and blowby hose
18
14
13129
11
10
16
15
17
19
17
1. Joint to fuel filter assembly
2. Fuel filter assembly to joint
3. Joint to low-pressure fuel pump
4. Low-pressure fuel pump to fuel feed
valve
5. Fuel feed valve to vapor separator
6. Vapor separator to relief valve
7. Relief valve to joint
8. Vapor separator to drain joint
9. Vapor separator to joint
10. Joint to fuel feed valve
11. Fuel feed valve to relief valve
12. Relief valve to joint
13. Relief valve to fuel pressure sensor
14. Fuel pressure sensor to fuel strainer
15. Fuel strainer to joint
16. Joint to direct injection pump (PORT)
17. Joint to direct injection pump (STBD)
18. Cylinder head cover (PORT) to intake
silencer
19. Cylinder head cover (STBD) to cylinder
head cover (PORT)
