Yamaha F400A 2022 - Assembling the Oil Seal Housing

8-33
Drive shaft and lower case (regular rotation model)

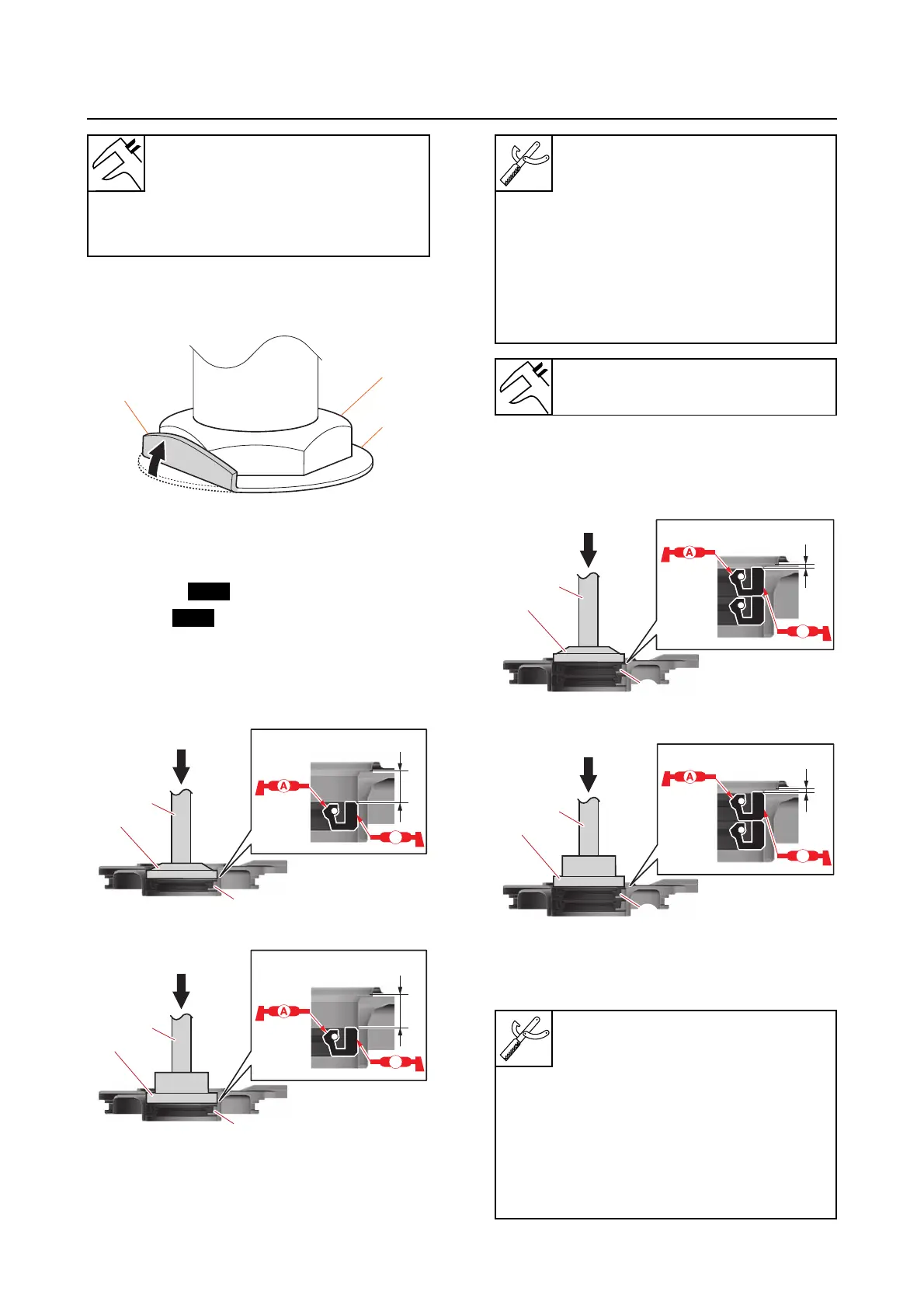

i. Bend the tab “a” on the claw washer
“1” to secure the drive shaft nut “2”.
Assembling the oil seal housing
1. Install:
•Oil seals
•O-ring
a. Install a new oil seal “1” in the oil seal
housing at the specified installation
depth “a”.
A
B
b. Install a new oil seal “1” in the oil seal
housing at the specified installation
depth “a”.
A
B
Motive torque
0.3–3.0 N·m (0.03–0.31 kgf·m,
0.2–2.2 lb·ft) (F400ASTU,
F400ASTX, F450AVTU,
F450AVTX)
A. Worldwide
B. USA and Canada
1
2
a
New
New
2
3
1
a
EPEP
4
5
1
a
EPEP
Driver rod LL “2”
90890-06605
Bearing outer race attachment
“3”
90890-06628
Driver handle (large) “4”
YB-06071
Bearing cup installer “5”
YB-06167
Installation depth “a”
8.25–8.75 mm (0.325–0.344 in)
A. Worldwide
B. USA and Canada
Driver rod LL “2”
90890-06605
Bearing outer race attachment
“3”
90890-06628
Driver handle (large) “4”
YB-06071
Bearing cup installer “5”
YB-06167
2
3
1
a
EPEP
4
5
1
a
EPEP
