Yamaha F400A 2022 - Installing the Electrical Management Box

Electrical management box
7-23

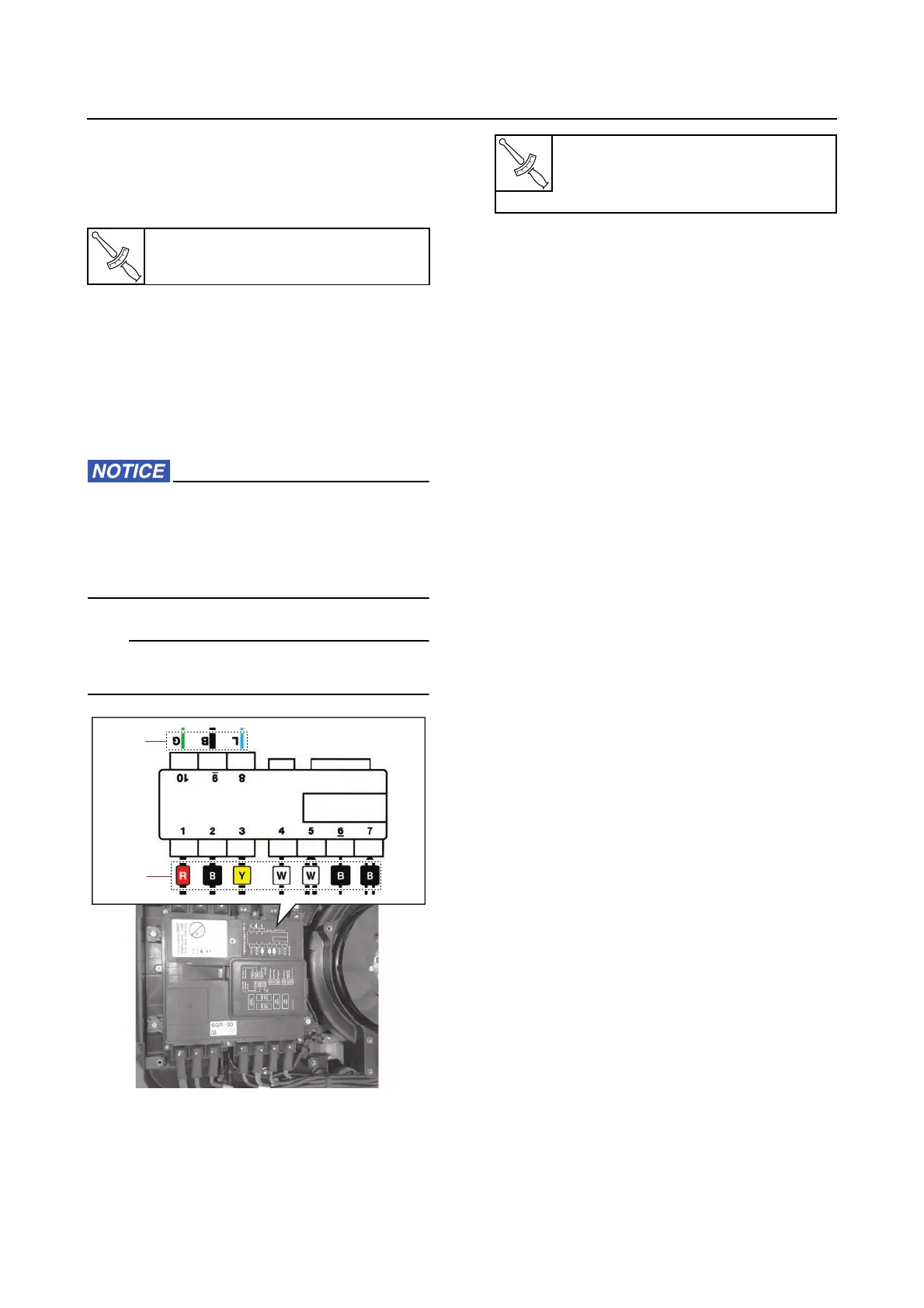

Installing the electrical management
box
1. Install:
•Fuses
2. Install:
• Fuse cover
• Electrical management box
•Caps
• Extension wire harness
• PTT ground lead (wire harness)
•Couplers
When tightening the electrical manage-
ment box terminal nuts, do not exceed the
specified torque. Otherwise, the base of the
electrical management box could be dam-
aged.
TIP:
Connect the specified leads to the terminals of
the electrical management box.
T
R
.
.
Fuse screw
3.2 N·m (0.32 kgf·m, 2.4 lb·ft)
a. Lead color
b. Tape color
a
b
T
R
.
.
Electrical management box termi-
nal nut
7.6 N·m (0.76 kgf·m, 5.6 lb·ft)
