Yamaha F400A 2022 - Timing Belt

7-42

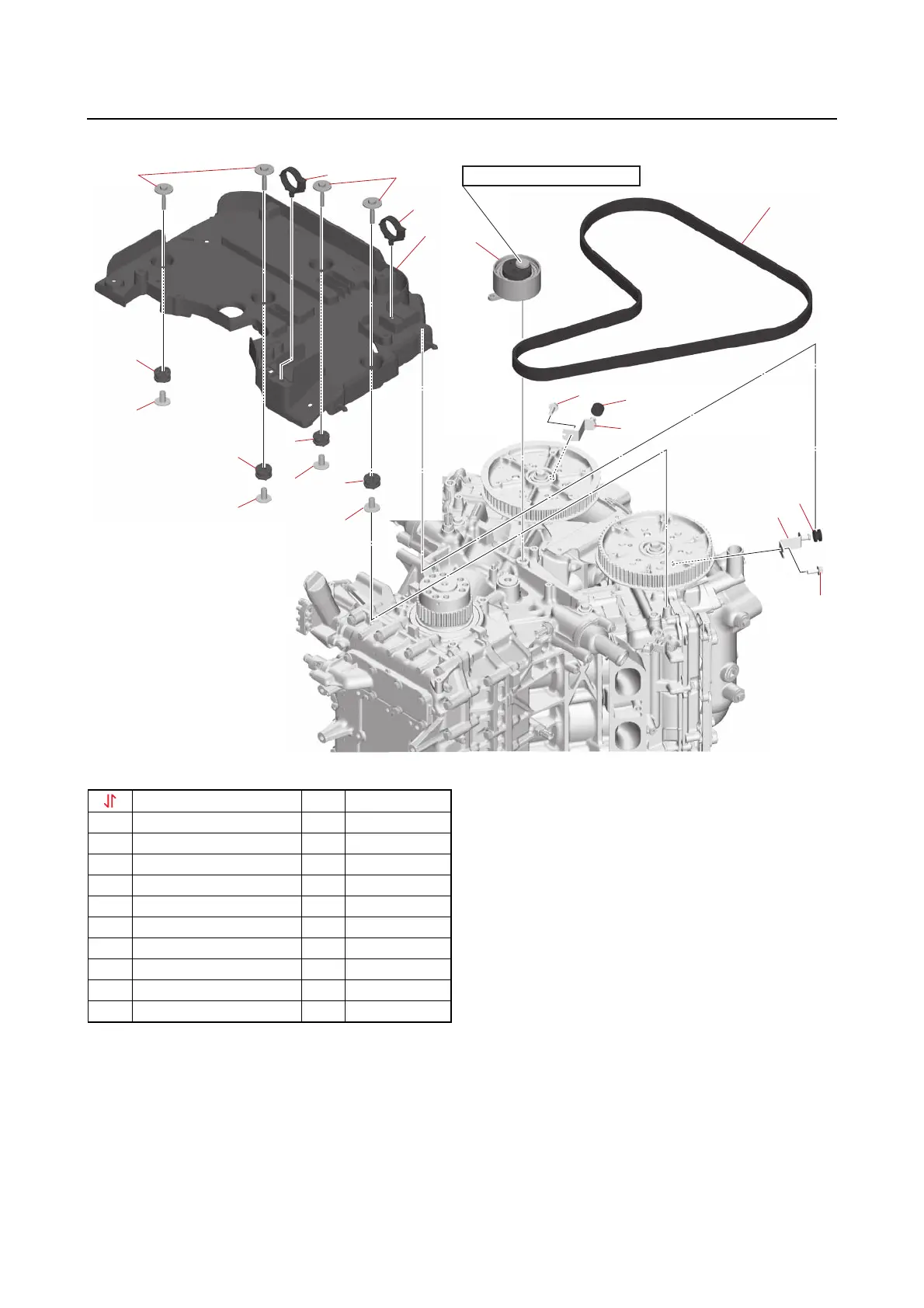

Timing belt
Timing belt
8
7
6
6
8
7
10
9
1
2
5
5
1
4
3
4
3
4
3
4
3
39 N
·
m (3.9 kgf
·
m, 29 lb
·ft
)
Part name
Q
’ty
Remarks
1Bolt M6
× 35 mm 4
2 Wire harness guide 1
3Collar 4
4 Grommet 4
5Holder 2
6 Grommet 2
7Bolt M6
× 16 mm 2
8 Bracket 2
9 Tensioner 1
10 Timing belt 1
