CL5 display calibration

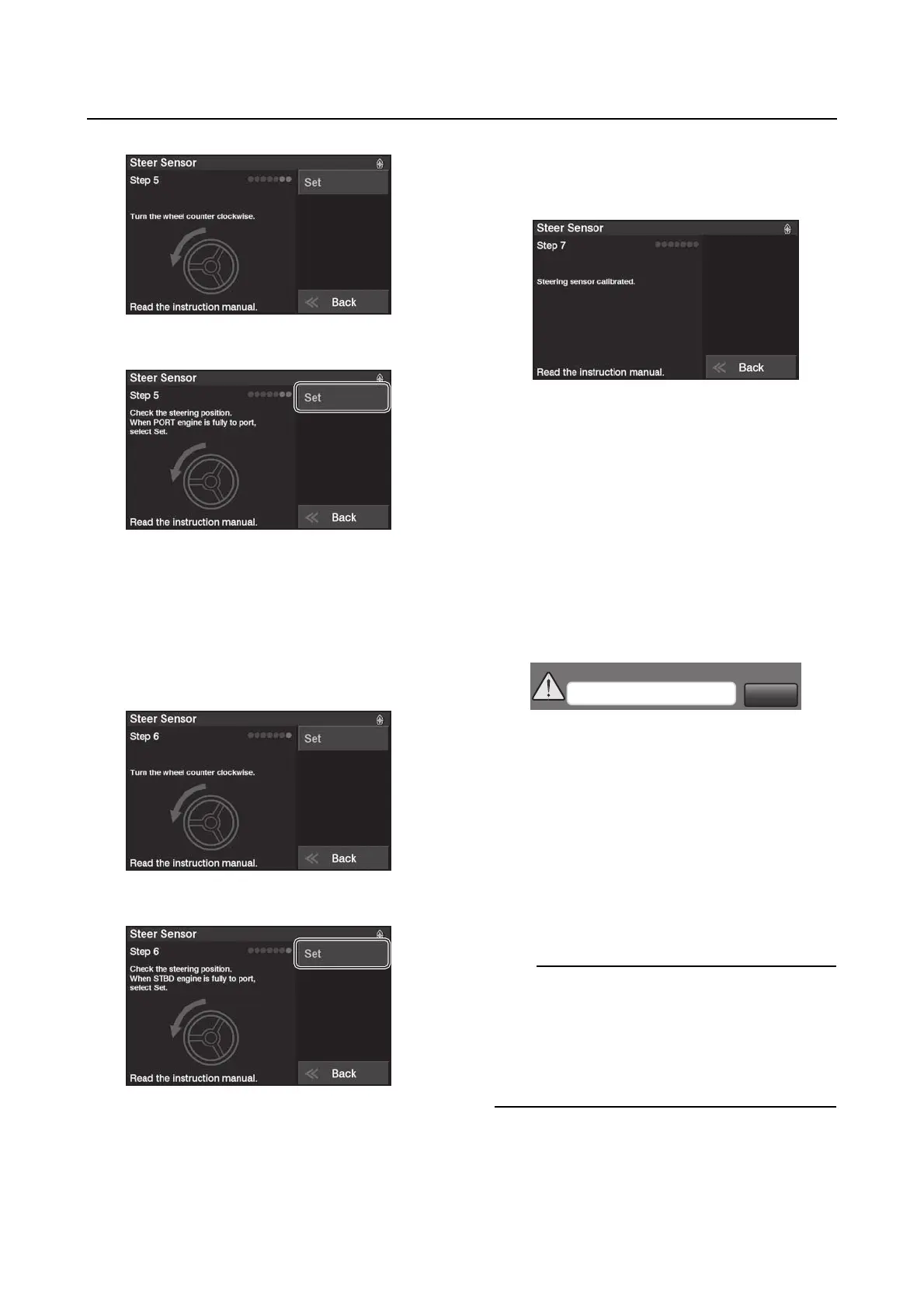

8. Turn the steering wheel counterclockwise
until the starboard outboard motor reach-
es full PORT lock and the message ap-
pears. Confirm the starboard outboard
motor is at full PORT lock, and then tap
“Set”.
9. Once the calibration is complete, a mes-
sage will appear verifying the procedure is
completed.
10. If there is an invalid value when calibrating
the steering sensor, a notification will ap-
pear. Perform the complete calibration
procedure again.
11. If the steering system still requires calibra-
tion, a warning notification will appear.
The engine will not start until calibration is
performed again.
Toe Adjust
You can freely adjust the toe angle of outboard
motors according to the structure of the hull
on which they are mounted.
This should be determined by on-water test-
ing.
• For twin engines without BCU, triple engines
(Toe Adjust: numerical value input)
• For twin engines with BCU (Wedge/Toe: nu-
merical value input, adjust up and down)
• For quad engines (Inner/Outer: numerical
value input)
CHECK SYSTEM !
Confirm
- Port Engine -
Steering calibration needed.
