Yamaha F400A 2022 - Checking the Extension; Assembling the Extension; Installing the Extension

Extension (except for X-transom model)
8-10
Checking the extension
1. Check:
•Extension
Cracked/damaged → Replace.
Assembling the extension
1. Install:
• Nipples “1”, “2”
•O-rings
Installing the extension

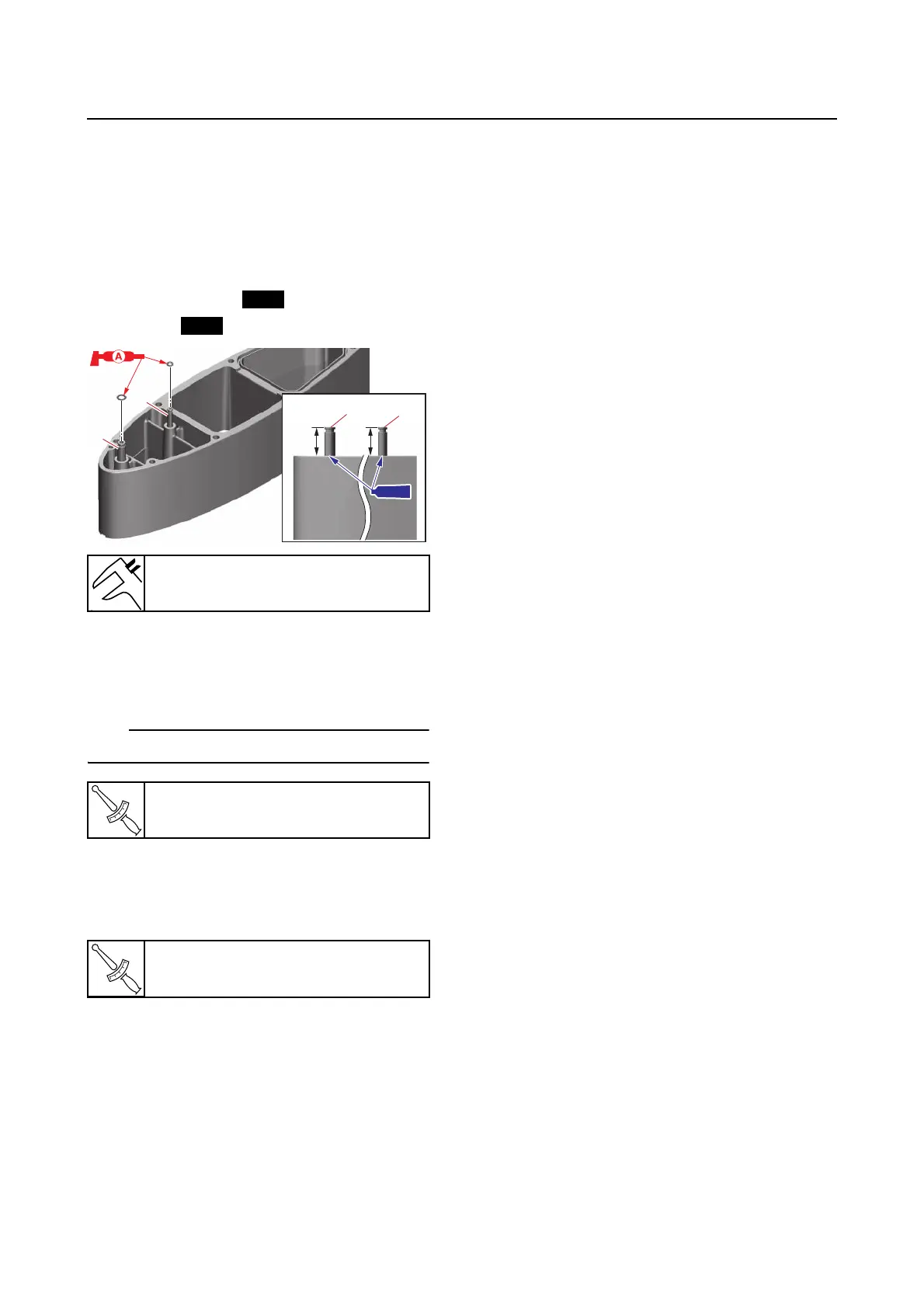

1. Install:
• Stud bolts
TIP:
Point the flat end of the stud bolt up.
2. Install:
•Rubber seal(s)
•Dowels
•Extension(s)
Installation height “a”
32.2–32.8 mm (1.27–1.29 in)
T
R
.
.
Stud bolt (lower case mounting)
23 N·m (2.3 kgf·m, 17 lb·ft)
T
R
.
.
Extension mounting bolt
47 N·m (4.7 kgf·m, 35 lb·ft)
New
New
12
a
1
2
a
