Yamaha F400A 2022 - Vapor Separator and High-Pressure Fuel Pump

6-9

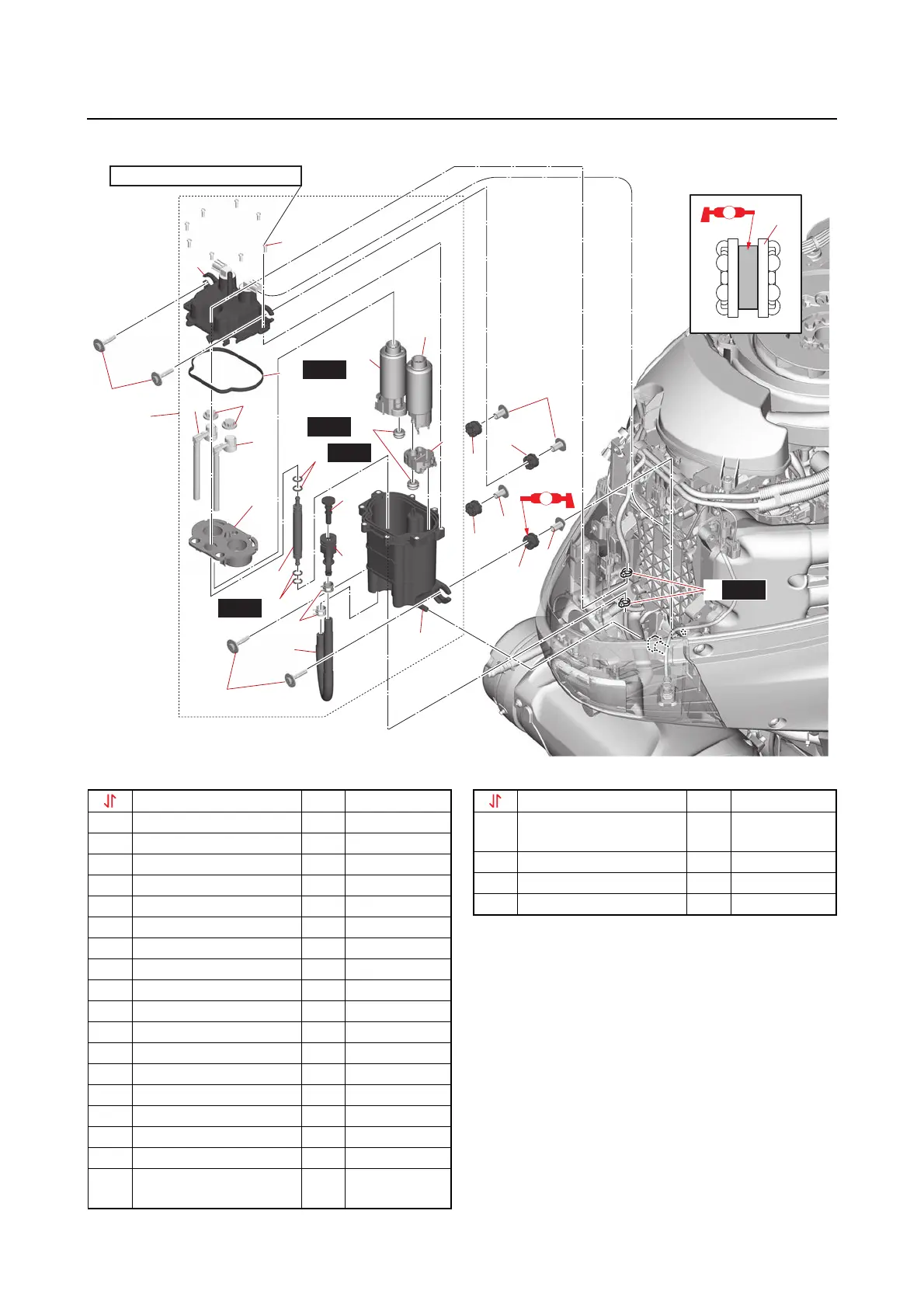

Vapor separator and high-pressure fuel pump
Vapor separator and high-pressure fuel pump
New
AA
AA
New
New
New
New
1
2
3
4
5
6
8
9
7
22
2
10
11
12
13
17
17
14
15
16
15
18
19
20
3
4
4
4
4
3
21
2.0 N
·
m (0.20 kgf
·
m, 1.5 lb
·ft
)
Part name
Q
’ty
Remarks
1 Plastic tie 2
2Bolt M6
× 35 mm 4
3Collar 4
4 Grommet 4
5 Vapor separator 1
6Clamp 2
7Plug 1
8 Quick connector 1
9Hose 1
10 Screw M4
× 12 mm 8
11 Cover 1
12 Gasket 1
13 Rubber damper 2
14 Bracket 1
15 O-ring 4
16 Pipe 1
17 Pipe 2
18
High-pressure fuel
pump
1
Sub, white
inlet
19
High-pressure fuel
pump
1
Main, gray
inlet
20 Damper 2
21 Bracket 1
22 Case 1
Part name
Q
’ty
Remarks
