Yamaha F400A 2022 - Outboard Motor Manual Steering Method

2-17
Bracket unit
Outboard motor manual steering method
If the SBW (Steer by Wire) system does not operate due to a malfunction, the outboard motor can be
steered manually.
Usually, the pipe inside the steering actuator moves as it is turned by the motor force, but when the
outboard motor is steered manually, the shaft is turned to move the pipe.

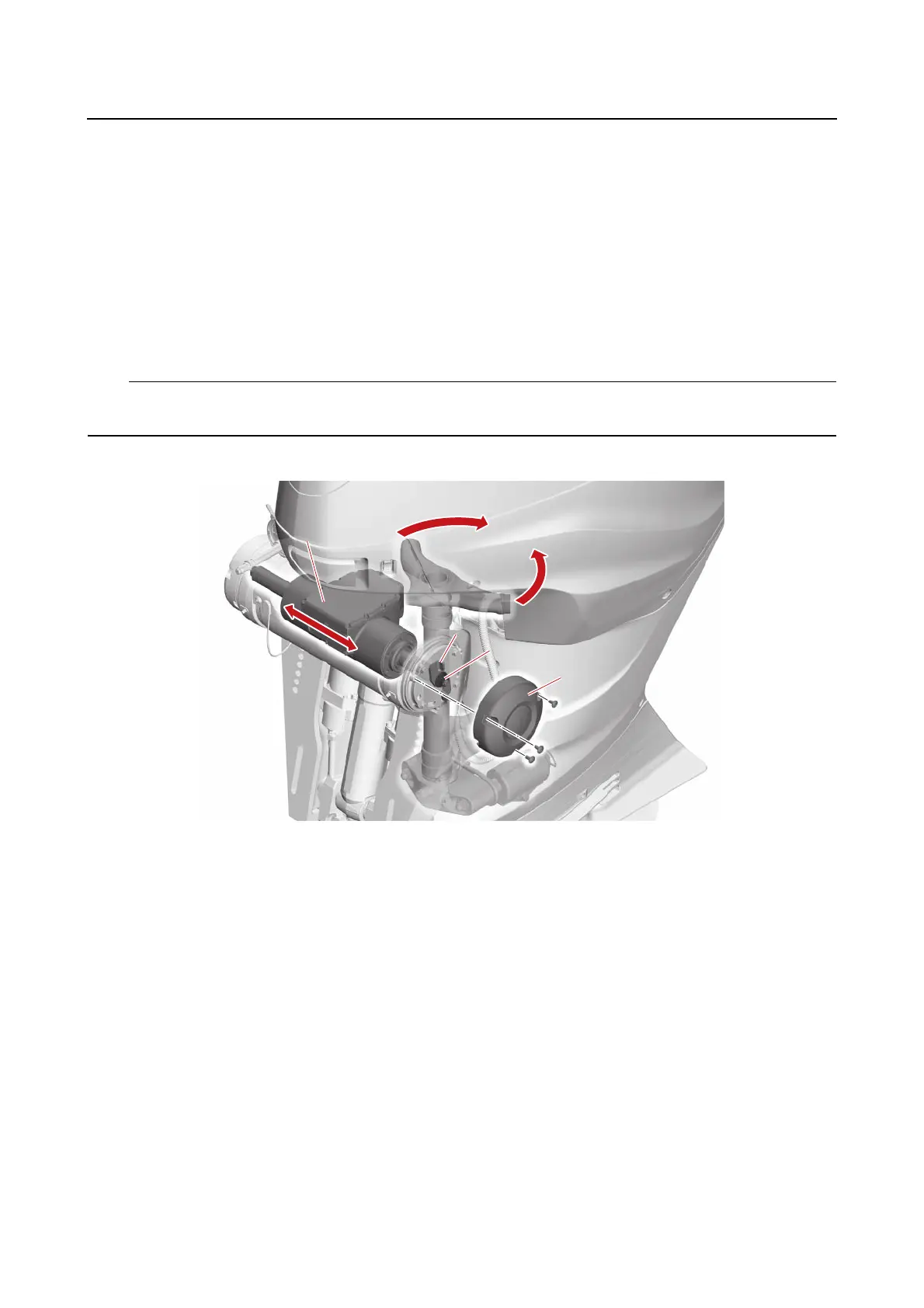

[Steering the outboard motor manually]
1. Remove the clamp bracket cover (PORT) “1” by removing the bolts.
2. Loosen the nut “2” until it contacts the cotter pin.
3. Turn the lever “3” that is installed to the shaft.
TIP:
When the lever is turned clockwise, the steering actuator “4” moves toward the port side and the out-
board motor is steered to the starboard side.
4. When the outboard motor is positioned at the desired steering angle, tighten the nut “2”.
1
2
3
4
1
2
3
4
