Electrical component and wire harness routing
5-10

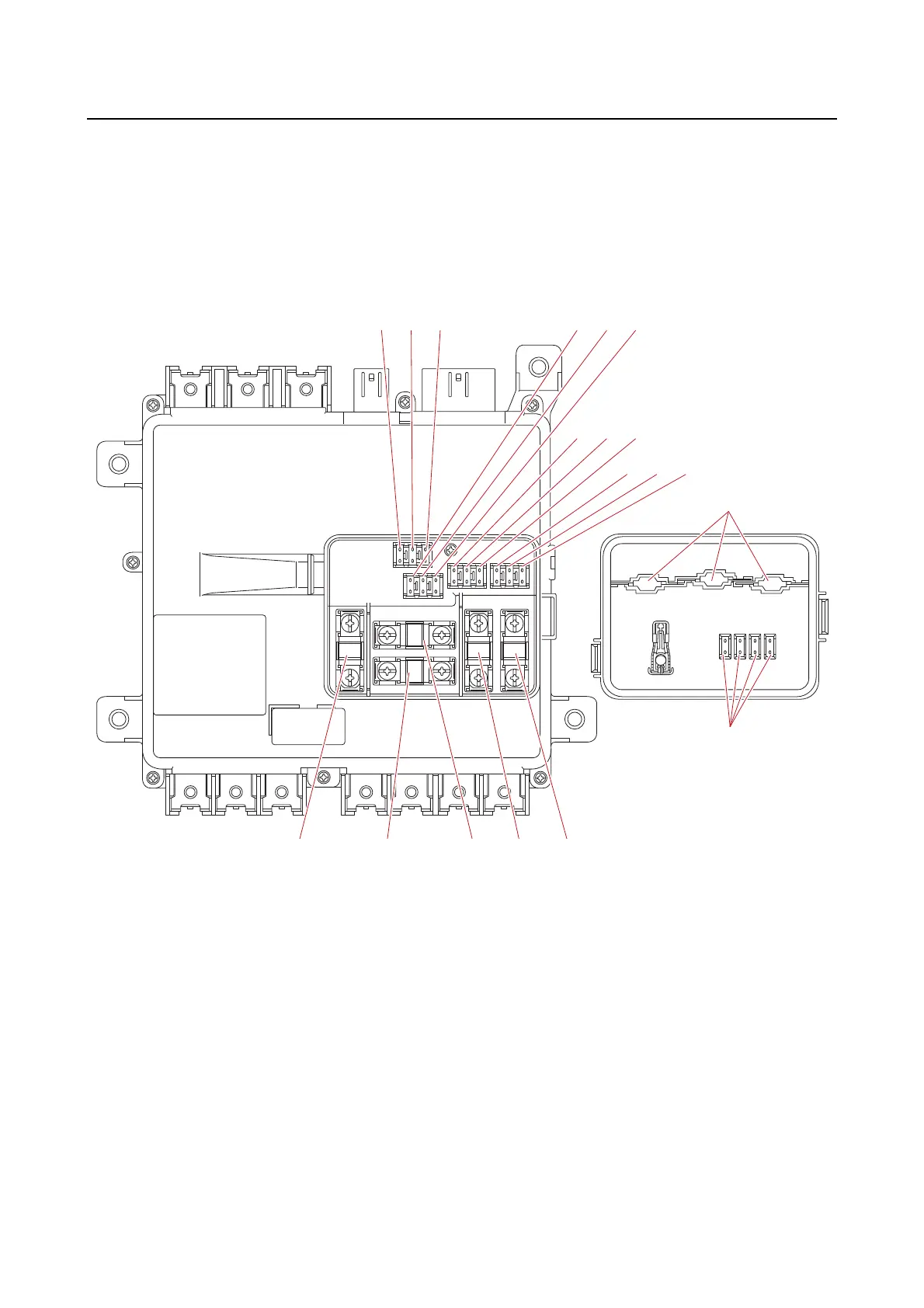

Fuse holder (Electrical management box)
123 4567
1098
1 2 3 4 5 6
7 8 9
10 11 12
19
18
1716151413
1. Fuse (15A) (fuel pump 2)
2. Fuse (15A) (fuel pump 1)
3. Fuse (30A) (fuel pumps)
4. Fuse (10A) (RC-ECU)
5. Fuse (20A) (main switch/PTT switch)
6. Fuse (10A) (ETV)
7. Fuse (15A) (shift actuator)
8. Fuse (30A) (starter relay)
9. Fuse (20A) (DI system 2)
10. Fuse (20A) (DI system 1)
11. Fuse (30A) (engine ECU/ignition coil)
12. Fuse (10A) (fuel feed pump)
13. Fuse (100A) (power STRG)
14. Fuse (70A) (engine main 1)
15. Fuse (70A) (engine main 2)
16. Fuse (70A) (isolator 2)
17. Fuse (70A) (isolator 1)
18. Fuse (100A, 70A, 70A) (spare)
19. Fuse (30A, 20A, 15A, 10A) (spare)
