Yamaha F400A 2022 - Installing the Power Unit

Power unit assembly
7-17

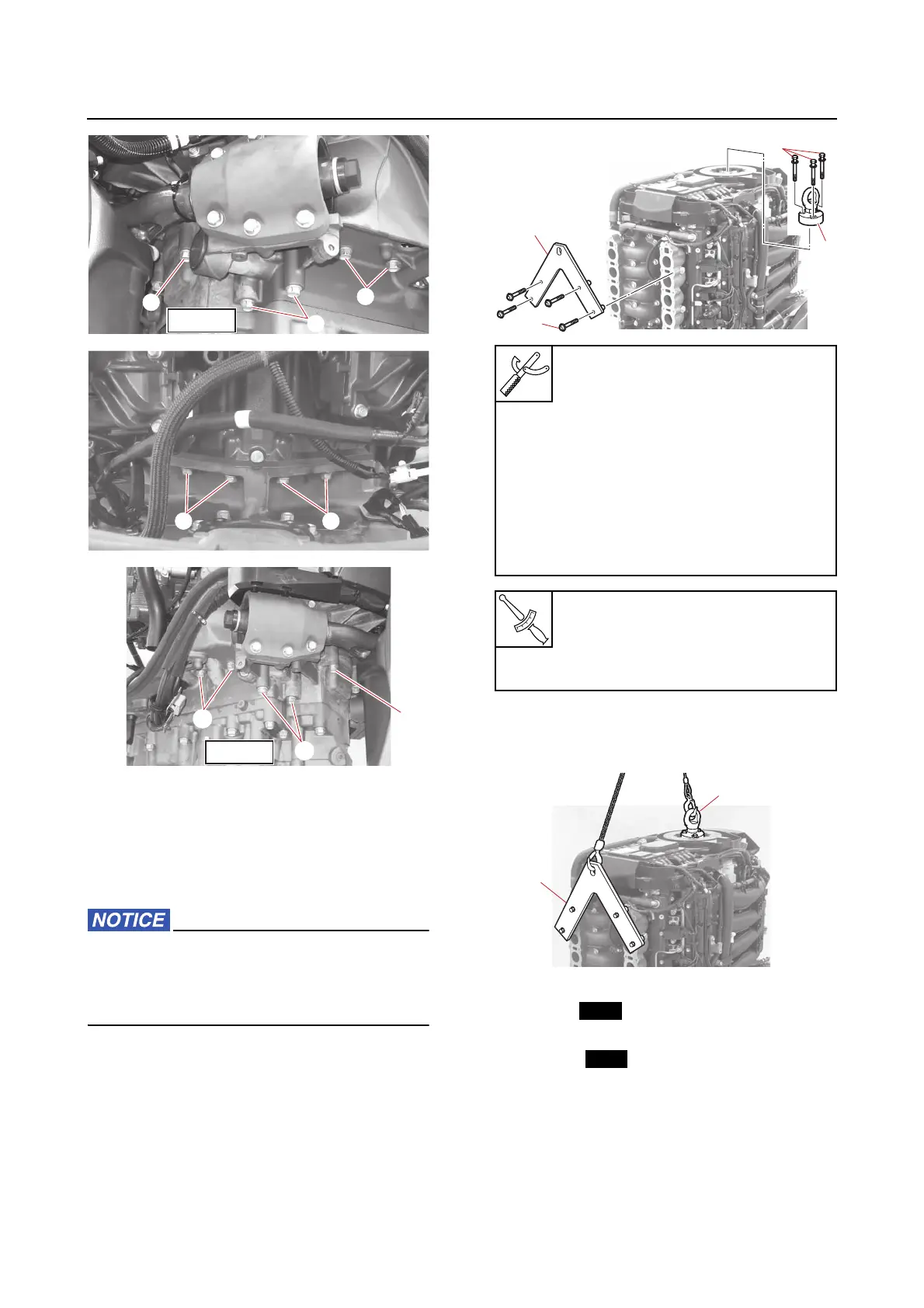

Installing the power unit
1. Clean:
• Power unit matching surface
2. Install:
• Special service tool
When lifting the outboard motor, make sure
to use the specified special service tool.
Other bolts and hanging jigs could bend or
break, causing the outboard motor to fall.
3. Install:
• Lifting harness
(onto the special service tool “1” and “2”)
4. Install:
•O-ring
•Dowels
•Gasket
• Power unit
a. Install a new O-ring “1” into the flange
“2” and install the dowels and new gas-
ket onto the exhaust guide.
1
2
1
PORT
33
1
2
1
STBD
Lifting eye “1”
90890-06953
Bolt hexagon with washer “2”
90890-06821
Balance hanger “3”
90890-06460
Bolt set “4”
90890-06969
Bolt hexagon with washer “2”
YB-06821
T
R
.
.
Lifting eye bolt
36 N·m (3.6 kgf·m, 27 lb·ft)
Balance hanger bolt
18 N·m (1.8 kgf·m, 13 lb·ft)
2
1
4
3
1
2
New
New
