Yamaha F400A 2022 - Cooling System; Cooling Diagram

2-53
Cooling system
Cooling system

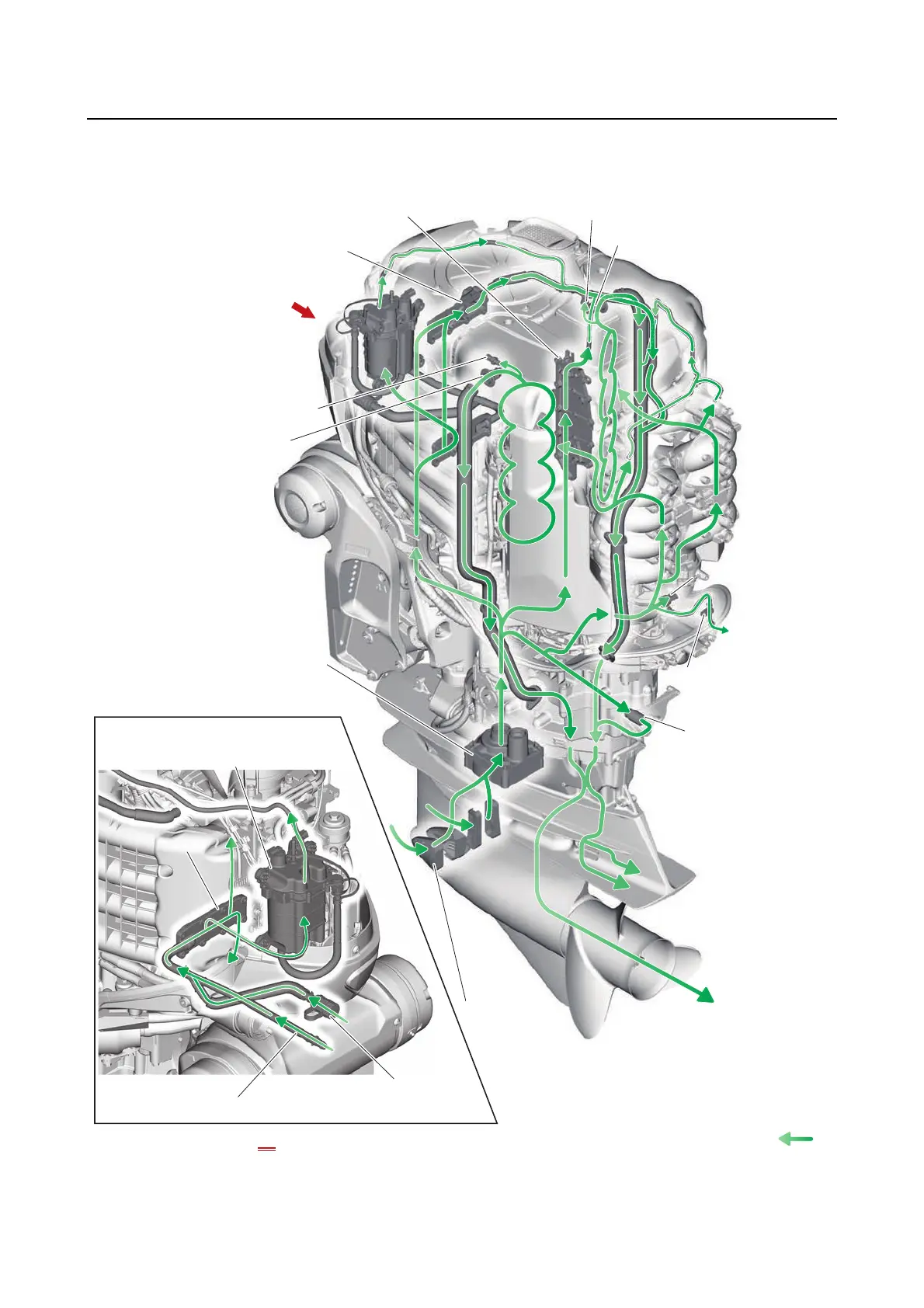

Cooling diagram
32. Multi engines flushing adapter
31. Flushing devise
26. Water jacket
(lower)
26. Water jacket
(lower)
30. V
apor separator
(fuel cooler)
3. Water pump
18. Thermostat (STBD)
16. Thermo sensor (STBD)
23. Oil cooler
28. Water jacket (upper)
15. Thermo sensor (PORT)
17. Thermostat (PORT)
2. Water inlet
22. PCV
11. Cooling water
pilot hole
11. Cooling water
pilot
hole
8. Water pressure
sensor
8. Water pressure
sensor
B
A
AA
A
