Yamaha F400A 2022 - Removing the Steering Arm

Steering actuator and steering arm
9-35

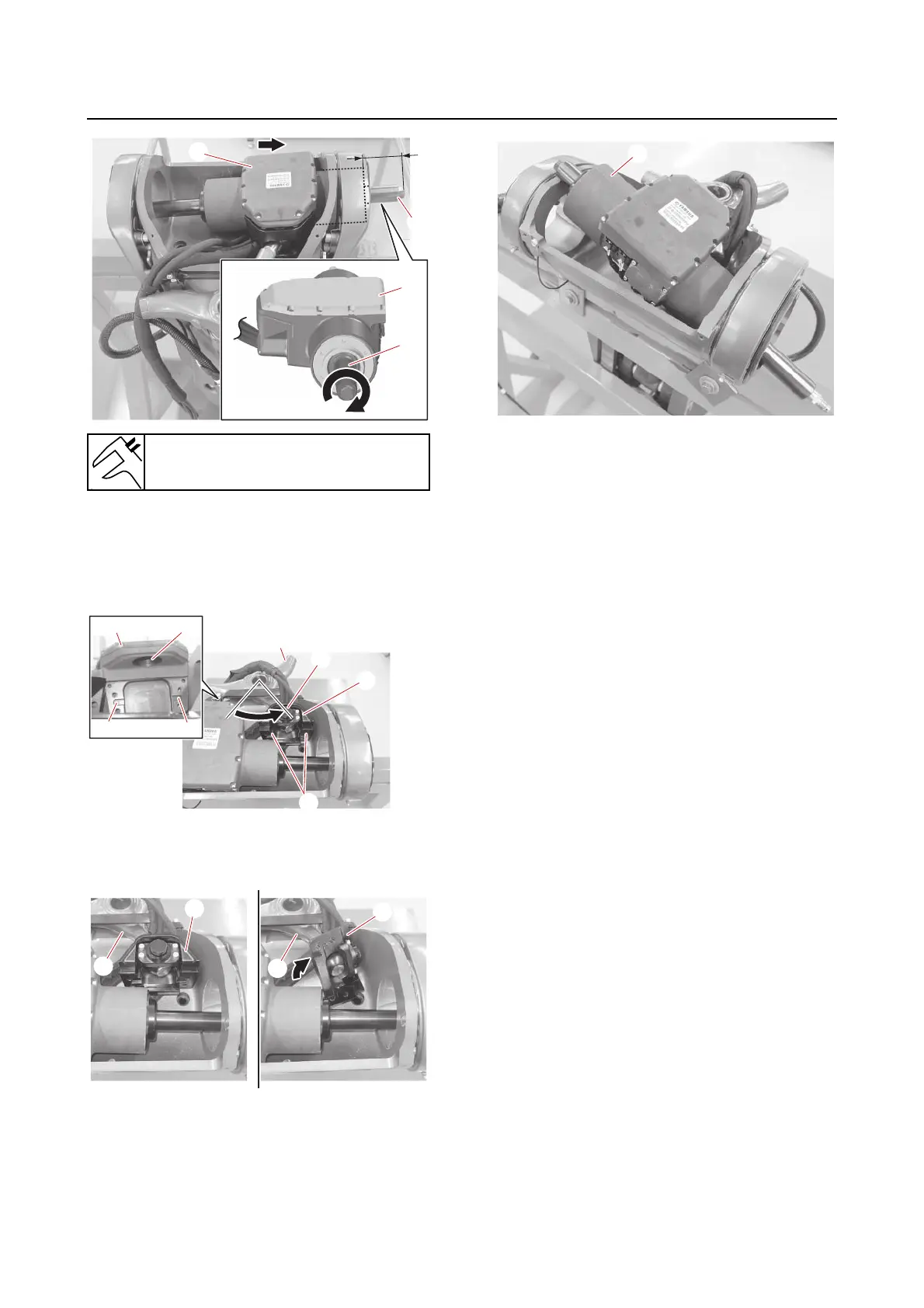

e. Remove the protrusions “a” and “b” on
the steering arm joint “c” from the hole
“d” and slots “e” in the steering actua-
tor “1”, and then move the steering arm
“2” in the direction of the arrow.
f. Turn the steering arm joint “a” as
shown and remove the joint from the
steering arm “1”.
g. Remove the steering actuator “1”.
Removing the steering arm
1. Remove:
• Ground lead
• Circlip
•Steering yoke “1”
•Washers
•Steering arm
•O-ring
• Steering arm bushings
Length “b”
50 mm (1.97 in)
b
1
1
a
a
a
c
b
d1
2
e e
a
a
1
1
1
