Electronic control system
2-36

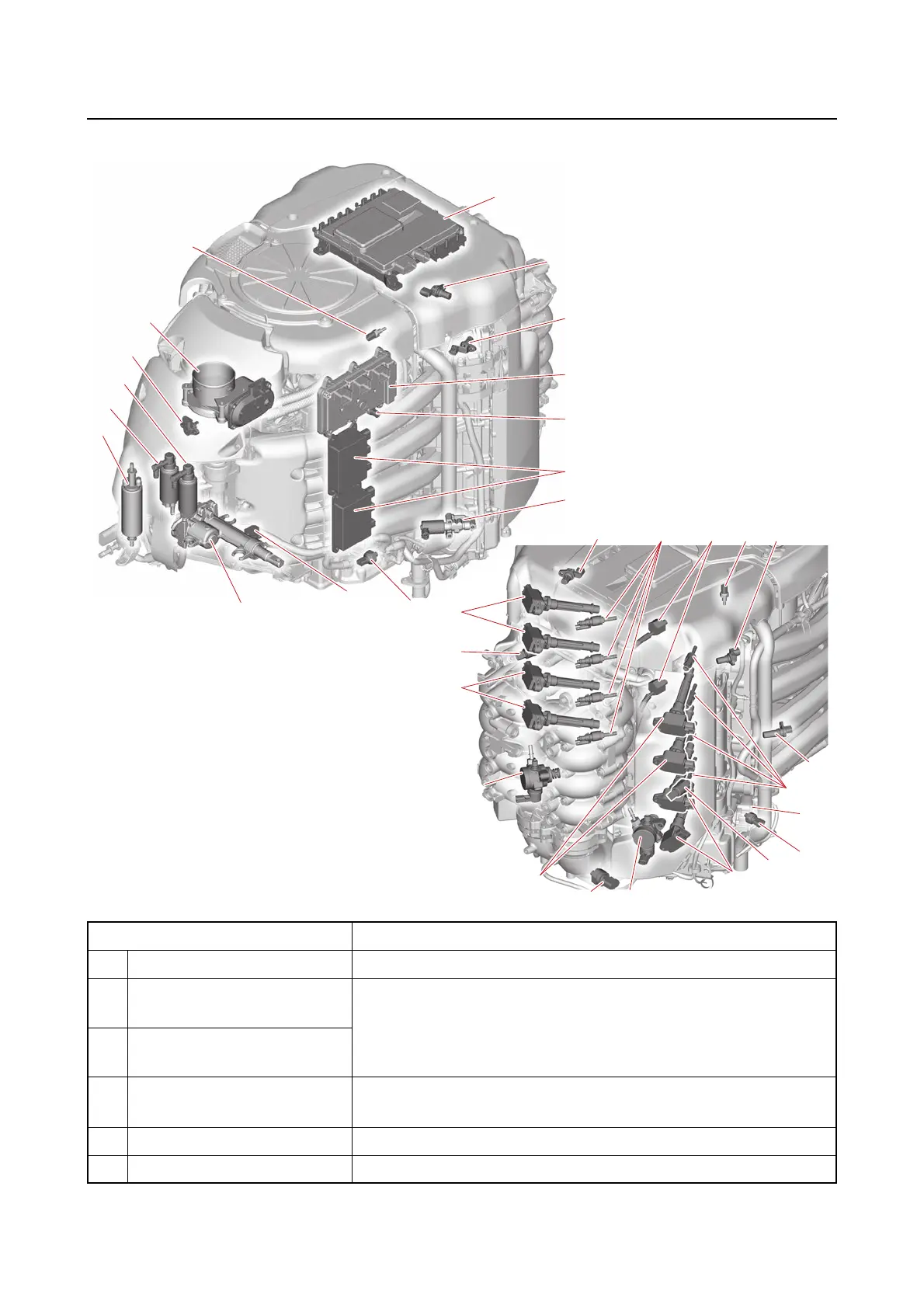

Electrical components
Part name Function
1 Low-pressure fuel pump Sends the fuel from the fuel tank to the vapor separator.
2
High-pressure fuel pump
(sub)
Pressurizes the fuel and sends the fuel to the direct injection
pump.
3
High-pressure fuel pump
(main)
4
Intake air pressure/tem-
perature sensor
Detects the intake air pressure and intake air temperature.
5 ETV Opens and closes the throttle valve using an electric motor.
6 Thermo sensor Detects cooling water temperature.
7
8
9
10
11
12
13
14
17
18
15
16
1
2
4
3
5
6
21
8
22
17
21
24
13
25
17
18
6 23
19
19
17
20
