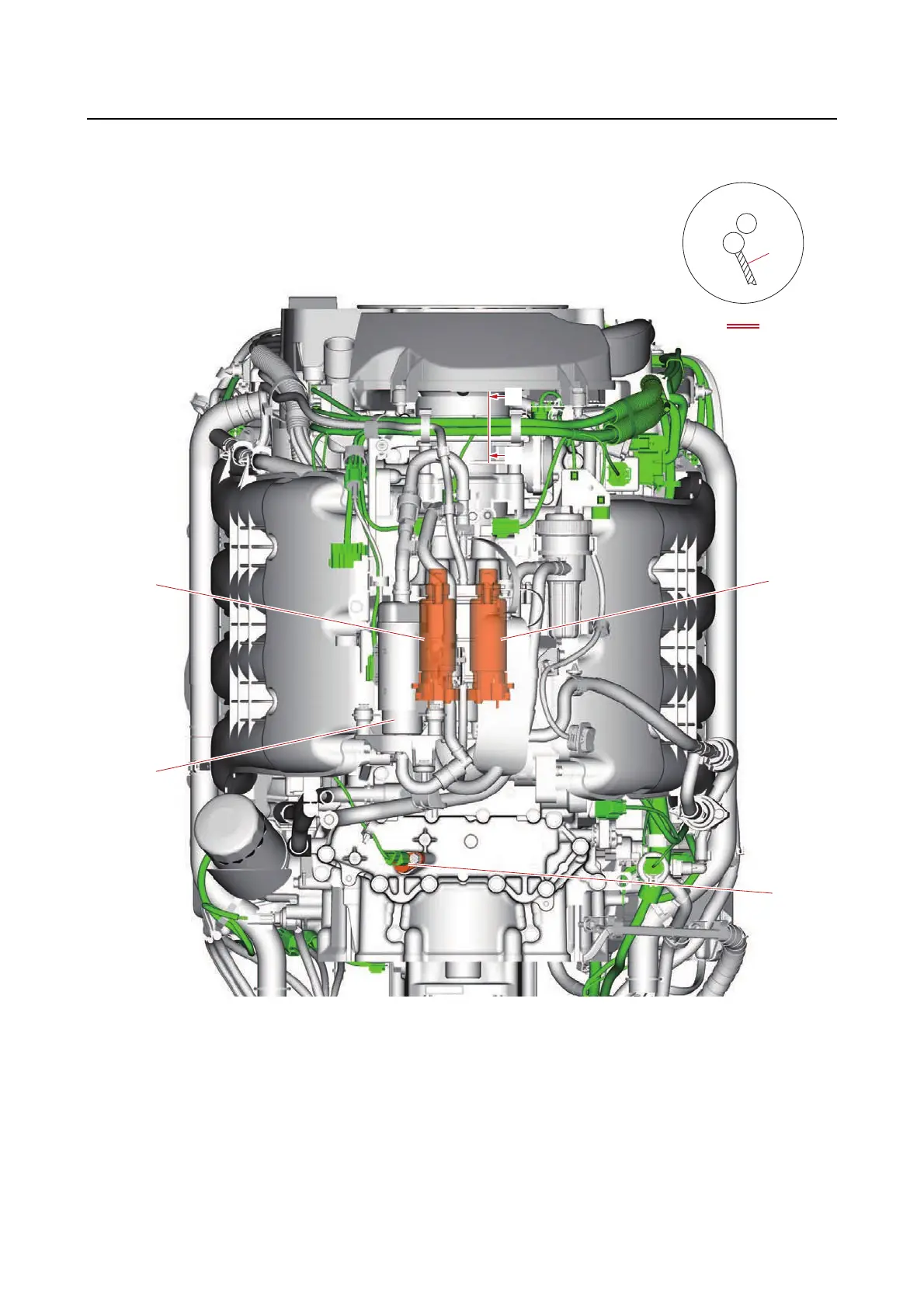

Electrical component and wire harness routing
Front
1. High-pressure fuel pump (main)
2. Crankshaft position sensor
3. Low-pressure fuel pump
4. High-pressure fuel pump (sub)
A. Do not route the intake air pressure/
temperature sensor lead between the 2
main portions of the wire harness.
