Yamaha F400A 2022 - Fuel Hose Assembly

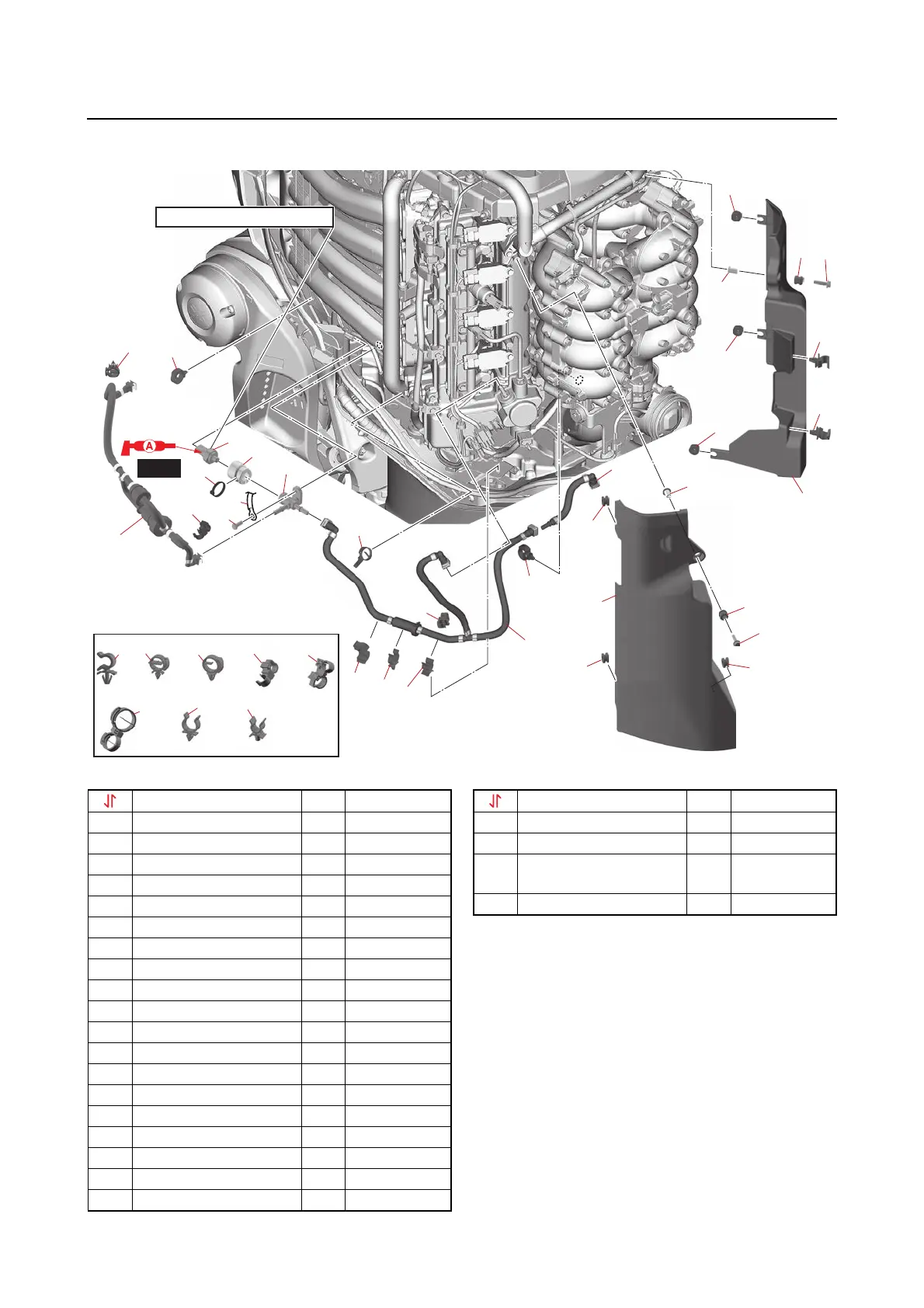

Fuel hose assembly
6-12
Fuel hose assembly
New
12
8
9
18
19
20
21
22
23
13
14
12
1
6
6
6
3
6
2
6
6
7
5
1
7
5
4
4
7
11
15
12
13 14
16
17
17
16
11
15
13
10
23 N
·
m (2.3 kgf
·
m, 17 lb
·ft
)
Part name
Q
’ty
Remarks
1Bolt M6
× 25 mm 2
2 Cover (PORT) 1
3 Cover (STBD) 1
4Collar 2
5 Grommet 2
6 Grommet 6
7Holder 2
8 Fuel hose assembly 1
9 Fuel hose assembly 1
10 Fuel hose assembly 1
11 Holder 1
12 Holder 2
13 Holder 2
14 Holder 1
15 Holder 1
16 Holder 1
17 Holder 1
18 Bolt M6
× 16 mm 1
19 Ground lead 1 Disconnect.
20 Plastic tie 1
21 Cover 1
22 Sensor 1
Fuel pres-
sure
23 Joint 1
