Yamaha F400A 2022 - Installing the Cooling Water Hose

9-12
Cooling water hose and gear oil changing hose
k. Align the white paint marks “c” on the
hose (gear oil) “4” and hose (air) “5”,
and then fasten the grommet “6” using
new plastic ties “7”.

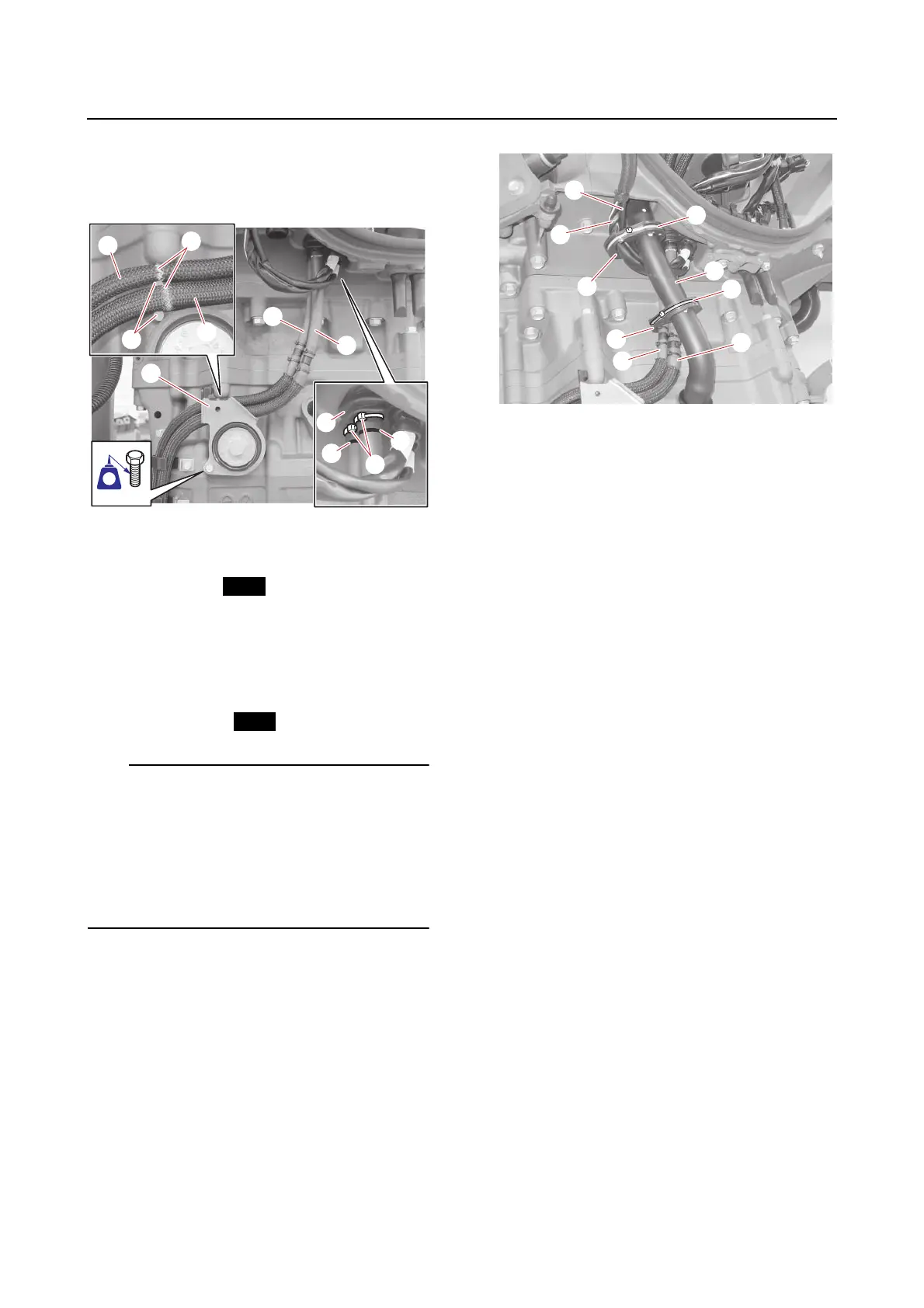

Installing the cooling water hose
1. Install:
• Rubber seals
• Joints (oil pan side)
• Joints (exhaust guide side)
• Cooling water hose (oil pan side) (STBD)
• Cooling water hose (oil pan side) (PORT)
“1”
•Plastic ties “2”
TIP:
• Route the PTT motor lead “3” and PTT sen-
sor lead “4” through the grommet “a” on the
cooling water hose (oil pan side) (PORT) “1”.
• Route the hose (gear oil) “5” and hose (air)
“6” through the grommet “b” on the cooling
water hose (oil pan side) (PORT) “1”.
• Install new plastic ties “2” as shown.
2. Install:
• Cooling water hose (engine side)
See “Intake manifold” (6-24).
7
a
b
6
c
c
3
5
4
2
1
572572
LTLT
New
New
6
b
2
5
2
1
4
3
a
