Yamaha F400A 2022 - Installing the Propeller Light Bracket

9-6

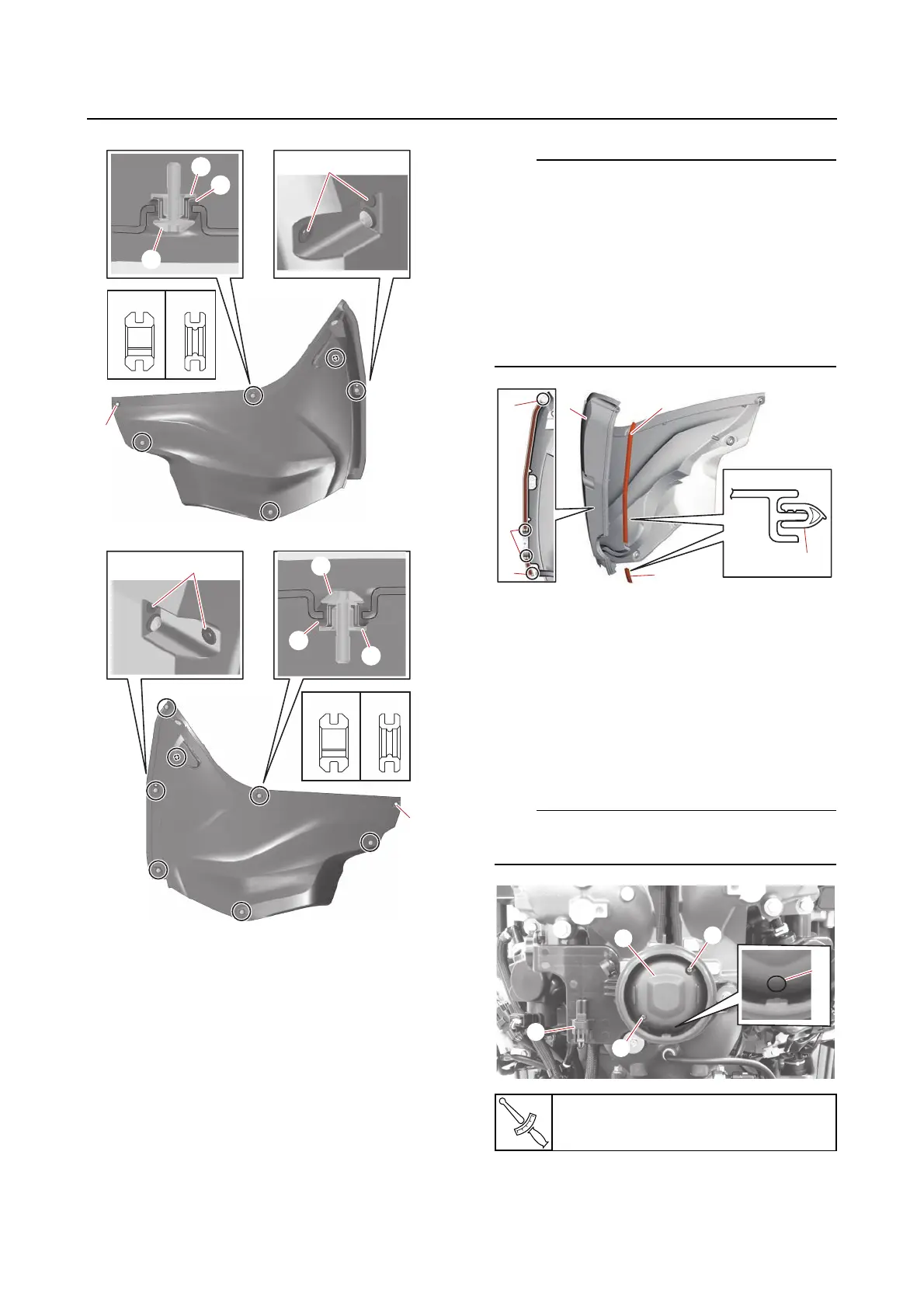

Bottom cowling (PORT and STBD)
A
B
5. Install:
• Rubber seal “1”, “2”
TIP:
• Align end of the rubber seals “1” and “2” with
the portion “a” of the bottom cowling (PORT)
“3”.
• Make sure that the rubber seals “1” and “2”
are not installed on the portion “b” of the
bottom cowling (PORT) “3”.
• Install the rubber seals “1” and “2” so that
the lip on the seal is pointing in the direction
shown.
Installing the propeller light bracket
1. Install:
•Bracket
•Holder
• Wire harness “a”
•Grommet
•Grommet
•Cover “1”
TIP:
Install the cover “1” so that the mark “b” is fac-
ing downward.
A. PORT
B. STBD
1
4
3
1
2
2
1
1
21
1
2
3
4
T
R
.
.
Cover screw “2”
0.9 N·m (0.09 kgf·m, 0.66 lb·ft)
a
2
1,2
1
3
b
b
1
2
2
a
b
